Eddy Current Separators have a conveyor belt system with a high-speed magnetic rotor at the end.The rotation speed of the magnets generates an induction field,creating a rapidly changing magnetic field, To cause a nonferrous metal to be temporarily magnetized.Causing them to be ejected.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ECS
-
Weight (KG):
-
3000 kg
-
Processing capacity:
-
as required
-
Gear Motor:
-
Nord
-
Belt:
-
Forbo Siegling
-
Bearing:
-
NSK
-
Application:
-
Nonferrous separation
-
Installation:
-
Engineer Guide
-
Recovery rate:
-
98-99%
-
After sale service:
-
Engineer Overseas Service
-
Certification:
-
CE
Quick Details
-
Production Capacity:
-
3000L/H
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
JSYY
-
Model Number:
-
ECS
-
Weight (KG):
-
3000 kg
-
Processing capacity:
-
as required
-
Gear Motor:
-
Nord
-
Belt:
-
Forbo Siegling
-
Bearing:
-
NSK
-
Application:
-
Nonferrous separation
-
Installation:
-
Engineer Guide
-
Recovery rate:
-
98-99%
-
After sale service:
-
Engineer Overseas Service
-
Certification:
-
CE

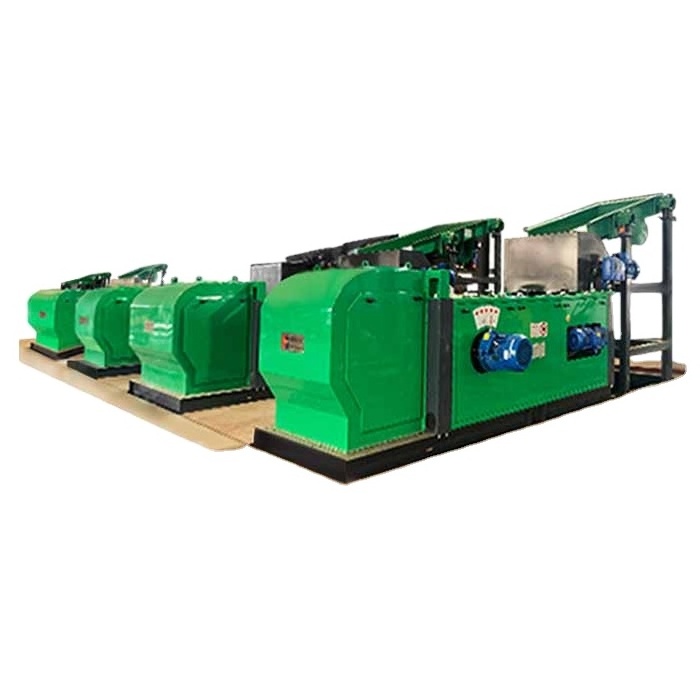

Eddy current non ferrous metal separator
How eddy current separators workEddy Current Separator consists of an external drum, an internal permanent magnetic rotor, adrive, and belt conveyor, that purify large bulk streams and separate non-ferrous metals for reuse.
|
No
|
Model
|
Belt Width(mm)
|
Power(kw)
|
Dimension(mm)
|
Weight(kgs)
|
|
1
|
ECS80P
|
800
|
6
|
4570 x 1230 x 1930
|
2460
|
|
2
|
ECS100P
|
1000
|
8.7
|
4570 x 1400 x 1930
|
2800
|
|
3
|
ECS120P
|
1200
|
8.9
|
4570 x 1600 x 1930
|
3590
|
|
4
|
ECS140P
|
1400
|
9.2
|
4570 x 1760x 1930
|
4200
|
|
5
|
ECS160P
|
1600
|
9.2
|
4570 x 2000 x 1930
|
4500
|
|
6
|
ECS180P
|
1800
|
9.2
|
4570 x 2060 x 1930
|
4700
|
|
7
|
ECS200P
|
2000
|
9.2
|
4570 x 2410 x 1930
|
5400
|
|
8
|
ECS220P
|
2200
|
9.9
|
4570 x 2610 x 1930
|
6100
|
Application field
The application fields of our products include waste plastic removal and sorting, PET bottle flake removal and aluminum removal, EPDM rubber removal, waste glass sorting and resource regeneration.
