Quick Details
-
Cable fiber count:
-
48core
-
Fiber type:
-
G652D Single Mode
-
Strength Member:
-
FRP
-
Installation:
-
Underground
-
Outer diameter (mm):
-
12.9
-
Weight (kg/km):
-
145
-
Sheath material:
-
MDPE
-
Loose tube:
-
Yes
-
Name:
-
direct buried armored cables GYFTA53
Quick Details
-
Brand Name:
-
SWOT
-
Model Number:
-
GYFTA53
-
Place of Origin:
-
Shanghai
-
Cable fiber count:
-
48core
-
Fiber type:
-
G652D Single Mode
-
Strength Member:
-
FRP
-
Installation:
-
Underground
-
Outer diameter (mm):
-
12.9
-
Weight (kg/km):
-
145
-
Sheath material:
-
MDPE
-
Loose tube:
-
Yes
-
Name:
-
direct buried armored cables GYFTA53

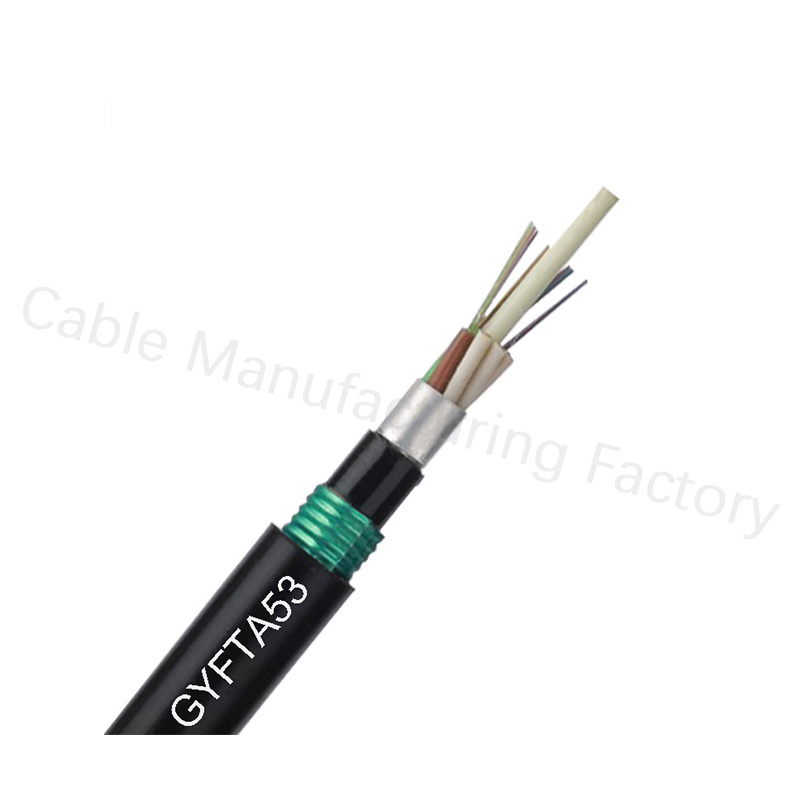

Stranded Loose Tube Non-metallic Strength Member Armored Cable （GYFTA53）
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
|
No. of cable
|
|
|
48
|
|
72
|
||||
|
Fiber Model
|
|
|
G.652D
|
|
|
||||
|
Design
(StrengthMember+Tube&Filler) |
|
|
1+5
|
|
1+6
|
||||
|
Central Strength Member
|
|
Material
|
FRP
|
|
|
||||
|
|
|
Diameter（±0.5）mm
|
1.5
|
|
2.1
|
||||
|
Loose Tube
|
|
Material
|
PBT
|
|
|
||||
|
|
|
Diameter（±0.06）mm
|
1.9
|
|
1.9
|
||||
|
|
|
Thickness（±0.03）mm
|
0.35
|
|
0.35
|
||||
|
|
|
The Max.Core NO./Tube
|
12
|
|
12
|
||||
|
Filler Rope
|
|
Material
|
PP
|
|
|
||||
|
|
|
Diameter（±0.1）mm
|
1.9
|
|
1.9
|
||||
|
|
|
NO.
|
1
|
|
0
|
||||
|
Moisture Barrier
|
|
Material
|
Polymer Coated Aluminum Tape
|
|
|
||||
|
|
|
Thickness（±0.05）mm
|
0.25
|
|
|
||||
|
Inner
Sheath |
|
Material
|
MDPE
|
|
|
||||
|
|
|
Thickness（±0.1）mm
|
0.9
|
|
|
||||
|
Armoring
|
|
Material
|
Polymer Coated Steel Tape
|
|
|
||||
|
|
|
Thickness（±0.05）mm
|
0.25
|
|
|
||||
|
Water Blocking Layer
|
|
Material
|
Filling Compound
|
|
|
||||
|
Outer Sheath
|
|
Material
|
MDPE
|
|
|
||||
|
|
|
Thickness（±0.2）mm
|
1.7
|
|
|
||||
|
Cable Diameter（±0.3）mm
|
|
|
12.9
|
|
13.4
|
||||
|
Cable Weight（±10）kg/km
|
|
|
145
|
157
|
|
||||
|
Min. bending radius
|
Without Tension
|
|
12.5×Cable-φ
|
|
|
||||
|
|
Under Maximum Tension
|
|
25.0×Cable-φ
|
|
|
||||
|
Temperature range
（℃） |
Installation
|
|
-20~+60
|
|
|
||||
|
|
Transport&Storage
|
|
-40~+70
|
|
|
||||
|
|
Operation
|
|
-40~+70
|
|
|
||||
Welcome to Shanghai Wanbao Optical Technologies Co., Ltd.We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products of SWOT include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
SWOT was established in 2012, and is growing rapidly. Our head office is in Shanghai, China. SWOT owns two factories. One is in Shenzhen , producing all kinds of fiber optical cable. Another is in Zhejiang province, producing PLC, FWDM and other products. We have more than 100 employees and controls the quality constantly and strictly in order to give the best products to the users.We also promise all the features and advantages are the high technology, which are full of
professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Packaging detail:
2km / export wooden drum (your request is available )
Remark：
Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Note：
1. Storage/Operating Temperature：-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
1. Storage/Operating Temperature：-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.
detailed information.
