Quick Details
-
Roll Ratio(Front/Back):
-
1:1.21
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shengsai
-
Voltage:
-
A.C.380V 50HZ
-
Dimension(L*W*H):
-
2600*1300 *1300mm
-
Year:
-
2020
-
Power (kW):
-
25
-
Weight (KG):
-
2300 KG
-
Name:
-
two roller Mill
-
Application:
-
Rubber Mixing Compounding
-
Roller:
-
Chilled Alloy Cast Iron
-
Roller Diameter:
-
360mm
-
Mixed capacity:
-
20~35kg
-
Function:
-
Compound Mixing
-
Roller Length:
-
900mm
-
Working Linear Speed of Front Roll:
-
19.3M/Min
-
Driving Motor Power:
-
25KW
-
Gap adjustment:
-
Manual
Quick Details
-
Diameter of Roll(mm):
-
360 mm
-
Rotation Speed of Front Roll(rpm):
-
14 - 17 rpm
-
Length of Roll(mm):
-
900 mm
-
Roll Ratio(Front/Back):
-
1:1.21
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shengsai
-
Voltage:
-
A.C.380V 50HZ
-
Dimension(L*W*H):
-
2600*1300 *1300mm
-
Year:
-
2020
-
Power (kW):
-
25
-
Weight (KG):
-
2300 KG
-
Name:
-
two roller Mill
-
Application:
-
Rubber Mixing Compounding
-
Roller:
-
Chilled Alloy Cast Iron
-
Roller Diameter:
-
360mm
-
Mixed capacity:
-
20~35kg
-
Function:
-
Compound Mixing
-
Roller Length:
-
900mm
-
Working Linear Speed of Front Roll:
-
19.3M/Min
-
Driving Motor Power:
-
25KW
-
Gap adjustment:
-
Manual

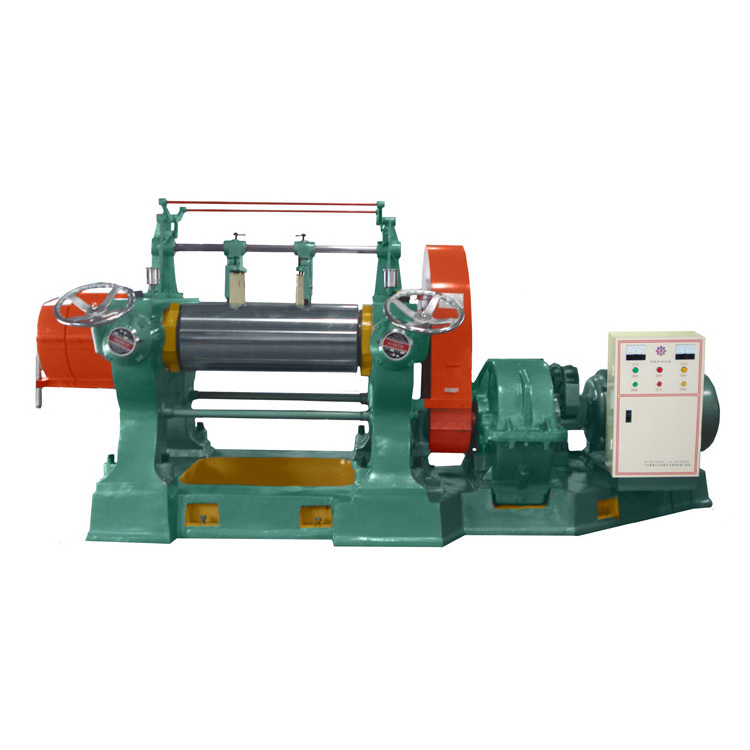

XK-360 12 inch Silicone Rubber Two Roller Mixing Mill Machine
we supply silicone rubber machines with complete solutions including mixing mill, dispersion kneader, cutting machine, compression molding machine, injection molding machine, extrusion line, molds and raw material formulas.
Application: it is mainly used for various silicone rubber mixing, sheeting.
Capacity : 20-35KG/batch
Main specification :
Roller Diameter & Length : 360mm*900mm
Roller material : Alloy chilled cast iron, work surface depth of chilled10-24mm, with surface chrome plated.
Front roll linear speed : 12r/min
Maximum roller gap : 1-5 mm
Roller speed ratio : 1:1.2
Main motor power: 25 KW
Power supply : A.C. 380V, 3 phase, 50HZ
Motor speed: 980RPM
Roller regulating mode : manual adjusting
Safety device: equipped with emergency stop switch, mushroom button 2 pieces
Dimension : 3800*1700 *1700mm
Weight : approximately 6,500KG
