Quick Details
-
Product name:
-
HDMI Video Wall Controller
-
Case:
-
Metal Case
-
HDMI Version:
-
HDMI v1.4
-
Input Ports:
-
1 x HDMI Type A Female
-
Output Ports:
-
12 x HDMI Type A Female
-
Resolution:
-
1080P@60Hz, 4K@30Hz
-
Remote Control:
-
Yes
-
Certificate:
-
FCC, CE, RoHS
-
Warranty:
-
2 Year
Quick Details
-
Brand Name:
-
Neutral or OEM
-
Model Number:
-
T-7034
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Video Wall Controller
-
Case:
-
Metal Case
-
HDMI Version:
-
HDMI v1.4
-
Input Ports:
-
1 x HDMI Type A Female
-
Output Ports:
-
12 x HDMI Type A Female
-
Resolution:
-
1080P@60Hz, 4K@30Hz
-
Remote Control:
-
Yes
-
Certificate:
-
FCC, CE, RoHS
-
Warranty:
-
2 Year

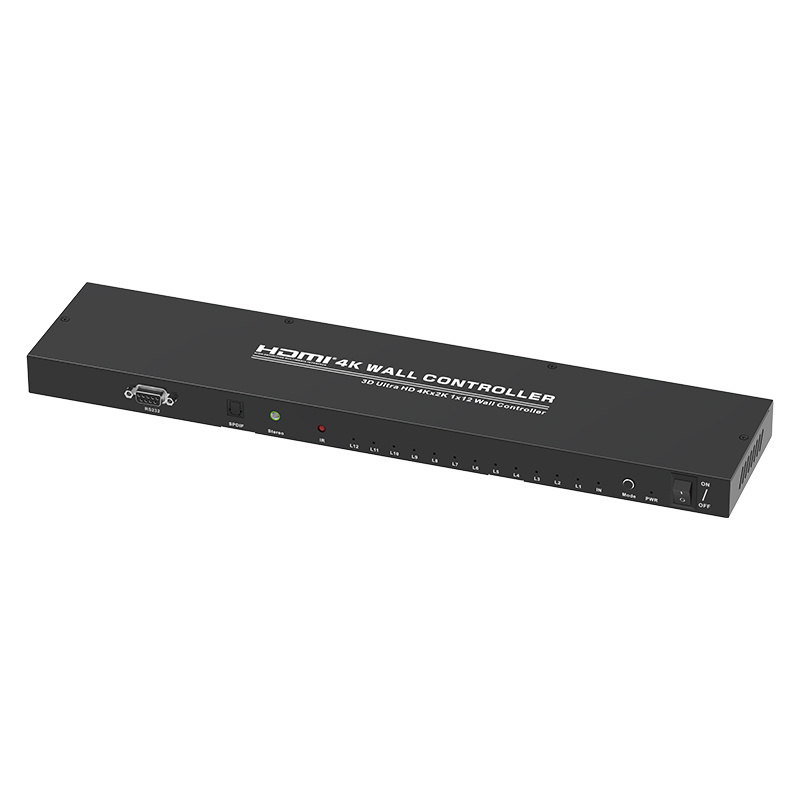

4K HDMI Video Wall Controller 3x4 4K Video Wall Processor HDMI Multiviewer Video Wall 3x4 Switch
1.0 INTRODUCTION
The 4K 3x4 video wall controller,support 1 way HDMI input and 12 HDMI output,the main function is to divide a complete HDMI HD image signal 12 blocks and assign to 12 video display unit(such as rear projection unit,LCD TV,etc.)Complete with 12 HDMI high-defintion video display units to form a large dynamic image screen.
2.0 FEATURES
1.Support HDMI1.4/HDCP1.4;
2.Input resolution include:1080p 25/30/50/60Hz,4Kx2K 24/30Hz;
3.Output resolution include:1080p 60Hz;
4.Input format:RGB/YUV 24bit; Output format: RGB444 24bit;
5.Support RS232 control;
6.Easy to operate,plug and play;
7.Need DC/5V power adapter.
3.0 PACKAGING ACCESSORIES:
When first unpacking your product please check to see if the following items are included:
1.HDMI 3x4 Wall Controller---------------------1 PCS
2.5V Power Supply---------------------------------1 PCS
3.Remote Control------------------------------------1PCS
4.User Manual----------------------------------------1PCS
| HDTV Resolutions | 4K/1080p/720p/576p/576i/480p/480i |
| Audio | DTS/doby/LPCM |
| HDMI Version | 1.4v |
| HDCP Version | 1.4v |
| Power adapter | Input:100V-240V(50-60Hz) Output:5V/2A |
| Max bandwidth | 250MHz |
| Max baud rate | 10.2Gbps |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤10m AWG26 HDMI standard cable |
| Output CAT cable distance | ≤60m Standard CAT6 cable |
| Max working current | 1800mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5% to 90%RH (No Condensation) |
| Dimension (L x W x H) | 200x94x21.5 (mm) |
The acces
1. UPS / DHL / FEDEX /EMS / TNT and so on (door to door)
2. For Air Shipment, Please choose your favorite
shipping method according to your detail requirement
3. The shipping discount is different in different seasons and depend on different weight, we will choose the cheapest and safest way according to your detail quantities
4. Normally, it will take around 3-7days from China to
the
destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Samples within 1-3 days
2. Wholesales Orders : 5-7 days according various quantities
3. OEM 10-12 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods within the warranty period, we will repair them or send you new ones for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it just to confirm your problem, then we will send you free new goods instead.
