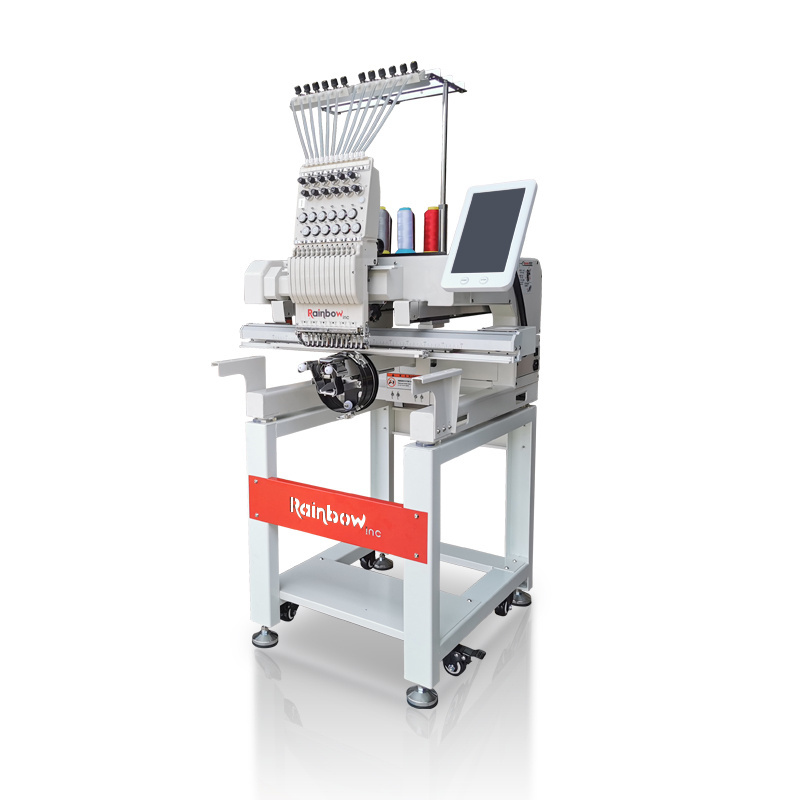

Rainbow embroidery machine RBE4060-A12 has unique design which patent protected. All machine frame and housing was made from galvanized steel which is sturdy and durable. Its structure is still firm after many years using.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
RainbowEmb
-
Overall Dimensions:
-
113*93*95 cm
-
Power:
-
250w
-
Worktable Size:
-
400*600mm
-
Weight (KG):
-
180 KG
-
Product name:
-
Multineedle T-Shirt Sewing Computer Automatic Embroidery Machine
-
Head:
-
1/2/4/8
-
Needle:
-
9/12/15 Needles
-
Language:
-
13 Languages
-
Max. speed:
-
1200prm
-
Area:
-
400m*600mm
-
Keywords:
-
Embroidry Machine
-
Application:
-
Cap/t-shirt/Flat/3D/Towel/Leather/Jacket Embroidery
-
Memory Capacity:
-
20 Million Needles
-
Advantage:
-
High Efficiency Automatic Working
Quick Details
-
Maximum Speed:
-
1200 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
200mm
-
Place of Origin:
-
China
-
Brand Name:
-
RainbowEmb
-
Overall Dimensions:
-
113*93*95 cm
-
Power:
-
250w
-
Worktable Size:
-
400*600mm
-
Weight (KG):
-
180 KG
-
Product name:
-
Multineedle T-Shirt Sewing Computer Automatic Embroidery Machine
-
Head:
-
1/2/4/8
-
Needle:
-
9/12/15 Needles
-
Language:
-
13 Languages
-
Max. speed:
-
1200prm
-
Area:
-
400m*600mm
-
Keywords:
-
Embroidry Machine
-
Application:
-
Cap/t-shirt/Flat/3D/Towel/Leather/Jacket Embroidery
-
Memory Capacity:
-
20 Million Needles
-
Advantage:
-
High Efficiency Automatic Working
Products Description
|
Model:
|
RBE4060-A12
|
Needles:
|
9/12/15
|
|
Control system:
|
Dahao/Raynen
|
Cap frame unit:
|
270 degree rotate
|
|
Max embroidery size:
|
40*60 cm
|
Power:
|
250W
|
|
Maximum Speed:
|
1200 RPM
|
Gross weigth:
|
210 kg
|
|
Memory Capacity:
|
20 million stitches
|
Package dimension:
|
113*93*95 cm
|
▲
Machine frame and housing
▲
Servo motor, belt and bearing
Rainbow embroidery machine comes with imported servo motor, belt and bearing which make machine have accurate movement on X and Y axis. To achieve perfect embroidery works.
▲
Guide rails
Rainbow embroidery machine has
suspension type design for Y axis. Make more space on bottom of machine, big embroidery items can be done easily and barrier free.
▲
Machine head
9/12/15 needles machine heads are available. One screw switch for one color thread adjustment. Tightness of thread can be adjusted easily.
▲
Anti shaking mat
Rainbow embroidery machine has TPU soft anti-shaking mat between machine and machine stand. Screw crossed the mat and fixed machine and stand. It make machine work more stable and small noise.
▲
Laser positioning and lamp
We installed laser device on Rainbow embroidery machine for easy finding starting point. And LED lamp for night working.
▲
Anti-wind pipe
Rainbow embroidery machine comes with anti-wind pipes for each color thread. To avoid thread
twined with each other.
▲
Control screen
Rainbow technical team developed use-friendly software for our customers. We will provide detailed support videos and user manual with machine together. and engineer supporting if customers have any question about machine installation or operation.
▲
Machine stand
We provide easy moving machine stand. There are 4 wheels on the bottom of machine stand. To make machine be easy to move to other place and easy to fix on ground.
▲
Concave type machine head
Concave type machine head leave more space for
brim of cap. You can embroidery the caps which have long brim easily.
We focused on all details of our product
To achieve a
perfect
embroidery machine
After-sales service and technical support
Rainbow engineers team provide detailed support videos and user manual. Make customers master the machine quickly. L
ifelong technical support if customers have any question of machine installation or operation.
Samples
Product packaging
▲
Each of Rainbow embroidery machine should be inspected well before delivery, Machine was fixed on bottom of case, all parts were packaged by soft foam.
▲
Rainbow embroidery machine was packaged in exported standard
non-fumigation wooden case. RBE4060-A12 package dimension
113*93*95 cm, gross weight 210 kg.
Rainbow RBE2235-A12 embroidery machine:
22*35cm max working size,
9/12 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
9/12 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
Rainbow RBE4050-B12 embroidery machine:
40*50cm max working size for each head,
9/12/15 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
9/12/15 needles can be installed,
cap attachment, garment hoops and flat embroidery table are all available.
