Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
H1600*W700*1100mm
-
Weight:
-
650kg
-
Warranty:
-
2 years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
-
SHAPE:
-
TULIP,LOTUS,FLANGING CUP,ETC.,
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUI XIN
-
Model Number:
-
RXM-A-1
-
Voltage:
-
220v/380v
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
H1600*W700*1100mm
-
Weight:
-
650kg
-
Warranty:
-
2 years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
-
SHAPE:
-
TULIP,LOTUS,FLANGING CUP,ETC.,
Hot Selling machine
machine for small business
"This could be the most important information you ever read if you are looking to start your own business“
Overbalance new machine for small business / small manufacturing machines

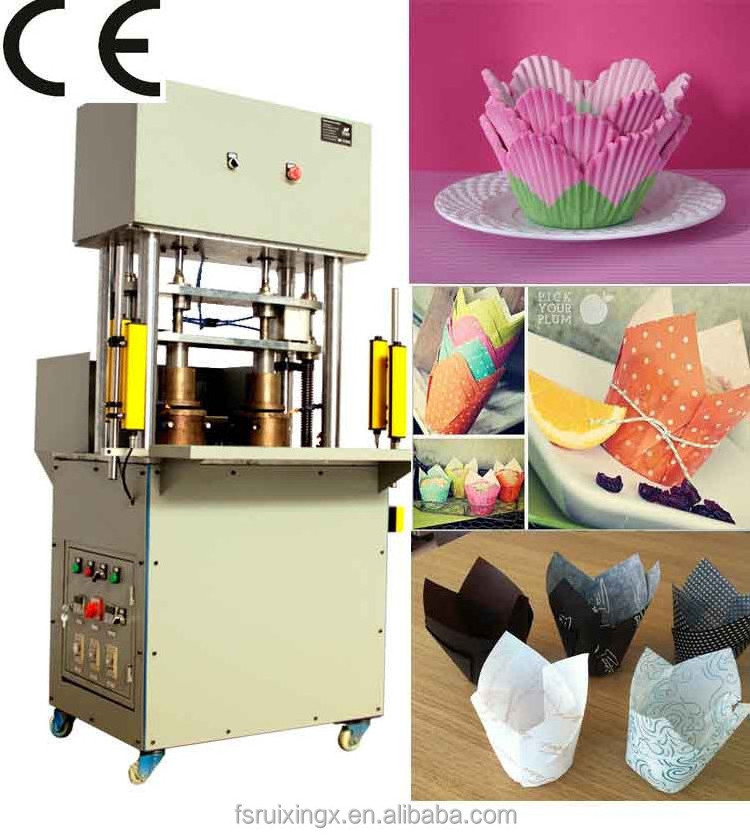

Double Cake Cup Machine Model:RXM-A-1
1. Simple and flexible, easy to operate, nice appearance. The machine uses compressed air driving, PC chip control, of stable performance, energy saving and environmental protection.
2. AC220V,power less than 1500W,air pressure 0.5~0.6mpa
3. Automatic thermostat & heating control, safe and convenient tulip cups, lotus cups, big flanging cups. The processing size of machine can be specially made according to customers’ requirements.
4. Each machine is with two sets of molds, which improves the efficiency and productivity of machine (mold size can be the same of different to produce at the same time.)
5. Manually put the paper into the mold positioning ring. It’s of PC chip control, automatic trigger control, double photoelectric protection system to ensure the safety. Pneumatic molding, auto heat setting, and the system automatically pop up after forming and cups fall into the containing box.
6. Max cup spread size …………round 200mm
…………square 200*200mm
7. Paper thickness …………40-180g/m2
8. Outline dimension …………H1600xW700x1100mm
9. Machine weight …………650kg
For the video please visit below link:
https://www.youtube.com/watch?v=NtxqQltDX-w&feature=youtu.be
li
Tulip muffin paper forming mold
Lotus muffin cup paper forming mold
Edge-roll muffin cup paper forming mold
Chrysanthemum muffin cup paper forming mold
Other type muffin cup paper foming mold
This machine also can make for lotcus cups,big flanging cups,hign flanging cups,etc., various kind of sheet forming baking cups.
So if you have interested in,Please feel free to contact me.Thanks in advance
