Quick Details
-
Voltage:
-
220V, 220V, 380V, 415V
-
Dimension(L*W*H):
-
4100*3300*2300mm
-
Power (kW):
-
5.5KW
-
Weight (KG):
-
1600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Name:
-

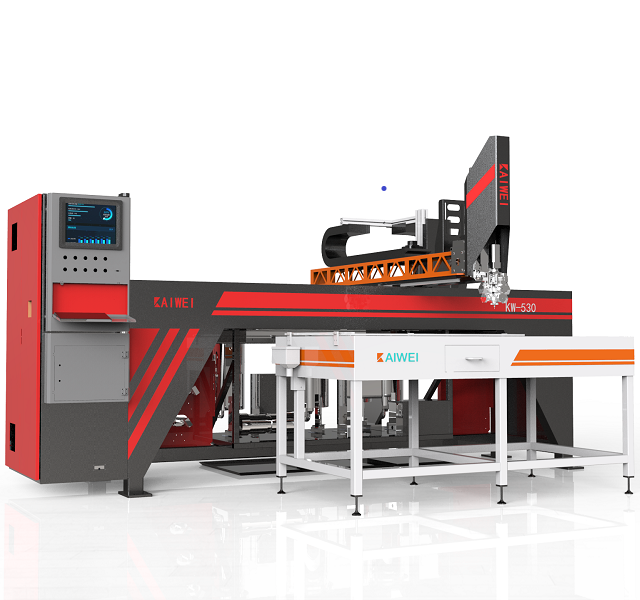

pu gasket making machine
-
Application:
-
Control cabinet/ junction box Industry
-
Weight:
-
1300 Kg
-
Certification:
-
ce, ISO9001
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Russia, Thailand, Chile, UAE
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KAIWEI
-
Machine Type:
-
Fully automatic machinery
-
Voltage:
-
220V, 220V, 380V, 415V
-
Dimension(L*W*H):
-
4100*3300*2300mm
-
Power (kW):
-
5.5KW
-
Weight (KG):
-
1600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Name:
-
pu gasket making machine
-
Application:
-
Control cabinet/ junction box Industry
-
Weight:
-
1300 Kg
-
Certification:
-
ce, ISO9001
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Russia, Thailand, Chile, UAE
-
Marketing Type:
-
New Product 2020
Product Description
Main Parameters
|
Item
|
Kai Wei
|
KAIWEI
|
|
|
Model
|
Model
|
KW-510(standard)
|
|
|
System/Control
|
operating system
|
KW510 based Win10
|
|
|
|
interface
|
touch screen
|
|
|
|
operating method
|
touch screen/keyboard/button
|
|
|
|
controller
|
Kai Wei
|
|
|
|
sreen size
|
12.1''
|
|
|
mixing head
|
mixing head model
|
KW-700
|
|
|
|
gasket width
|
5-30mm
|
|
|
|
Clean method
|
high pressure water
|
|
|
|
mixing ratio(A:B)
|
1:10~10:1
|
|
|
pump
|
pump
|
Barmag
|
|
|
|
pump size
|
A：0.6cc/r， B：0.1cc/r
|
|
|
Material tank
|
tank type
|
air pressure tank
|
|
|
|
volume
|
A: 40L B: 40L
|
|
|
|
tank stirring
|
A: Yes B: No
|
|
|
|
Tank refill
|
manual/auto
|
|
|
|
material-refill station
|
optional
|
|
|
|
air-refill method
|
manual/auto
|
|
|
Mechanical frame
|
mechanical frame
|
3 axis linear mechanical arm
|
|
|
|
speed
|
0-250mm/s
|
|
|
|
rail
|
HIWIN(Taiwan)
|
|
|
|
gear-rack
|
HIWIN(Taiwan)
|
|
|
|
servo motor
|
Panasonic
|
|
|
|
speed reducer
|
BGT
|
|
|
Air
|
dry compressed air
|
≥6bar
|
|
|
Water
|
clean tap water
|
tap water
|
|
FAQ
1. Do you have any customers or agents overseas?
Sure. We have many customers and agents around the world. Such as Russia, India, Malaysia, Vietnam, Thailand, UAE, KSA, Chile,etc. Within immense export experiences, we are still expanding the overseas market.
2. Will the package be damaged during trasportation?
Our packaging is simple packed by PET, but it’s safe and tight enough. We have shipped to over 20 countries and no problem. If there are any damage during the transportation, we will shoulder the responsibility.
3. Is it easy to install and operate?
Yes our machine is very easy to install and operate. Our engineers will teach you on line or at site. Detailed training videos
and manual operation will be sent to you for reference. 95% customers can learn to use by themselves.
4. What about the after-sales service?
We have a professional after-sales team. The warranty of the machine is 12 months after installation. And during the warrranty, weprovide after-sales service by charging free.
Sure. We have many customers and agents around the world. Such as Russia, India, Malaysia, Vietnam, Thailand, UAE, KSA, Chile,etc. Within immense export experiences, we are still expanding the overseas market.
2. Will the package be damaged during trasportation?
Our packaging is simple packed by PET, but it’s safe and tight enough. We have shipped to over 20 countries and no problem. If there are any damage during the transportation, we will shoulder the responsibility.
3. Is it easy to install and operate?
Yes our machine is very easy to install and operate. Our engineers will teach you on line or at site. Detailed training videos
and manual operation will be sent to you for reference. 95% customers can learn to use by themselves.
4. What about the after-sales service?
We have a professional after-sales team. The warranty of the machine is 12 months after installation. And during the warrranty, weprovide after-sales service by charging free.
