Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
HAODONG
-
Model Number:
-
HD242
-
Product name:
-
Ceramic Infrared heater for car painting oven
-
Lifespan:
-
above 11000hrs
-
shap:
-
square
-
Shell:
-
gray cast iron
-
Upper cover:
-
stamped stainless iron
-
Nozzle:
-
brass
-
inner:
-
cordierite honeycomb plates with catalyst
-
Fuel:
-
NG,LPG
-
working pressure range LPG:
-
2800-5000pa
Quick Details
-
Power:
-
9.4KW/H
-
External Size:
-
840*130*175mm
-
Internal Size:
-
840*130*175mm
-
Voltage:
-
220V
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
HAODONG
-
Model Number:
-
HD242
-
Product name:
-
Ceramic Infrared heater for car painting oven
-
Lifespan:
-
above 11000hrs
-
shap:
-
square
-
Shell:
-
gray cast iron
-
Upper cover:
-
stamped stainless iron
-
Nozzle:
-
brass
-
inner:
-
cordierite honeycomb plates with catalyst
-
Fuel:
-
NG,LPG
-
working pressure range LPG:
-
2800-5000pa

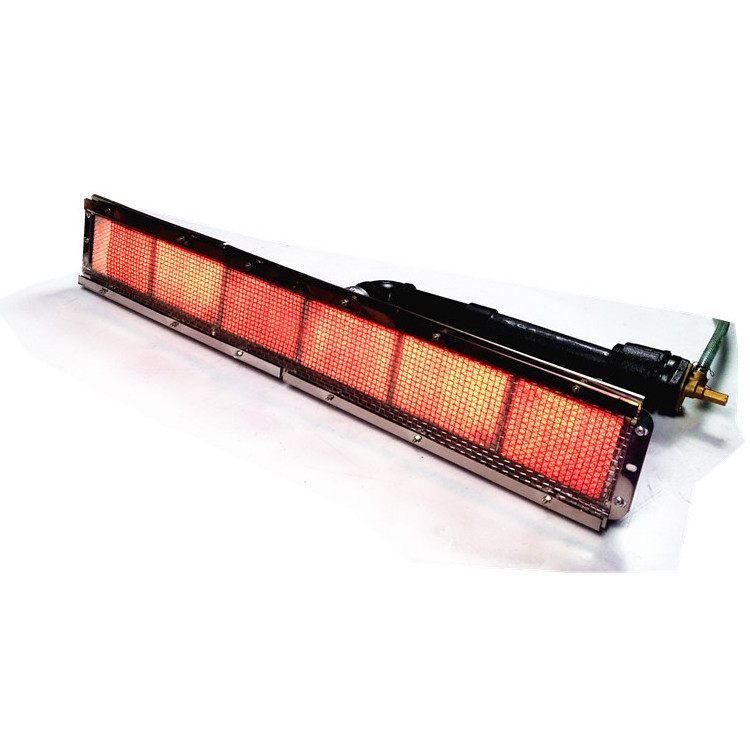

Product Name: Ceramic Infrared heater for car painting oven HD242
About us:
---Now Haodong Technology is the first and only manufacturer in China who apply rare-earth catalytic combustion technology in infrared burner&heater.
After coated with processed black rare-earth catalyst on the ceramic surface, the energy-transfer rate goes up greating, can save 20% energy than non-catalytic type. At the same time, it prolongs the uselife of ceramic plate.
Why do you choose ceramic Infrared heater ???
- Saving 20% energy than common gas burner.
- Friendly to environment.
- Long useful time: ≥11000hr
- Completed thermostat controlling system
Specification and Models of Ceramic Infrared heater for car painting oven
:
|
MODEL |
Dimension |
Weight |
GasType |
Heat Output |
Consumption |
||
|
mm |
kg |
KW/h |
Kcal/hr |
NG(m3/h) |
LPG(kg/h) |
||
|
HD242 |
860*130*175 |
11.7 |
NG/LPG |
9.4 |
8120 |
0.75 |
0.68 |
Detail photos -- Ceramic Infrared heater for car painting oven HD242
Whole system
We have three accessoreis for this burners:
The technical parameters of Ceramic Infrared heater for car painting oven
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
|
Light-off temperature |
≤350 |
|
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
|
Baking temperature range |
30---550 |
|
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
Comparison table for all kinds of energy consumption
|
Furnace type
Parameters |
Electronic cooker
|
Oil furnace |
Coal-fired furnace
|
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
|
Temperature |
180 |
180 |
180 |
180 |
|
Energy consumption
|
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
|
Heating time
|
20 minutes
|
40 minutes |
90 minutes |
5-8 minutes |
Application for Ceramic Infrared heater for car painting oven HD242
