Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XGVAC
-
Model Number:
-

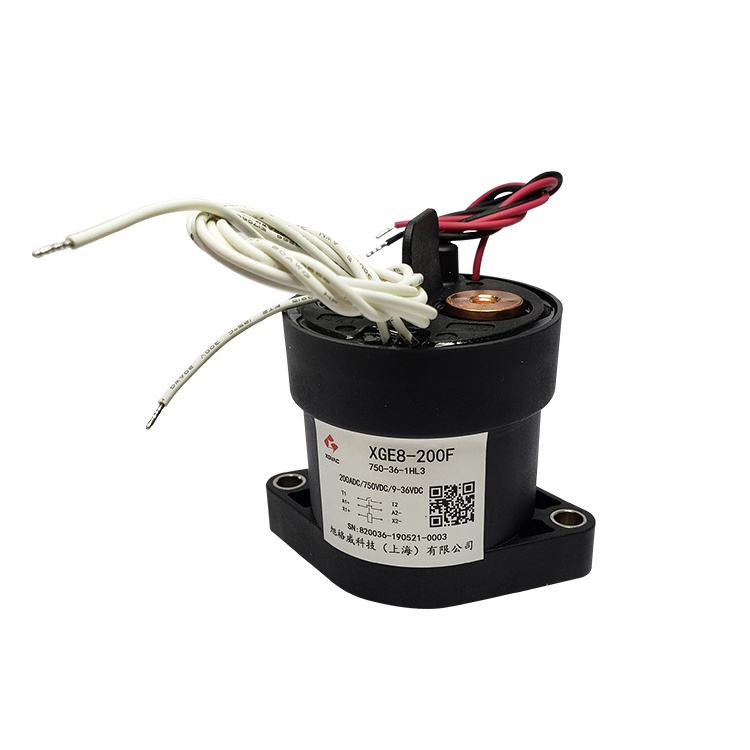

XGE8-200F
-
Product Name:
-
DC contactor
-
Color:
-
Black Color
-
Size:
-
80.5*58.2*76.8mm
-
Contact structure:
-
1H
-
Rated current:
-
DC 200A
-
Rated voltage:
-
12-750VDC
-
Maximum switching current:
-
1000A 400VDC(More than 10 times)
-
Maximum switching voltage:
-
1000VDC
-
Temperature:
-
-40~+85
-
Weight:
-
450g
Quick Details
-
Electricity Type:
-
DC
-
Main Circuit Rating Voltage:
-
12v/24v
-
Main Circuit Rating Current:
-
200a
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XGVAC
-
Model Number:
-
XGE8-200F
-
Product Name:
-
DC contactor
-
Color:
-
Black Color
-
Size:
-
80.5*58.2*76.8mm
-
Contact structure:
-
1H
-
Rated current:
-
DC 200A
-
Rated voltage:
-
12-750VDC
-
Maximum switching current:
-
1000A 400VDC(More than 10 times)
-
Maximum switching voltage:
-
1000VDC
-
Temperature:
-
-40~+85
-
Weight:
-
450g
Product Description
| Exterior | Name: | High voltage DC contactor |
| Brand: | XGVAC | |
| Material: | Plastic, Ceramic, Ironware | |
| Shape: | Square | |
| Colour: | Black | |
| Characteristic: | Vacuum brazed ceramic seal | |
| Size: | 80.5*58.2*76.8mm | |
| Contact | Contact structure: | 1H |
| Contact resistance: | <0.5mΩ | |
| Contact pressure drop: | 0.1VD | |
| Overload cut off | 700A 400VDC(MORE THAN 40 TIMES) | |
| Reverse cut | 200A 400VDC(MORE THAN 1000 TIMES) | |
| Rated current: | DC 250A | |
| Maximum switching current: | 1000A 400VDC(MORE THAN 10 TIMES) | |
| Maximum switching voltage: | 1000VDC | |
| Coil | Rated control voltage: | DC 9-36V |
| Pull-in voltage: | Below 75% of voltage | |
| Release voltage: | More than 5% of voltage | |
| Power consumption: | 7.7W | |
| Action | Pull-in time: | Below 40ms |
| Release time: | Below 20ms | |
| Insulation | Between coil and contact: | More than 1000MΩ |
| Between contacts of the same level: | More than 1000MΩ | |
| Withstand voltage | Between coil and contact: | AC 4000V 1 minute |
| Between contacts of the same level: | AC 3000V 1 minute | |
| Auxiliary switch | Auxiliary electric shock form | Single Pole Single Throw-Normally Open |
| Load rating | 2A 30VDC/3A 125VAC | |
| Minimum load | 100mA 8VDC | |
| More | Mechanical life (3600 times/hour): | 1 million times or more |
| Ambient temperature: | -40~+85 o C | |
| environment humidity: | 5~85%RH | |
| weight: | 450g |
