Quick Details
-
Productivity:
-
15m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Minle
-
Weight:
-
3000 kg
-
Dimension(L*W*H):
-
4500*2100*3420
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
According to Customers requirements
-
Product name:
-
mobile concrete mixer with pump
-
Keyword:
-
mobile concrete mixer with pump
-
Concrete pump type:
-
mobile concrete mixer with pump
-
Capacity:
-
15m3/h
-
Max aggregate size:
-
20mm
-
Engine:
-
YUCHAI
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
100m
-
Max. horizontal conveying distance:
-
200m
-
Productivity:
-
15m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Minle
-
Weight:
-
3000 kg
-
Dimension(L*W*H):
-
4500*2100*3420
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
According to Customers requirements
-
Product name:
-
mobile concrete mixer with pump
-
Keyword:
-
mobile concrete mixer with pump
-
Concrete pump type:
-
mobile concrete mixer with pump
-
Capacity:
-
15m3/h
-
Max aggregate size:
-
20mm
-
Engine:
-
YUCHAI

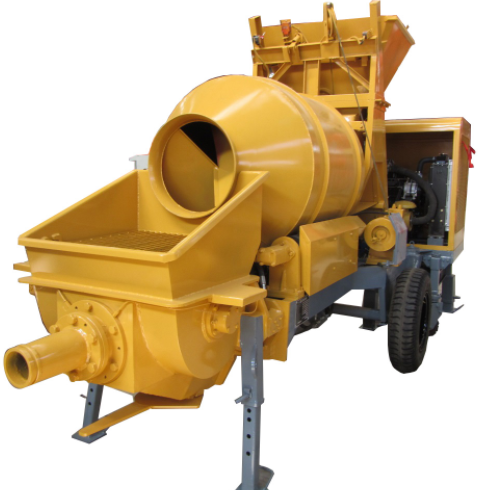

Factory supply 15m3/h diesel Self Loading Mobile Concrete Mixer/concrete Mixer Pump/concrete Mixer With Pump
Contact: Sara Mobile/wechat/whatsapp:86-15866001919
Choose MINLE as partner,let us make every effort to support your custruction works!
mobile concrete mixer with pump integrates concrete feeding, mixing and conveying functions seamlessly in one concrete pump machine, the concrete mixer pump can be driven by diesel engine or electric motor as your choice. It is widely used for continuously concrete mixing and conveying through high hydraulic pressure along the pipeline in such applications as housing building, bridge or tunnel construction. MINLE brand concrete mixer pump is made with high wear and strong corrosion resistant chrome alloy steel to greatly improve the product performance, and is optimized by the electric proportional control buffering, pressure difference sensing and reversing technology to decrease high pressure oil pump reversing time. Our concrete mixer pump is intelligently controlled to achieve the perfect and high efficient concrete mixing and conveying, it features compact structure, stable concrete pumping, energy saving, high efficiency, flexible movement and easy operation, etc.
Technical parameters:mobile concrete mixer with pump
|
Item |
HBTS15-8-60R |
|
Max Theoretical Concrete Output (m ³ /h) |
15 |
|
Max Concrete outlet Pressure (Mpa) |
8 |
|
Concrete slump (mm) |
100-200 |
|
Aggregate Size (mm) |
30 |
|
Power (KW) |
Diesel motor 60 |
|
Conveying Cylinder Diameter (mm) |
110/1000 |
|
Concrete Cylinder Diameter (mm) |
160/1000 |
|
Max Conveying Distance (vertical Height/Horizontal Distance) (m) |
80/400m |
|
Pipe Cleaning Mode |
Washing |
|
Total Weight (kg) |
3000 |
|
Discharging capacity |
250L |
1.Power system mobile concrete mixer with pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted. Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc
2.Electronic control mobile concrete mixer with pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system mobile concrete mixer with pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4.Pumping system mobile concrete mixer with pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication System mobile concrete mixer with pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System mobile concrete mixer with pump
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
Our service
12 months warranty.
We guarantee for free replacement or repair the key componentd which is ineffcient function or performance caused by poor material or technique.
(Damage caused by improper use and natural aging are not covered under the guarantee. )
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory. We can design and manufacture products with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q4: How many types of mobile concrete mixer with pump you have?
A: The motor ,diesel or electric.
If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ.
If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai?
Q5: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.
Q6: How long and high you want to pump?
A: Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q7: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
Contact us for more details!
