Two sets and more forklifts are packed in one container,all wheels fixed with corner block, tightened with frap rope,etc.
More sets will save shipping cost,like 3 ton models,1*40 GP Container will load 5 sets
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TAVOL
-
Fork Length:
-
1220m
-
Fork Width:
-
122m
-
Overall Dimensions:
-
3970m*1230m*2110m
-
Weight (KG):
-
4290 kg
-
Rated Loading Capacity(kg):
-
3200
-
Load Center Distance(mm):
-
500
-
Drive Form:
-
Diesel
-
Fork Lifting Height(mm):
-
3000
-
Min. Turning Radius(mm):
-
2530
-
Length (includingFork)(mm):
-
3970
-
Vheel Base(mm):
-
1775
-
Front Wheel Track(mm):
-
1000
-
Rear Vheel Track(mm):
-
970
-
Fork Width(mm):
-
122
Quick Details
-
Min. Lifting Height:
-
3m
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAVOL
-
Fork Length:
-
1220m
-
Fork Width:
-
122m
-
Overall Dimensions:
-
3970m*1230m*2110m
-
Weight (KG):
-
4290 kg
-
Rated Loading Capacity(kg):
-
3200
-
Load Center Distance(mm):
-
500
-
Drive Form:
-
Diesel
-
Fork Lifting Height(mm):
-
3000
-
Min. Turning Radius(mm):
-
2530
-
Length (includingFork)(mm):
-
3970
-
Vheel Base(mm):
-
1775
-
Front Wheel Track(mm):
-
1000
-
Rear Vheel Track(mm):
-
970
-
Fork Width(mm):
-
122
Product Description

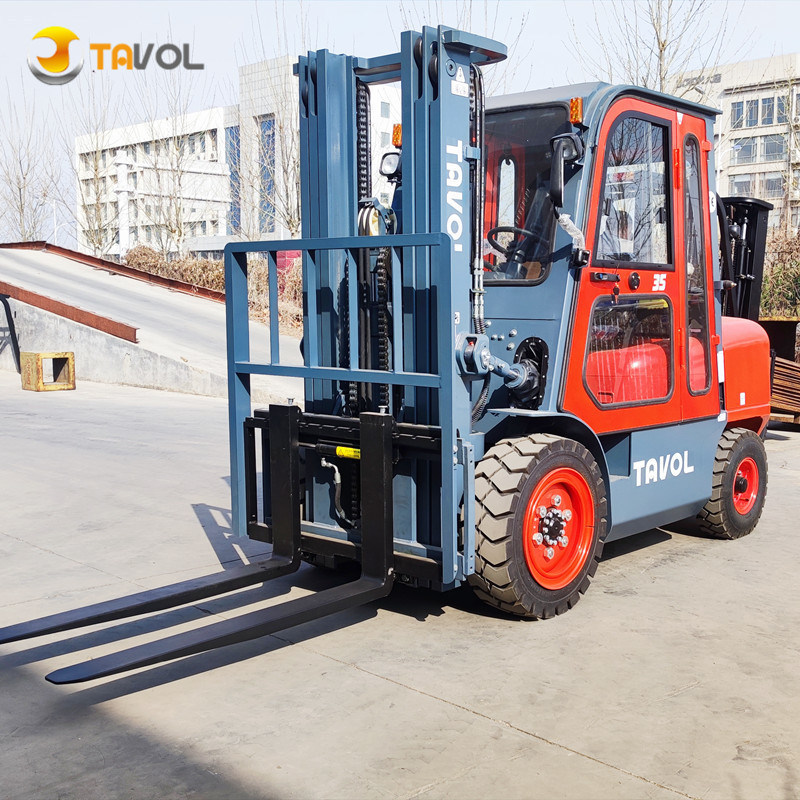

3 Ton Hydraulic Diesel Forklift Truck Diesel Fork Lift Truck Lifting Equipment 4m4.5m Lifting Height Material Handling
TAVOL F orklift
* Improve material operation efficiency, reduce personnel labor intensity, and improve working conditions; save labor and improve labor productivity; according to statistics: a forklift can replace the physical labor of 8 to 15 loading and unloading workers.
*Shorten operating time, speed up material turnover, and improve production efficiency.
* Make full use of the space. Saves warehouse space. Using a forklift, goods can be stacked higher and the warehouse volume utilization rate can be increased several times.
CLIENT FEEDBACK
TAVOL forklift in Mexico
TAVOL forklift in
Turkey
TAVOL forklift in Saudi Arabia
TAVOL forklift in Philippines
TAVOL forklift in Algeria
TAVOL forklift in Germany
Product Paramenters
|
Model
|
|
CPC20/ CPCD20
|
CPC25/ CPCD25
|
CPC30/ CPCD30
|
CPC35/ CPCD35
|
CPC40/CPCD40
|
CPCD50
|
|
|
Rated Loading Capacity(kg)
|
|
2000
|
2500
|
3200
|
3600
|
4000
|
5000
|
|
|
Load Center Distance(mm)
|
|
500
|
500
|
500
|
500
|
500
|
500
|
|
|
Max Lifting Speed (Full load)(mm/h)
|
|
400
|
400
|
475
|
450
|
390
|
375
|
|
|
Max Driving Speed (Empty/Full load)(km/h)
|
|
17/19
|
17/19
|
18/20
|
18/20
|
18/20
|
20/24
|
|
|
Fork Lifting Height(mm)
|
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
|
|
Mast Tilt Angle (Forward and Backward)
|
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
6°/12°
|
|
|
Min. Turning Radius(mm)
|
|
2450
|
2450
|
2530
|
2540
|
2720
|
3000
|
|
|
Min. Ground Clearance(mm)
|
|
110
|
110
|
135
|
135
|
145
|
170
|
|
|
Length (Including Fork)(mm)
|
|
3605
|
3605
|
3970
|
4000
|
4100
|
4350
|
|
|
Width(mm)
|
|
1160
|
1160
|
1230
|
1230
|
1230
|
1400
|
|
|
Height From Ground to Overhead Guard(mm)
|
|
2095
|
2095
|
2105
|
2105
|
2115
|
2330
|
|
|
Front Overhang(mm)
|
|
451
|
451
|
465
|
465
|
465
|
585
|
|
|
Wheel Base(mm)
|
|
1640
|
1640
|
1775
|
1775
|
1900
|
2150
|
|
|
Front Wheel Track(mm)
|
|
970
|
970
|
1000
|
1000
|
1060
|
1180
|
|
|
Rear Wheel Track(mm)
|
|
970
|
970
|
970
|
970
|
970
|
1190
|
|
|
Front Wheel Tyre
|
|
7.00-12
|
7.00-12
|
28*9-15
|
25*9-15
|
250-15
|
300-15
|
|
|
Rear Wheel Tyre
|
|
6.00-9
|
6.00-9
|
6.50-10
|
6.50-10
|
6.50-10
|
7.00-12
|
|
|
Self Weight(kg)
|
|
3320
|
3600
|
4250/4290
|
4660/4700
|
4810/4850
|
6800
|
|
|
Standard Fork Length(mm)
|
|
1070
|
1070
|
1220
|
1220
|
1220
|
1220
|
|
|
Engine Rated Power(kw)
|
|
36.8
|
36.8
|
36.8
|
36.8
|
36.8
|
62.5
|
|
|
Engine Speed At Rated Power (rmp)
|
|
2500
|
2500
|
2500
|
2500
|
2500
|
2200
|
|
|
Engine Maximum Torque(Nm)
|
|
157
|
157
|
165
|
165
|
190
|
320
|
|
|
Engine Speed At Maximum Torque(rpm)
|
|
1800
|
1800
|
1600-1800
|
1600-1800
|
1600-1800
|
1800
|
|
|
Variable speed form
|
|
Mechanical / Hydraulic
|
Mechanical / Hydraulic
|
Mechanical/ Hydraulic
|
Mechanical/ Hydraulic
|
Mechanical/ Hydraulic
|
Hydraulic
|
|
Optional
1.Xinchai engine,optional Japan lsuzu, Mitsubishi engine and others.
2.Mechanical and Automatic transmission can be choosen.
3.Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast;
4.Standard 1220mmfork, optional 1370mm,1520mm, 1670mm and1820mm forks;
5.Optional side shifter, fork positioner and other attachments;6.Standard pneumatic tire, optional solid tire.
Chinese Xinchai Engine
Chinese Xinchai Engine
Japanese Mitsubishi Engine
2 stages mast
2 stages full free mast
3 stages full free mast
Detailed photograph
Compound Chain
Strong pull and easy lifting,thincking.
To prevent safety accidents
Strong pull and easy lifting,thincking.
To prevent safety accidents
Air Filter
High efficiency and low resistance air filter, reduce and resistance the dust into engine,improving engine life
High efficiency and low resistance air filter, reduce and resistance the dust into engine,improving engine life
New Suspension Adjustable Seat
Anti-Fatigue Seat.More comfortable when working
Anti-Fatigue Seat.More comfortable when working
Shuangqian Brand Tire
Wear-resistant Pneumatic tires.Adapt different roads and working environment.
Wear-resistant Pneumatic tires.Adapt different roads and working environment.
Drive Axle
Zhejiang Linde Drive axle to effectively reduce speed and increase torque,and work smoothly.
Hydraulic Steering
Make the steering smoother and quicker to ensure the safety of the driver
Make the steering smoother and quicker to ensure the safety of the driver
Packing & Delivery
Two sets and more forklifts are packed in one container,all wheels fixed with corner block, tightened with frap rope,etc.
More sets will save shipping cost,like 3 ton models,1*40 GP Container will load 5 sets
