Quick Details
-
Brand Name:
-
Friend Crushing Machine
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
about 10 cubic
-
Power (kW):
-
37
-
Weight (T):
-
2.5
-
Type:
-
Plastic Shredder
-
Application:
-
Plastic Crushing Machine
-
Reducer Box:
-
Hard surface gears box
-
Sieve Diameter:
-
20-50mm( can be customized)
-
Sieve Thickness:
-
10mm
-
Cooling Method:
-
The oil temperature with water-cooled cooling
-
Feed Opening Size:
-
500X520mm
-
Power Voltage:
-
AC380 V 50HZ
-
Weight:
-
2.5T
-
Capacity:
-
200-600kg/h
Quick Details
-
Max.Production Capacity (kg/h):
-
400
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
200 - 400 kg/h
-
Brand Name:
-
Friend Crushing Machine
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
about 10 cubic
-
Power (kW):
-
37
-
Weight (T):
-
2.5
-
Type:
-
Plastic Shredder
-
Application:
-
Plastic Crushing Machine
-
Reducer Box:
-
Hard surface gears box
-
Sieve Diameter:
-
20-50mm( can be customized)
-
Sieve Thickness:
-
10mm
-
Cooling Method:
-
The oil temperature with water-cooled cooling
-
Feed Opening Size:
-
500X520mm
-
Power Voltage:
-
AC380 V 50HZ
-
Weight:
-
2.5T
-
Capacity:
-
200-600kg/h

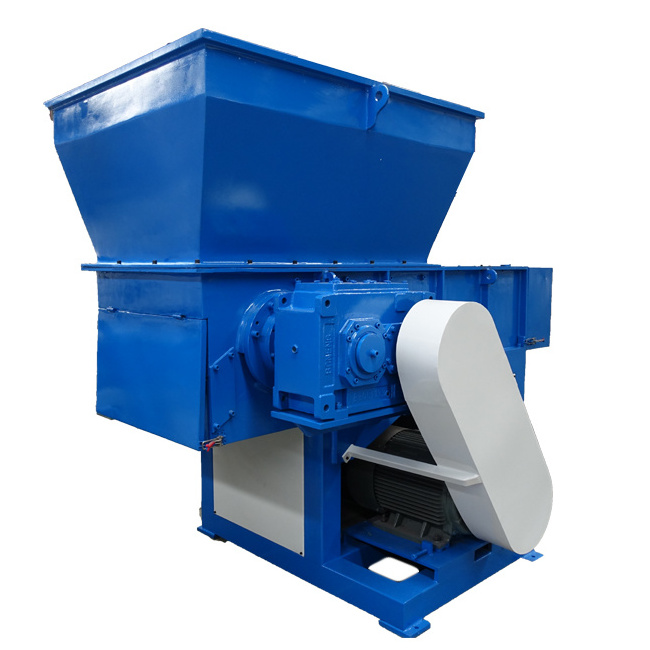

Plastic Shredder/Plastic crusher/Plastic CrushingMachine
Feature :
A:
The machine is capable of recycling large quantity intractable material effciently, such as wood,large hard & solid materials (waste lumps from extruder),plastic containers,bucket,plastic pipes,film,fiber,paper,etc.
B:
It is with below advantages:firm design,low noise,low power consumption,and continue working for a long time.
C:
The output scraps size can be adjusted to minimun 16mm(Through adusting the screen),and also no need the screen if there is no size requirements on output scraps.
D:
The shaft of knife rotates under low speed.
E:This machine controlled by PLC,to control the loop selective(if overload,rotors will revers to avoid feeing blocked).
|
Model No. |
FPS600 |
|
Swing Diameter |
320 mm |
|
Saw Rotating Speed |
36 rpm |
|
Main Shaft Efficient working length |
600mm |
|
Motor Power |
22 KW |
|
Reducer Box |
Hard surface gears box |
|
Rotor Blade Quantity |
26 pieces |
|
Fixed Blade Quantity |
1 pieces |
|
Blade Material |
Special Tool Material |
|
Hardness of Blade |
hrc58-60 degree |
|
Working Power |
200-400 kg/h |
1.Shredder Shaft
