Quick Details
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customized
-
Maximum Traction(20Mpa):
-
1700kg
-
Operating Pressure:
-
16-20mpa
-
Hydraulic Valve:
-
Remote
-
Rope(D x L):
-
6x20mm
-
Rope Speed(50 L/min hydraulic oil):
-
45m/min
-
Weight:
-
50kg
-
length:
-
500mm
-
Product name:
-
pulling winch,hydraulic winch
-
Usage:
-
tractor,excatr
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
CRANES
-
Capacity:
-
100KN
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customized
-
Maximum Traction(20Mpa):
-
1700kg
-
Operating Pressure:
-
16-20mpa
-
Hydraulic Valve:
-
Remote
-
Rope(D x L):
-
6x20mm
-
Rope Speed(50 L/min hydraulic oil):
-
45m/min
-
Weight:
-
50kg
-
length:
-
500mm
-
Product name:
-
pulling winch,hydraulic winch
-
Usage:
-
tractor,excatr

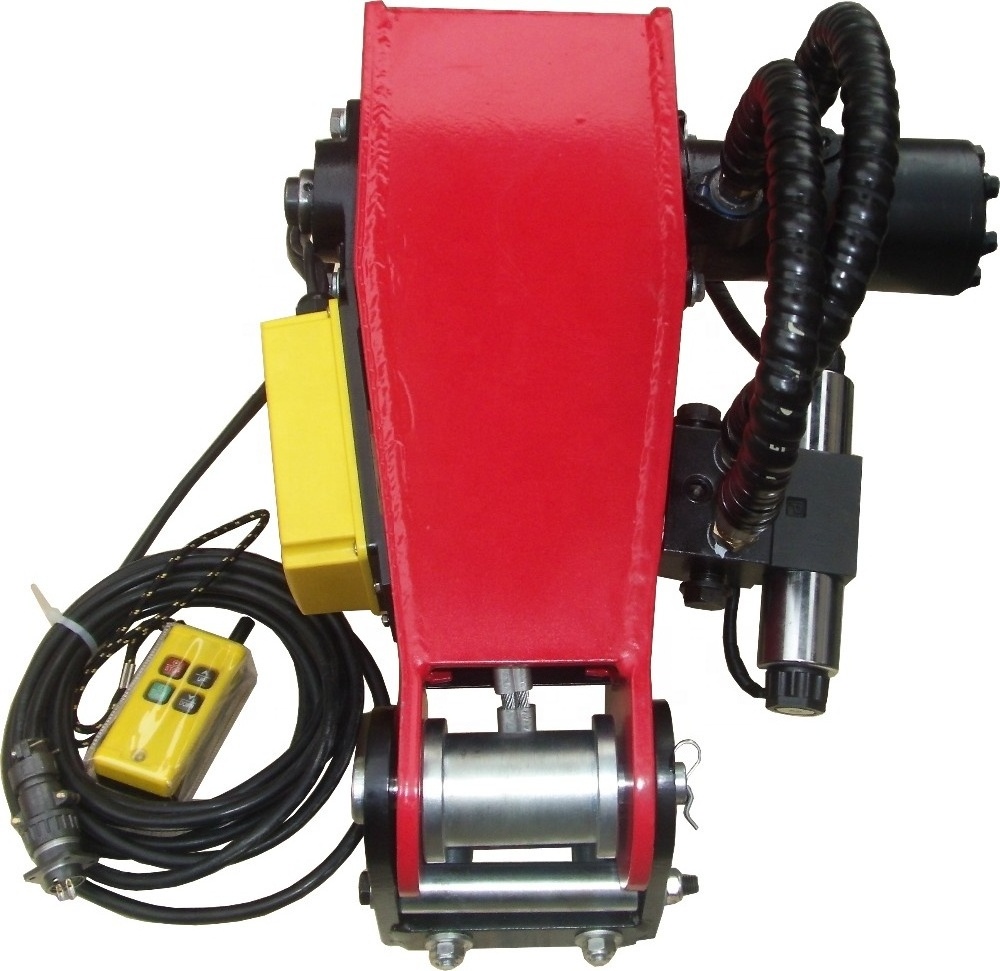

HW 1700 Hydraulic winch for log splitter, Crane, Mini digger tractor, tractor viticulture Horticulture and many other applications
1. And strutting up firewood for wood splitter
2. Pull logs on trailer
3. Pull out the rhizomes and trees
4. When mounted winch on logging cranes and small excavators
5. As a winch for small tractors and Vineyard tractors
6. There is a 20 m long and 6 mm thick steel cable mounted.
7. Large sheave for long life of the steel rope
A sturdy steel construction with 3-sided mounting standard (left, right, rear) with M 12 threaded holes, this allows many options for attaching the winch (threads are cut and painted you need to be trimmed before using the tapping, because of the rust protection).
|
Model |
HW1700 |
HW1700R |
|
Maximum Traction(20Mpa) |
1700kg |
1700kg |
|
Operating Pressure |
16-20Mpa |
16-20Mpa |
|
Hydraulic Valve |
Manual |
Remote |
|
Rope(D x L) |
6x20mm |
6x20mm |
|
Rope Speed(50 L/min hydraulic oil) |
45m/min |
45m /min |
|
Weight |
50kg |
55kg |
