Quick Details
-
Model:
-
DL-6MC/DL-7MC
-
Style:
-
Floortype Low-Speed
-
Max Capacity:
-
4*750ml
-
Speed Accuracy:
-
±50rpm
-
Temp Range:
-
-20℃~+40℃
-
Timer Range:
-
0~9h 59min
-
Motor:
-
Microprocessor control, AC Frequency Motor
-
Weight:
-
260kg
Quick Details
-
Brand Name:
-
XIANGXIN Brand
-
Model Number:
-
DL-6MC/DL-7MC
-
Place of Origin:
-
Hunan, China
-
Model:
-
DL-6MC/DL-7MC
-
Style:
-
Floortype Low-Speed
-
Max Capacity:
-
4*750ml
-
Speed Accuracy:
-
±50rpm
-
Temp Range:
-
-20℃~+40℃
-
Timer Range:
-
0~9h 59min
-
Motor:
-
Microprocessor control, AC Frequency Motor
-
Weight:
-
260kg

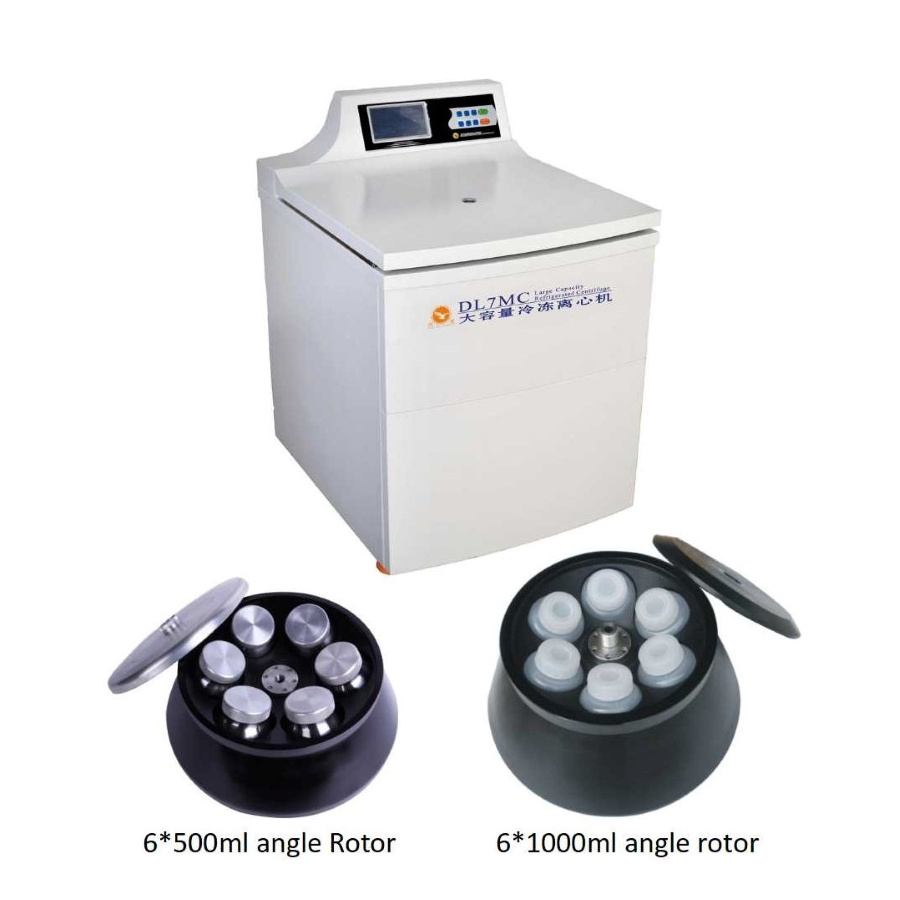

Floor-type Large Capacity Refrigerated Centrifuge
DL-6MC/DL-7MC
Feature
1 . With the self-diagnostic and protection system for imbalance , over - speed, over- t emperature. Greatly ensured the safe of users and machine.
2 . Widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation,protein precipitation and cell colle c tion.
3. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relation RCF.
4. Maintenance-free frequency conversion motor, and prevent over-speed operation.
Technical Parameters:
|
Model |
DL -6 MC |
DL -7 MC |
|
Max Speed |
6 000r/min |
7 000r/min |
|
Max RCF |
668 0xg |
115 00xg |
|
Max Capacity |
4 × 75 0ml |
|
|
Speed Accuracy |
±50 rpm |
|
|
Temp Accuracy |
±1℃ |
|
|
Temp Range |
-20℃~+40℃ |
|
|
Timer Range |
0~9h 59min |
|
|
Motor |
Microprocessor control, AC Frequency Motor |
|
|
Noise |
≤6 0 dB(A) |
|
|
Power Supply |
AC220 V 50Hz 30A &AC110V 60Hz |
|
|
Dimension |
730×840×1200(L×W×H) |
|
|
Weight |
260kg |
|
Rotor
|
Number |
Max Speed |
Max RCF |
Capacity |
|
NO.1 Angle Rotor |
7 000r/min |
115 00xg |
6×500ml ( Blood bag and bottles) |
|
NO.2 Swing Rotor |
4200r/min |
4390xg |
4×750ml Bottles |
|
No.3 Uncap rotor |
4000r/min |
3840xg |
148× 5/7 ml Vacuum tubes |
|
No.4 Swing rotor |
4000r/min |
3780 × g |
6 × 500ml blood bag and bottles |
|
No.5 Swing Rotor |
4000r/min |
3780 × g |
4 × 500ml blood bag and bottles |
|
No.6 Automatic Uncap rotor |
4000r/min |
3480 × g |
216 × 5/7ml Vacuum Tubes |
|
No.7 Microplates Rotor |
4000r/min |
2200 × g |
2 × 2 × 96holes |
Centrifuge:
Rotors
Photos in Chamber:
Details:
