Quick Details
-
Model Number:
-
100O.D
-
Product name:
-

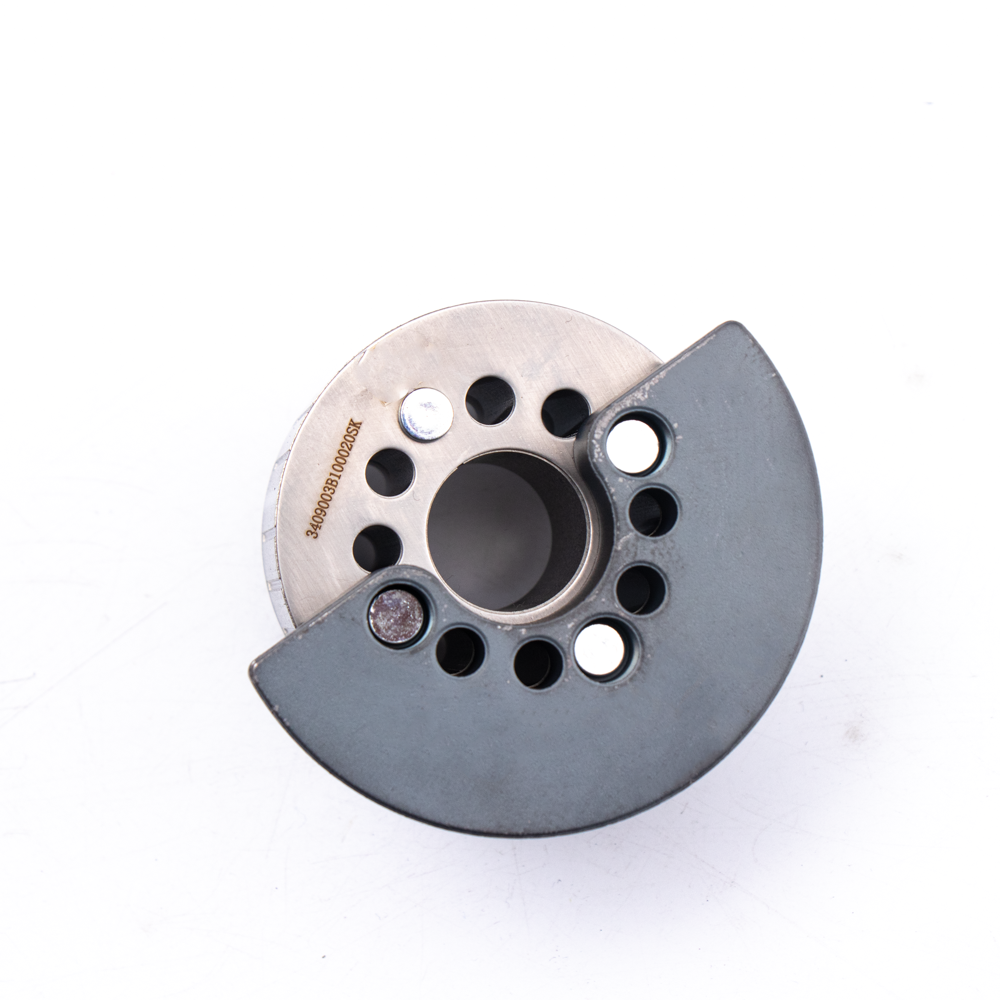

dc motor stator and rotor
-
Application:
-
electric car compressor motor
-
Color:
-
silver
-
shaft:
-
with or without
-
Dimension:
-
O.D 35mm
-
Speed:
-
0-12000rpm, customize
-
torque:
-
0-15N.m
-
efficiency:
-
91.8%-94.8%
-
current:
-
16-25Arms
-
Power:
-
3.25-9.45kw
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Modar
-
Model Number:
-
100O.D
-
Product name:
-
dc motor stator and rotor
-
Application:
-
electric car compressor motor
-
Color:
-
silver
-
shaft:
-
with or without
-
Dimension:
-
O.D 35mm
-
Speed:
-
0-12000rpm, customize
-
torque:
-
0-15N.m
-
efficiency:
-
91.8%-94.8%
-
current:
-
16-25Arms
-
Power:
-
3.25-9.45kw
Products Description
Product Specifications
|
Warranty
|
12 months
|
|
Place of Origin
|
Jiangsu, China
|
|
Brand Name
|
Modar Motor
|
|
Model Number
|
100O.D.
|
|
Type
|
BLDC motor stator
|
|
Efficiency
|
IE4
|
|
Usage
|
Electric car compressor motor
|
|
Voltage
|
0~800V
|
|
Speed
|
0~12000RPM
|
|
Torque
|
0~15Nm
|
|
Suitable compressor flow
|
18CC, 28CC, 34CC, 40CC, 45CC, 50CC, 66CC
|
|
Outer diameter
|
35mm
|
|
Electric Parameters
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
rated power
|
rated voltage
|
rated current
|
rated torque
|
rated speed
|
efficiency
|
current Density
|
Therminal load
|
||||||||
|
100-30
|
3.25kw
|
320V
|
12Arms
|
5.2Nm
|
6000rpm
|
91.8%
|
16A/mm2
|
804J
|
||||||||
|
100-35
|
4.5kw
|
350V
|
11Arms
|
5.4Nm
|
8000rpm
|
92.9%
|
18A/mm2
|
612J
|
||||||||
|
100-40
|
6.05kw
|
400V
|
16Arms
|
7.2Nm
|
8000rpm
|
93.1%
|
20A/mm2
|
916J
|
||||||||
|
100-45
|
7.21kw
|
600V
|
15Arms
|
8.5Nm
|
8000rpm
|
94.2%
|
22A/mm2
|
982J
|
||||||||
|
100-50
|
9.45kw
|
600V
|
18.6Arms
|
15.0Nm
|
4000rpm
|
94.8%
|
25A/mm2
|
1002J
|
||||||||
