Quick Details
-
Dimension(L*W*H):
-
2300*1860*890mm
-
Weight:
-
450 KG
-
Features:
-
Tractor Towable Backhoe
-
Product name:
-
30HP Tractor Towable Backhoe 3 Point Hitch Small Backhoe Attachment
-
Tractor HP:
-
25-45HP
-
3-point linkage:
-
Cat-1
-
Digging Depth:
-
1750mm
-
Loading Height:
-
1720mm
-
Transport Height:
-
1840mm
-
Extend Height:
-
2870mm
-
Bucket cubage:
-
0.036
-
Swing Arc:
-
180°
Quick Details
-
Application:
-
Farm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
XinKai
-
Dimension(L*W*H):
-
2300*1860*890mm
-
Weight:
-
450 KG
-
Features:
-
Tractor Towable Backhoe
-
Product name:
-
30HP Tractor Towable Backhoe 3 Point Hitch Small Backhoe Attachment
-
Tractor HP:
-
25-45HP
-
3-point linkage:
-
Cat-1
-
Digging Depth:
-
1750mm
-
Loading Height:
-
1720mm
-
Transport Height:
-
1840mm
-
Extend Height:
-
2870mm
-
Bucket cubage:
-
0.036
-
Swing Arc:
-
180°

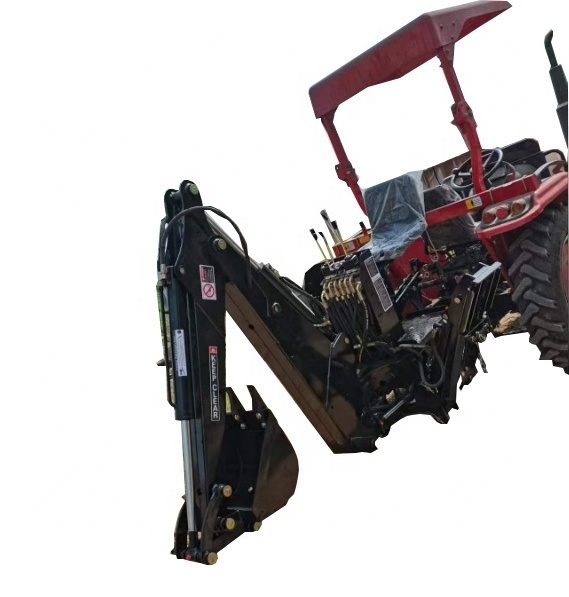

30HP Tractor Towable Backhoe 3 Point Hitch Small Backhoe Attachment
1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation.
3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected and mounted on it.
4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank
|
Model |
LW-6 |
||
|
Specification |
Inch |
Metric |
|
|
Tractor HP |
25-45HP |
||
|
3-point Linkage |
Cat-1 |
||
|
Structure Weight |
1060lb |
480kg |
|
|
A |
Digging Depth(two foot flat bottom) |
5.74’ |
1750mm |
|
B |
Reach from center line of Swing pivot |
8.53' |
2600mm |
|
C |
Loading Height(bucket at 60°) |
5.64’ |
1720mm |
|
D |
Transport Height(maximum) |
6.03’ |
1840mm |
|
E |
Extend Height |
9.41' |
2870mm |
|
F |
Loading Reach(bucket at 60°) |
3.11’ |
950mm |
|
G |
Transport Overhang |
3.54' |
1080mm |
|
H |
Undercut |
2.4' |
730mm |
|
I |
Bucket Rotation |
180° |
|
|
J |
Stabilizer Spread(up position) |
4.3’ |
1310mm |
|
K |
Stabilizer Spread(down position) |
4.3’ |
2100mm |
|
L |
Swing Arc |
180° |
|
|
M |
B ucket width |
300mm |
|
|
N |
Bucket cubage |
0.036 |
|
