Quick Details
-
Model Number:
-
ppr pipe
-
Specification:
-
20mm
-
Length:
-
4M or as required
-
Thickness:
-
2.3mm
-
Standard:
-
DIN8077/8078
-
ppr pipe color:
-
white, grey ,green or as you requested
-
ppr pipe connection:
-
socket/electrofusion
-
ppr pipe size:
-
20,25,32,40,50,63,75,90,110
-
ppr pipe application:
-
supply water system
-
ppr pipe fittings Service life:
-
over 50 years
-
ppr pipe Time of Shipment:
-
within 15 days for1*20FCL, 20days for 1*40FCL
-
ppr fittings produce standard:
-
DIN8077/8078
-
ppr fittings connect way:
-
welding or male and female
-
PPR accessories packaging:
-
PP film insides and paper carton outsides
-
ppr certification:
-
CE,ISO
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Fosite
-
Model Number:
-
ppr pipe
-
Specification:
-
20mm
-
Length:
-
4M or as required
-
Thickness:
-
2.3mm
-
Standard:
-
DIN8077/8078
-
ppr pipe color:
-
white, grey ,green or as you requested
-
ppr pipe connection:
-
socket/electrofusion
-
ppr pipe size:
-
20,25,32,40,50,63,75,90,110
-
ppr pipe application:
-
supply water system
-
ppr pipe fittings Service life:
-
over 50 years
-
ppr pipe Time of Shipment:
-
within 15 days for1*20FCL, 20days for 1*40FCL
-
ppr fittings produce standard:
-
DIN8077/8078
-
ppr fittings connect way:
-
welding or male and female
-
PPR accessories packaging:
-
PP film insides and paper carton outsides
-
ppr certification:
-
CE,ISO

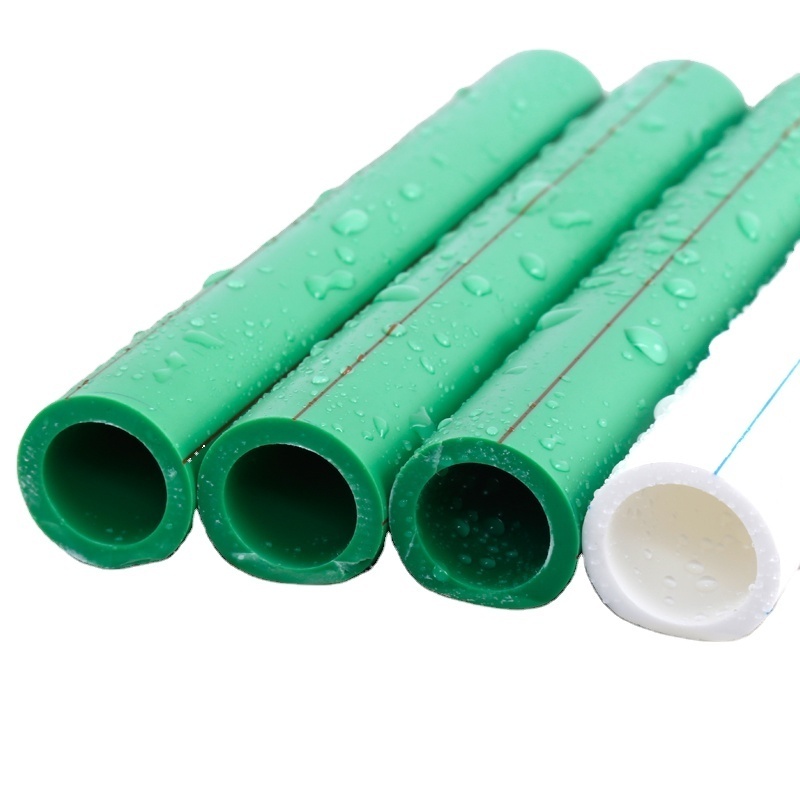

Germany standard PPR pipe and fittings for water supply
,
Material
: Random Polypropylene
Size : full 16mm through 160mm availability
Pressure Rating : 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa
Standard : ISO15874 and DIN8077/8078
Colors : Light grey or white, pipe for cold water is marked with blue stripes, pipe for hot water is marked with red stripes. Other colors are also available upon request
Form Supplied
:
4 and 5.8 meters straight length (all size)
50 and 100 meters coil length (dn16~dn32)
Other forms are also available upon request
A dvantages :
1.High Temperature Resistance: the maximum sustained working temperature is up to 70°C , the maximum transient temperature is up to 95°C
2.Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
3.Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
4.Corrosion Resistance: resist chemical matters and electron chemical corrosion
5.High Flow Capacity: smooth interior walls and low friction result in low flow resistance and high volume
6.Excellent Flexibility: can be supplied in coil
7.Low Installation Costs: light weight and ease of installation can reduce installation costs
8.Longevity: more than 50 years under proper use
9.Recycled and Environment-friendly
