Quick Details
-
Material:
-
304 stainless steel
-
Power Supply:
-
AC100-240V
-
Diameter:
-
219mm±2mm(OEM:168mm, 273mm)
-
Rising speed:
-
4s
-
Lowering speed:
-
2s
-
Column Thickness:
-
6mm(OEM:8mm,10mm,12mm,20mm)
-
Rise Height:
-
600mm(OEM:800mm,1000mm,1200mm)
-
Protection Level:
-
IP68
-
Working environment:
-
-35℃~75℃
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
ACS AUTO
-
Product name:
-

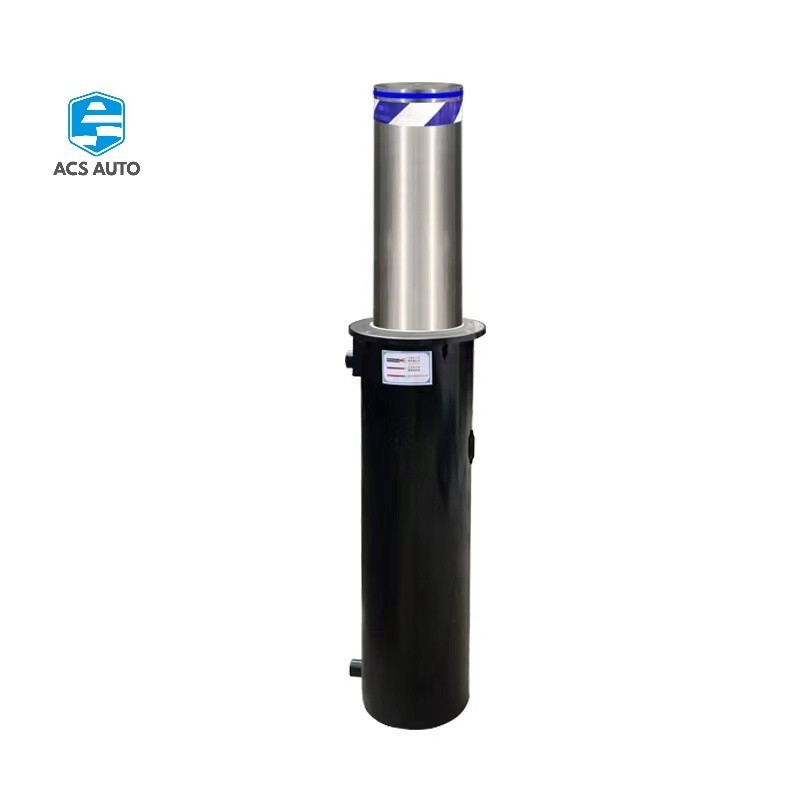

Automatic Electronic Hydraulic Rising Bollard
-
Material:
-
304 stainless steel
-
Power Supply:
-
AC100-240V
-
Diameter:
-
219mm±2mm(OEM:168mm, 273mm)
-
Rising speed:
-
4s
-
Lowering speed:
-
2s
-
Column Thickness:
-
6mm(OEM:8mm,10mm,12mm,20mm)
-
Rise Height:
-
600mm(OEM:800mm,1000mm,1200mm)
-
Protection Level:
-
IP68
-
Working environment:
-
-35℃~75℃
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
ACS AUTO
|
|
Product name
|
Automatic Electronic Hydraulic Rising Bollard
|
|
Power Supply
|
AC100-240V
|
|
Material
|
304 Stainless Steel
|
|
Diameter
|
219mm±2mm(OEM:168mm, 273mm)
|
|
Column thickness
|
6mm(OEM:8mm,10mm,12mm,20mm)
|
|
Rise Height
|
600mm(OEM:800mm,1000mm,1200mm)
|
|
Protection Level
|
IP68
|
|
Pre-embedded height
|
1110mm
|
|
Weight
|
96KG
|
|
Rising speed
|
4 seconds
|
|
Lowering speed
|
2 seconds
|
|
Work environment
|
-35℃~75℃
|
Product Description
Top flange 304 stainless steel, thickness 10mm using custom reflective film; Acrylic light plate to protect the light bar, more
beautiful built-in ultra-high brightness LED waterproof light strip, light time can be set freely
Panel textured design, 304 stainless steel thickness of 10mm, the panel has a frosted and car light surface can be selected
Four outer hexagonal steel rods connect the guide pillar, and the pre-wire can be wound around it; easy to disassemble.
Four adjustable limit top rubber to keep the vertical gap even after the column rises. The fixing screws are made of 304 stainless steel with nylon sleeve between the inner barrel and the flange for protection and durability
Suspension structure design, the use of gravity, the guide rail has a regulating role, when the vehicle passes, to prevent extrusion deformation four guide pillars, the force is uniform
Bollard Control System
Support external ground sensing function
Support external infrared function
Expandable cell phone APP remote visual control function
Support test radar linkage
Support external license plate recognition system
Standard control box system
Outdoor waterproof control box system
Control Box
1PCS control box could control 8pcs of rising bollard at same timeSize(mm):500.00*400.00*200.00(L*W*D)
Material:Cold roller steel with paint
Input voltage(V):100-240
Controlled quantity: 8PCS Rising Bollards
Weight(Kg):15.00
Remote control distance(m):30.00
Connect to
Access control,Infrared sensors,ANPR,Car parking Management system,Loop Detector,etc
System Expansion Solution
Construction Solution
Installation Instructions
Bollard Cloud Monitoring And Control System
Case
Packing & Delivery
Foam+Carton BOX+Seaworthy Wooden
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging
services will be provided.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging
services will be provided.
