Quick Details
-
Certificate:
-
CE
-
Max.weight of gate operator:
-
800KG
-
MOQ:
-
100set
-
Power of swing door operator:
-
280w
-
Payment:
-
T/T, L/C
-
Max.lenght of gate actuator kit:
-
2-3-4mt
-
Protection Class:
-
IP 44
-
Key word:
-
automatic gate motor
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Type:
-
Gate Operators
-
Color of gate actuator kit:
-
as picture
-
Certificate:
-
CE
-
Max.weight of gate operator:
-
800KG
-
MOQ:
-
100set
-
Power of swing door operator:
-
280w
-
Payment:
-
T/T, L/C
-
Max.lenght of gate actuator kit:
-
2-3-4mt
-
Protection Class:
-
IP 44
-
Key word:
-
automatic gate motor

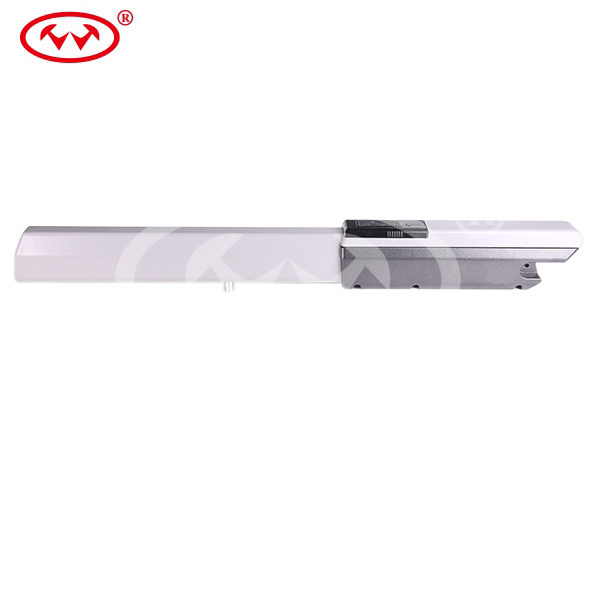

Linear actuator automatic swing gate electric motor kit
1. With the overheat protector inside, it will cut the electricity when the motor temperature reaches the rated value.
2. Stable transmission thanks to turbine and screw devices.
3. Easy to install. When the power is off, use the clutch and open the door.
Specifications:
|
Item |
LS-V-I |
LS-V-II
|
|
Power Supply of gate actuator kit |
AC 230V/120V
|
DC24V |
|
Absorbed Power |
280w |
70W |
|
Absorbed current of gate actuator kit
|
1.8A |
3A |
|
Rod Speed |
1.8 |
2 |
|
Maximum lenght per leaf of gate actuator kit
|
2-3-4mt |
2-3-4mt
|
|
Maximum Weight per leaf |
350kg |
300kg |
|
Huosing protection of
gate actuator kit
|
150° | / |
|
Protection Class |
IP 44 |
IP44 |
|
Operating temperature |
-20℃-+70℃ |
-20℃-+70℃
|
|
Cycles/h |
18 |
50 |
