12PSB-IAseries diesel fuel injection test machine is design for customer's require. This series test
bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Boroadto
-
Model Number:
-
12PSD
-
Warranty:
-
12 Months
-
Application:
-
Car Inspection
-
Model Name:
-
12PSD
-
Product Name:
-
Car Diagostic Tool
-
Function:
-
Multi Function
-
Keywords:
-
Protocol Car Diagnostic
-
Item Type:
-
Analyzers
-
Language:
-
Support Multi-language
-
Weight:
-
1000KG
-
Color:
-
Green
-
Special Features:
-
Universal Read
Quick Details
-
Car Fitment:
-
Other
-
Voltage:
-
AC220V/380V
-
Power:
-
7.5KW/11KW/ 15KW/ 18.5KW/ 22KW/ 30KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Boroadto
-
Model Number:
-
12PSD
-
Warranty:
-
12 Months
-
Application:
-
Car Inspection
-
Model Name:
-
12PSD
-
Product Name:
-
Car Diagostic Tool
-
Function:
-
Multi Function
-
Keywords:
-
Protocol Car Diagnostic
-
Item Type:
-
Analyzers
-
Language:
-
Support Multi-language
-
Weight:
-
1000KG
-
Color:
-
Green
-
Special Features:
-
Universal Read
Product Description

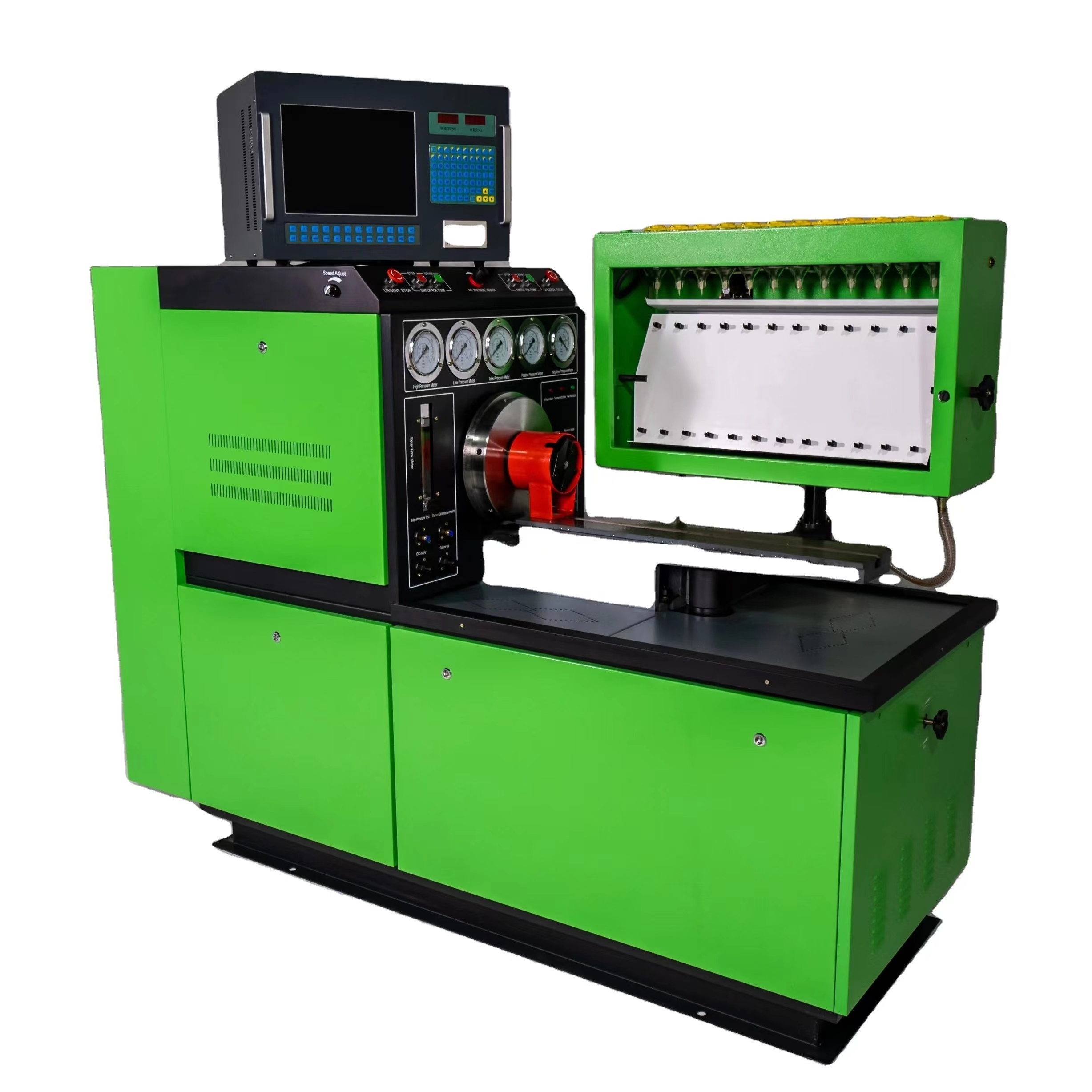

12PSD Diesel Injector Pump Diesel Fuel Injection Pump Test Bench Machine
Introduction
|
Specification
|
|
Model Number
|
12PSB
|
|
Power Supply
|
220VAC/380VAC
|
|
Phase
|
Single Phase/Three Phases
|
|
Power(kw)
|
7.5 1115 18.5 22 30
|
|
Main tank capacity
|
40L
|
|
Puma speed
|
0-4000 revolution
|
|
Number of Cylinders
|
12
|
|
Height of principal axis center (mm)
|
125
|
|
Volume of big and small volumetric cylinder(ml)
|
150 45
|
|
Flywheel inertia(kg*m)
|
0.8~0.9
|
|
Positive pressure of air supply(Mpa)
|
0~0.3
|
|
Negative pressure of air supply(Mpa)
|
-0.03~0
|
|
Control temperature of fuel (°C)
|
40±2
|
|
DC electrical source (V)
|
12 24
|
|
Dimension
|
217x98x152cm
|
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
BoRoadTo
|
|
Warranty
|
Years
|
Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump).
12. Checking the travel of stroke (on request)
13. Advance angle checking
12PSB
Diesel Fuel Injection Pump Test Bench Characteristics.
1. Changing frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;
9. Built-in air resource;
10.Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by
computers in real time,
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
