Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700-6500K
-
Product Weight（kg）:
-
4
-
Lamp Luminous Flux(lm):
-
3780-7800lm
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wiscoon
-
Model Number:
-
APE-1
-
Product name:
-

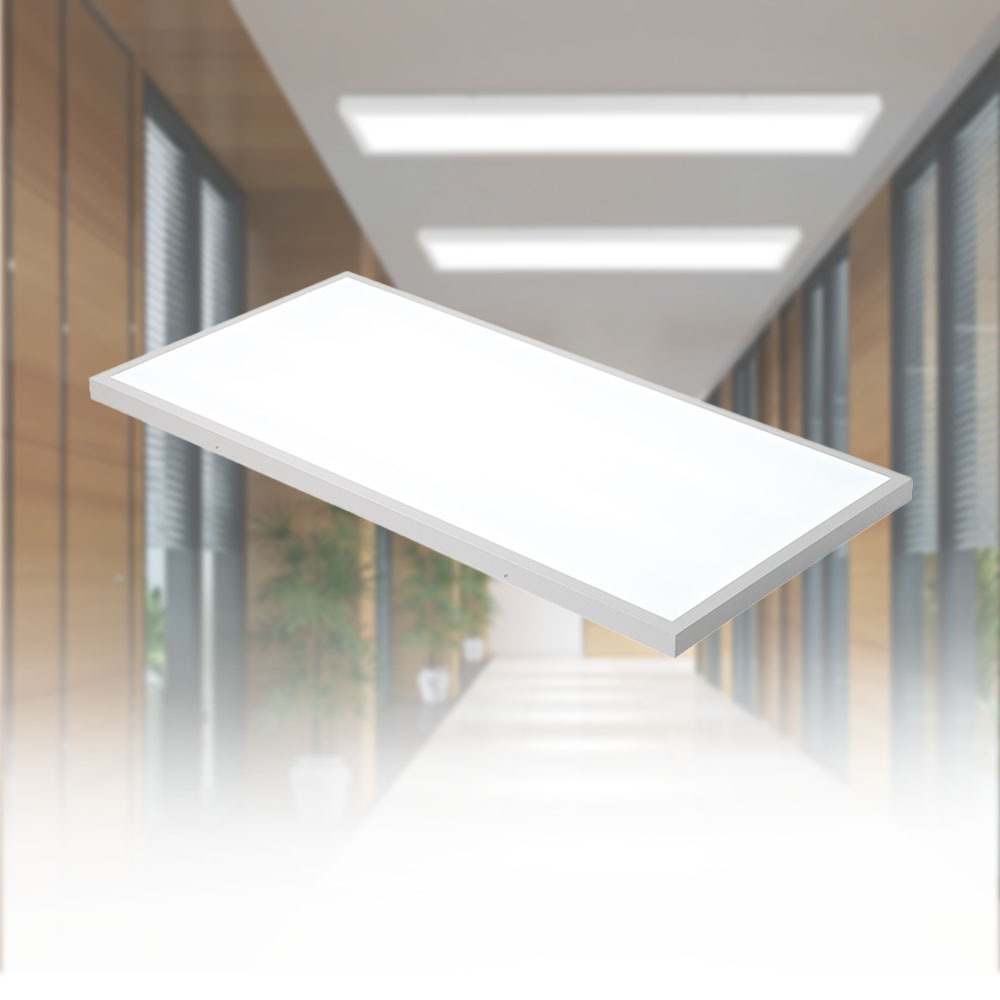

Backlit Led Panel Light
-
Shape:
-
Square Shape
-
Installation:
-
Embedded Installation\Ceiling Installation
-
Power:
-
30W/40W/50W/60W Tunable
-
Material:
-
Aluminum+PC
-
Feature:
-
CCT/Power Selectable
-
LED Driver:
-
0-10V Dimmable
-
Dimension:
-
2X2 2X4 1X4
-
Certification:
-
ETL
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Application:
-
Office Building Supermarket, Commercial lighting
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700-6500K
-
Product Weight（kg）:
-
4
-
Lamp Luminous Flux(lm):
-
3780-7800lm
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wiscoon
-
Model Number:
-
APE-1
-
Product name:
-
Backlit Led Panel Light
-
Shape:
-
Square Shape
-
Installation:
-
Embedded Installation\Ceiling Installation
-
Power:
-
30W/40W/50W/60W Tunable
-
Material:
-
Aluminum+PC
-
Feature:
-
CCT/Power Selectable
-
LED Driver:
-
0-10V Dimmable
-
Dimension:
-
2X2 2X4 1X4
-
Certification:
-
ETL
Products Description
Product details
|
Size
|
1*1ft
|
2*2ft
|
1*4t
|
2*4ft
|
|
Model
|
APE-1-A-295-25
|
APE-1-A-595-48
|
APE-1-A-1195-42
|
APE-1-A-1195-72
|
|
Rated Power(±5%)
|
20W/25W Typical
|
36W/48W Typical
|
36W/42W Typical
|
48W/72W Typical
|
|
Input Voltage
|
200-240V/AC
|
200-240V/AC
|
200-240V/AC
|
200-240V/AC
|
|
Frenquency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Power Factor
|
>0.9
|
>0.9
|
>0.9
|
>0.9
|
|
Power Efficiency
|
87%
|
87%
|
87%
|
87%
|
|
THD
|
<20%
|
<20%
|
<20%
|
<20%
|
|
Flicker Free
|
Flicker(Standard)
Flicker Free(Optional) |
Flicker(Standard)
Flicker Free(Optional) |
Flicker(Standard)
Flicker Free(Optional) |
Flicker(Standard)
Flicker Free(Optional) |
|
Dimming
|
0-10V/TRIAC/DALI can be customized
|
0-10V/TRIAC/DALI can be customized
|
0-10V/TRIAC/DALI can be customized
|
0-10V/TRIAC/DALI can be customized
|
|
Sensor/Emergency
|
Can be customized
|
Can be customized
|
Can be customized
|
Can be customized
|
|
Driver Brand
|
Lifud/Boke/Philips/Tridonic optional
|
Lifud/Boke/Philips/Tridonic optional
|
Lifud/Boke/Philips/Tridonic optional
|
Lifud/Boke/Philips/Tridonic optional
|
|
Function
|
Blueteeth/App control can be customized
|
Blueteeth/App control can be customized
|
Blueteeth/App control can be customized
|
Blueteeth/App control can be customized
|
|
Typical CCT
|
3000K/4000K/5000K/6000K
|
3000K/4000K/5000K/6000K
|
3000K/4000K/5000K/6000K
|
3000K/4000K/5000K/6000K
|
|
CRI
|
>80Ra
|
>80Ra
|
>80Ra
|
>80Ra
|
|
CCT Adjustable
|
Can be customized
|
Can be customized
|
Can be customized
|
Can be customized
|
|
Lumens Efficiency(lm/w)
|
100/120 Typical
140/180 optional |
100/120 Typical
140/180 optional |
100/120 Typical
140/180 optional |
100/120 Typical
140/180 optional |
|
Luminous Flux(±5%)
|
Up to lumens efficiency
|
Up to lumens efficiency
|
Up to lumens efficiency
|
Up to lumens efficiency
|
|
LED Type
|
LM80 SMD2835/1W
|
LM80 SMD2835/1W
|
LM80 SMD2835/1W
|
LM80 SMD2835/1W
|
|
LED QTY
|
32PCS/100lm/w
|
48PCS/100lm/w
|
48PCS/100lm/w
|
96PCS/100lm/w
|
|
Beam Angle
|
160Deg
|
160Deg
|
160Deg
|
160Deg
|
|
Lens
|
PC LENs(CREE/SAMSUNG LENS optional)
|
PC LENs(CREE/SAMSUNG LENS optional)
|
PC LENs(CREE/SAMSUNG LENS optional)
|
PC LENs(CREE/SAMSUNG LENS optional)
|
|
Glare Index
|
UGR>20(Standard)
UGR<19(Optional) |
UGR>20(Standard)
UGR<19(Optional) |
UGR>20(Standard)
UGR<19(Optional) |
UGR>20(Standard)
UGR<19(Optional) |
|
Materials
|
Iron body+Aluminum frame+PC diffuser
|
Iron body+Aluminum frame+PC diffuser
|
Iron body+Aluminum frame+PC diffuser
|
Iron body+Aluminum frame+PC diffuser
|
|
Lifespan
|
50,000hours
|
50,000hours
|
50,000hours
|
50,000hours
|
|
Standards
|
CE/ROHS
|
CE/ROHS
|
CE/ROHS
|
CE/ROHS
|
|
Warranty
|
5years
|
5years
|
5years
|
5years
|
|
IP Grade
|
IP20/IP65
|
IP20/IP65
|
IP20/IP65
|
IP20/IP65
|
|
Storage Temperature
|
-30~60℃(-22~140℉)
|
-30~60℃(-22~140℉)
|
-30~60℃(-22~140℉)
|
-30~60℃(-22~140℉)
|
|
Working Temperature
|
-20~40℃(-4~104℉)
|
-20~40℃(-4~104℉)
|
-20~40℃(-4~104℉)
|
-20~40℃(-4~104℉)
|
|
Operating Humidity
|
10%
|
10%
|
10%
|
10%
|
|
Product Size
|
295*295*32mm
|
595*595*32mm
|
295*1195*32mm
|
595*1195*32mm
|
|
Packing Size
(5PCS/CTN) |
33.5*25*33.5cm
|
66*25*65.5cm
|
66*25*123.5cm
|
66*25*123.5cm
|
|
Gross Weight/CTN
|
5.2KG
|
9.8KG
|
10.0KG
|
23.0KG
|
