Quick Details
-
lock side:
-
205*35*42mm
-
strike plate:
-
90*25*2mm
-
panel size:
-
200*34*3mm
-
bolt:
-
16mm diameter stainless throw
-
main material:
-
Strong aluminum panel and stainless steel coil brass
-
voltage:
-
12VDC
-
stadby current:
-
400mA
-
working:
-
410mA
-
feature:
-
with time delay and signal output and low temperature
-
Unlock way:
-
Fail safe
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANXING
-
Model Number:
-
AX074
-
lock side:
-
205*35*42mm
-
strike plate:
-
90*25*2mm
-
panel size:
-
200*34*3mm
-
bolt:
-
16mm diameter stainless throw
-
main material:
-
Strong aluminum panel and stainless steel coil brass
-
voltage:
-
12VDC
-
stadby current:
-
400mA
-
working:
-
410mA
-
feature:
-
with time delay and signal output and low temperature
-
Unlock way:
-
Fail safe

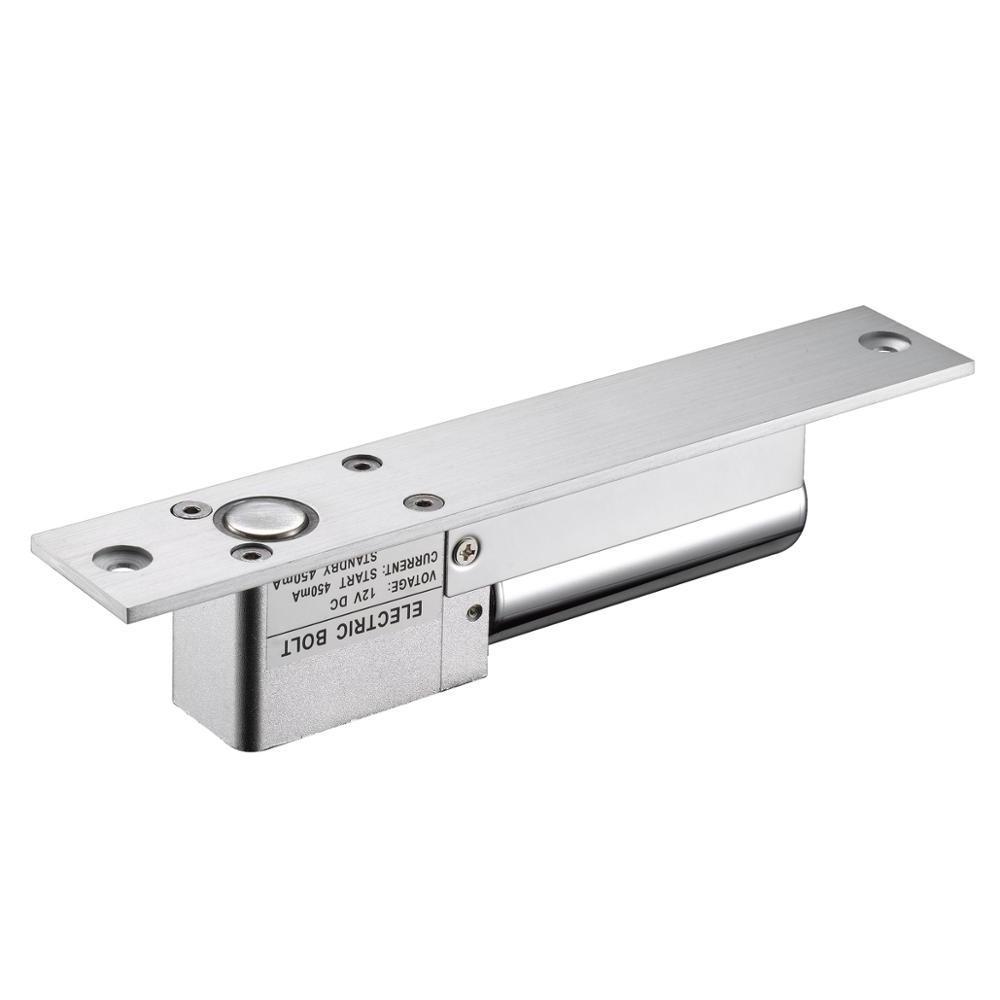

AX074 Electric drop bolt lock with time delay and signal
Face plate: 205 x 34 x 40mm
Strike plate: 90 x 25 x 2mm
Panel size: 200x34x3mm
Bolt: 16mm diameter, 16 mm stainless throw
Strong aluminum panel and stainless steel
Dual voltage: DC12V
Current draw: (start) 400mA, (standby) 410mA
Function:
Fail safe: locked when energized
Safety function: double protection currents, protection against damage, built-in voltage spike suppressor
Performance testing: five hundred thousand times aging test
Patent design: low temperature
With time delay(0.3.6.9seconds optional) and signal output(NO/NC/COM) function
Opening mode: 180-degree swinging door
Suitable for: wooden doors, glass doors, metal doors, fireproof doors
Warranty: two years (except man-made faults)
Net weight: 0.7kg
Item No.: AX074
G W: 6.5 KGS
N W: 5.5 KGS
MEAS: 34*24.5*12CM
QTY: 10 PCS
Carton No.: of
