With our broad range of high capacity cloth fabric waste shredding shredder, we provide the capability to efficiently shred waste cloths. We build double shaft cloths shredder with single motor or double motors to meet your application requirements.

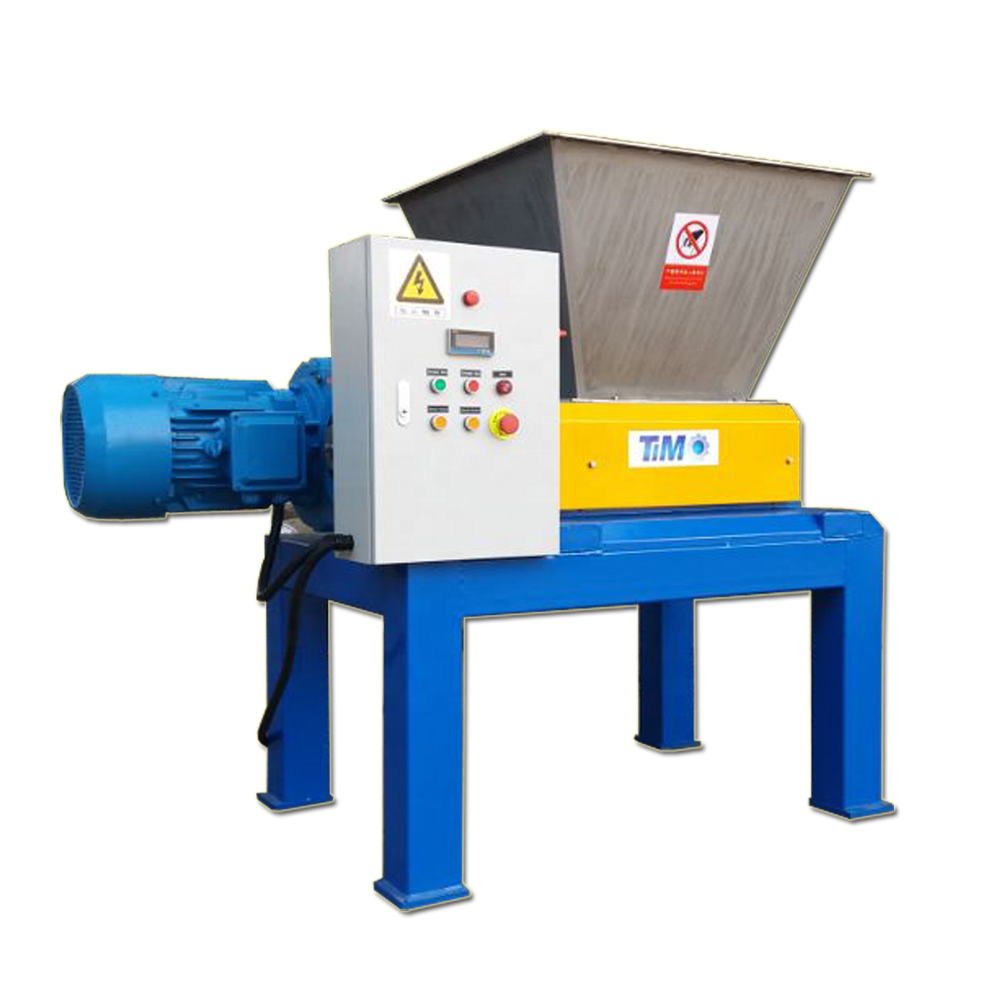

High Capacity Cloth Fabric Waste Shredding Shredder
is feature of low speed and high torque. These powerful cloths fabric waste shredder can handle waste material products including fabric, cloths, textile, textile fabric, textile materials and much more. They are specially designed to provide effective operation with low noise, sparking, dust or heat rise.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HW300-HW1000
-
Power:
-
11-110
-
Material:
-
#45 steel
-
Weight (KG):
-
1500 kg
-
overload protection:
-
automatic reversal
-
bearing protection:
-
Multiple barriers of mechanical labyrinth and conventional seals
-
severe Shock Protection:
-
Cushion drive system absorbs minor shock
-
economical & practical:
-
From the low speed, high torque electromechanical driving system
-
After-sales Service Provided:
-
Online support
Quick Details
-
Production Capacity:
-
1000L/H
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TIMO
-
Model Number:
-
HW300-HW1000
-
Power:
-
11-110
-
Material:
-
#45 steel
-
Weight (KG):
-
1500 kg
-
overload protection:
-
automatic reversal
-
bearing protection:
-
Multiple barriers of mechanical labyrinth and conventional seals
-
severe Shock Protection:
-
Cushion drive system absorbs minor shock
-
economical & practical:
-
From the low speed, high torque electromechanical driving system
-
After-sales Service Provided:
-
Online support
Product Description
Waste Textile Cloth Fabric Shredder
Product Feature
|
Model
|
HW300
|
HW500
|
HW600
|
HW800
|
HW1000
|
|
Machine Power KW
|
7.5
|
11
|
11
|
22
|
37
|
|
Cutting Chamer mm
|
300x320
|
500x320
|
600x400
|
800x500
|
1000x550
|
|
Cutter Diameter mm
|
Φ180
|
Φ180
|
Φ220
|
Φ280
|
Φ280
|
|
Cutter Thickness mm
|
20
|
20
|
20
|
20
|
20
|
|
Shaft Speed rpm
|
18
|
20
|
18
|
16
|
16
|
|
Cutter Quantity pcs
|
16
|
25
|
30
|
26
|
32
|
|
Inlet size mm
|
650x750
|
950x820
|
1050x850
|
1200x1000
|
1400x1100
|
|
Capacity Kg
|
300~800
|
800~1200
|
1000~2000
|
2000~3000
|
4000~6000
|
Waste Textile Cloth Fabric Shredder Feature:
♦ Overload protection with automatic reversal-shredders include an electronic protection system to automatically stop and reverse the shredding action in the event of system overload. The system allows the shredder to clear itself and then continues the shredding process automatically.
♦ Advanced bearing protection system-Multiple barriers of mechanical labyrinth and conventional seals, protecting costly bearings and ensuring maximum on-line reliability.
♦ Efficiency shredding-Counter rotating shafts turn at slightly different speeds increasing the efficiency of the shear and tear action.
♦ Economical & practical-From the low speed, high torque electromechanical driving system to our robust cutting chamber design, shredder are design for energy efficiency and low maintenance cost.
♦ Low noise & Non-ballistic operating-Low speed and high torque industrial shredders operate at low noise levels without creating dust and flying particles.
♦ Severe Shock Protection-Cushion drive system absorbs minor shock loads and automatically stops the shredding action in the event a non-shreddable item is introduced into the cutting chamber.
♦ High alloy heat treated cutter for extra long life,anti-corrosive and wear-resistant.
♦ NSK tapered roller bearings, hexagonal cutter shafts designed for extra durability.
Application Picture
Waste Cloths
Waste cloths shredding to make alternative fuel.
Domestic Waste
Domestic waste shredding and dewatering to make RDF
Medical Waste
Expired medicines shredding and recycling.
