Quick Details
-
Power:
-
750kw
-
Dimension(L*W*H):
-
45*32*17m
-
Weight:
-
115T
-
Product name:
-
mobile asphalt mixing plant
-
Capacity:
-
160t/h
-
Mixer capacity:
-
2000kg/batch
-
Fuel:
-
Light oil, heavy oil, natural gas
-
Color:
-
Client's Requirement
-
Product Keywords:
-
portable mobile asphalt plant
-
After Warranty Service:
-
Field maintenance and repair service, Online support, Spare parts, Video technical support
-
Local Service Location:
-
Bangladesh, Pakistan, Philippines, Uzbekistan
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, Video technical support
-
Certification:
-
ISO&CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XIN YU
-
Voltage:
-
380V
-
Power:
-
750kw
-
Dimension(L*W*H):
-
45*32*17m
-
Weight:
-
115T
-
Product name:
-
mobile asphalt mixing plant
-
Capacity:
-
160t/h
-
Mixer capacity:
-
2000kg/batch
-
Fuel:
-
Light oil, heavy oil, natural gas
-
Color:
-
Client's Requirement
-
Product Keywords:
-
portable mobile asphalt plant
-
After Warranty Service:
-
Field maintenance and repair service, Online support, Spare parts, Video technical support
-
Local Service Location:
-
Bangladesh, Pakistan, Philippines, Uzbekistan
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, Video technical support
-
Certification:
-
ISO&CE
Introduction

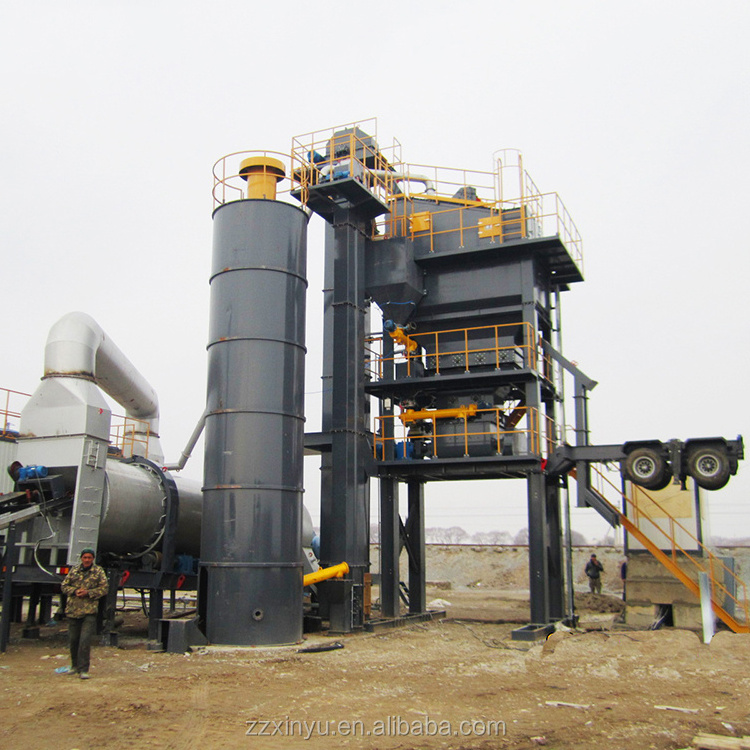

LB series asphalt batch mixing plant mainly including : cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supplier system, bitumen supply system, electrical control system, finished asphalt storage bin.
Main models and Parameters of asphalt mixing plant price:
|
Model |
YLB1000 |
YLB1500 |
YLB2000 |
YLB3000 |
YLB4000 |
|
Capacity(t/h) |
80 |
120 |
160 |
240 |
320 |
|
Total Power(kw) |
≤242 |
≤326 |
≤413 |
≤590 |
836 |
|
Voltage |
220V/380V-50HZ(Adjustable) |
||||
|
Cold Bin(m³) |
4*7 |
4*8 |
5*8 |
5*10 |
6*10 |
|
Drying Capacity(t/h) |
90 |
130 |
90 |
260 |
340 |
|
Dryer Drum Size(mm) |
Φ1600*6800 |
Φ1800*8000 |
Φ1800*8000 |
Φ2750*9000 |
Φ2800*11000 |
|
Screw conveyor Capacity(t/h) |
15 |
20 |
24 |
36 |
44 |
|
Bitumen Tank( m³) |
40 |
2*40 |
2*40 |
3*40 |
4*40 |
|
Mixer Capacity(kg) |
1000 |
1500 |
2000 |
3000 |
4000 |
|
Mixing Power(kw) |
2*18.5 |
2*22 |
2*37 |
2*45 |
2*55 |
|
Control System |
Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER) |
||||
Zhengzhou Xinyu Machine Manufacture Co., Ltd is the specialized corporation which produces large and medium construction equipment products. We specialize in the production of concrete mixing plant , asphalt mixing plant , twin shaft concrete mixer and concrete pump .
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service.
Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other 20 countries.
1. we manufacture all kinds and models of concrete mixers, asphalt mixing plant, concrete transit mixers, and other construction equipment over 30 years.We are specialized in this field.
2. we send our engineers to guide to install our equipments, and send engineers several times to visit our clients all over the world to help them solve their problems.
Q1: How long is the delivery time for my order?
A: That depends on what and how many you ordered. Within 7 days supplied from stock, and 15 days is necessary for OEM products and special shaped products..
Q2: What is your shipping method?
A: Sample order or Unit product: Ship by express such as DHL/UPS/TNT/FEDEX or by air.
Bulk order: we suggest by air or by sea.
