Quick Details
-
Name:
-
fabric pleating machine for sunray pleating zy-516 d pleated machine
-
Key words:
-
fabric pleating machine
-
Application:
-
Fabric, textile, leather
-
Effect:
-
Combined bamboo leaf & vertical bamboo leaf, wave & vertical
-
Max press speed:
-
20-150pleat/minute
-
Max. Press width:
-
1700mm or customized
-
Heating power:
-
11kW
-
Size:
-
3200*1650*1750mm
-
Weight:
-
1300kgs
-
Motor power:
-
1.1kW
Quick Details
-
Weight (KG):
-
500
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN MACHINE
-
Name:
-
fabric pleating machine for sunray pleating zy-516 d pleated machine
-
Key words:
-
fabric pleating machine
-
Application:
-
Fabric, textile, leather
-
Effect:
-
Combined bamboo leaf & vertical bamboo leaf, wave & vertical
-
Max press speed:
-
20-150pleat/minute
-
Max. Press width:
-
1700mm or customized
-
Heating power:
-
11kW
-
Size:
-
3200*1650*1750mm
-
Weight:
-
1300kgs
-
Motor power:
-
1.1kW
fabric pleating machine for sunray pleating zy-516 d pleated machine
Ms Wendy Zhou Telephone:+86-13283956135 Email: wendy@chinaocmachine.com
Product Description
Introduction
This machine is mainly used for automatic pleating and finalizing of all kinds of chemical fiber blended fabrics.The pattern is many, after processing the cloth may make the clothing, like the pyjamas, the shirt, the children's clothing, the lampshade and so on each kind of decorative articles.
Pleated patterns are: bamboo leaf pattern and straight pattern combination, bamboo leaves and pull scene, hundred fold and pull scene, wave pattern, straight pattern, etc., the design of this machine has a variety of scenery mechanism and pull scene device beautiful pattern specific, strong three-dimensional sense, special design.Well received by domestic and foreign customers, the product has a good sales in overseas.
Features
1) It’s one of the latest computer & mechanical equipment, computer control system, simple operation.
2) It can make vertical patterns, wave patterns, bamboo leaf patterns, etc of synthetic fabrics, blended fabrics, leather… for clothing, bedding and various decorations.
3) Imported PLC touch screen devices, high precision, stable and reliable.
4) Number and direction of pleats can be set in computer freely and easily, more pleating designs avaliable than model ZJ-217.
Production Details
|
Product model
|
ZJ-217
|
ZJ-416
|
ZJ-516
|
|
Maximum pleating width
|
1700mm
|
1000mm
|
1600mm
|
|
Maximum pleating speed
|
20-150 pleats/minute
|
20-300 times/min
|
20-60 times/min
|
|
Motor power
|
1.1kw
|
1.1kw
|
0.75kw
|
|
Heater power
|
11kw
|
7kw
|
7kw
|
|
Size
|
3350*1750*2080mm
|
2600*1450*1650mm
|
2400*1540*1550mm
|
|
Weight
|
1650kg
|
1000kg
|
900kg
|
We totally have model ZJ-217, ZJ-416, ZJ-516, ZJ-616, ZJ-816 fabric pleating machine.

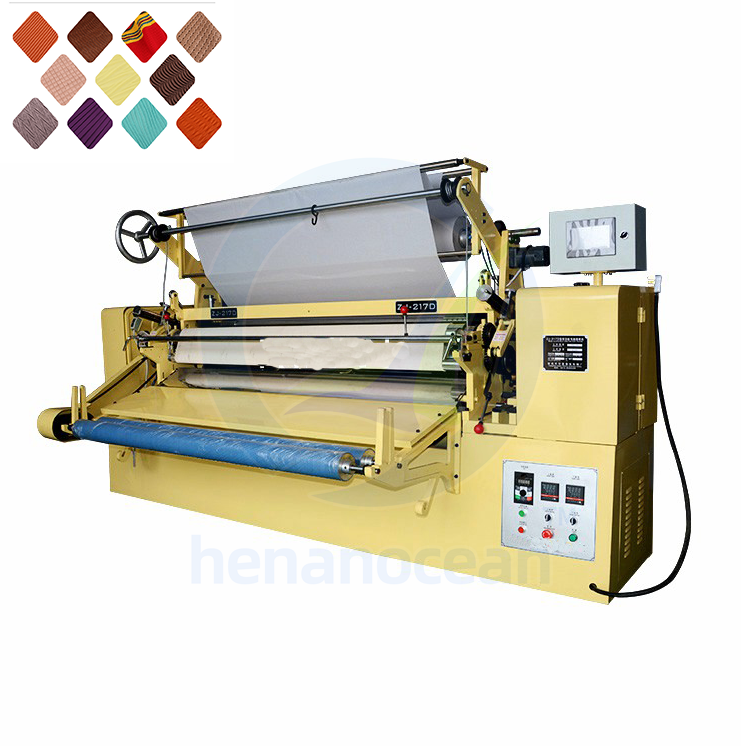

---ZJ-217 is the most functional machine and possible to equipped with computer and pneumatic system, and it is fixed with the most knife types. To produce bamboo leaf pattern, box pleat pattern, side pleat pattern, wave pleat pattern individually, users just need change knife to achieve it.
---ZJ-416 pleats single vertical pattern, which is called by toothpick pleat. It is fixed with only steel belt and steel comb.
---ZJ-516 pleats accordion but is merely applicable for sun-ray fabric piece / panel.
---ZJ-616 pleats vertical pattern too, typical is curtain. Difference between model ZJ-516 and model ZJ-616 is fabric shape. The
former is sun-ray, the latter is rectangle or square.
---ZJ-816 isn't so prevalent like the above models, it is kind of shrinking pleating. Its feature is Roller type decides pleat pattern. Please vide our product ZJ-816 machine separately. .
---ZJ-416 pleats single vertical pattern, which is called by toothpick pleat. It is fixed with only steel belt and steel comb.
---ZJ-516 pleats accordion but is merely applicable for sun-ray fabric piece / panel.
---ZJ-616 pleats vertical pattern too, typical is curtain. Difference between model ZJ-516 and model ZJ-616 is fabric shape. The
former is sun-ray, the latter is rectangle or square.
---ZJ-816 isn't so prevalent like the above models, it is kind of shrinking pleating. Its feature is Roller type decides pleat pattern. Please vide our product ZJ-816 machine separately. .
