Quick Details
-
Power Source:
-
Solar
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
zongyi
-
Model Number:
-

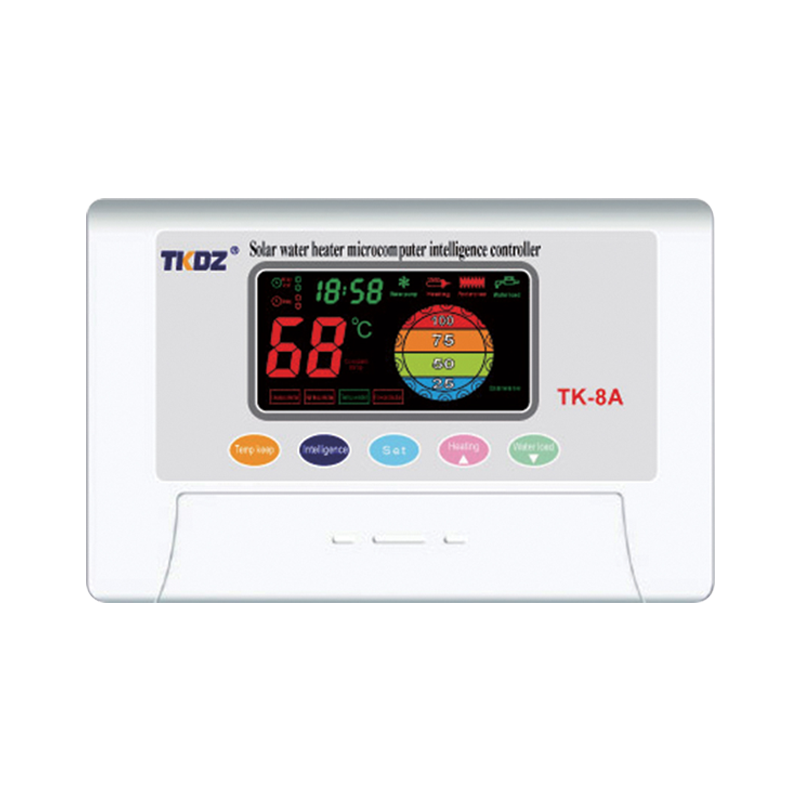

TK-8A controller
-
Product name:
-
water heaters Controller
-
Usage:
-
Control Solar Water Heater Temperature
-
Function:
-
Collect Solar Energy
-
Product Keywords:
-
Controller
-
Specification:
-
Normal
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
3 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Power Source:
-
Solar
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
zongyi
-
Model Number:
-
TK-8A controller
-
Product name:
-
water heaters Controller
-
Usage:
-
Control Solar Water Heater Temperature
-
Function:
-
Collect Solar Energy
-
Product Keywords:
-
Controller
-
Specification:
-
Normal
A Solar thermal controller can be seen as the brains of a solar water heating system.
It control and regulates the transport of heat between the storage vessel (geyser) and the solar collector.
With the use of temperature sensors the controller knows what the temperatures are at different places
within the flow of the solar heating system. This enables the controller to allow or stop the circulation
between the solar collector and the storage vessel, giving you complete control over how the system will react.
It control and regulates the transport of heat between the storage vessel (geyser) and the solar collector.
With the use of temperature sensors the controller knows what the temperatures are at different places
within the flow of the solar heating system. This enables the controller to allow or stop the circulation
between the solar collector and the storage vessel, giving you complete control over how the system will react.
Dimension: 170 mm x 125mm x 50mm
Power supply: AC 220V/50Hz or 110V/60Hz
Power consumption: <3W
Range of temperature measuring: 0~99°C
Accuracy of temperature measuring: ±2°C
Segment of water level measuring: 4
Suitable power of electric heater: 1 heater,< 2000W
Leakage cut-off current: < 10 mA/0.1s
Suitable power of water pump ( if any ): ≤500W
Suitable power of electrical heating wire ( if any ): ≤500W
Electric magnetic valve: DC 12V, pressurized valve and un-pressurized valve are available for selection
Operation pressure of pressurized valve: 0.02~0.8 MPa, suitable for city water supply
Operation pressure of non-pressurized valve: 0 MPa, suitable for cold storage tank or low pressure water supply.
Power supply: AC 220V/50Hz or 110V/60Hz
Power consumption: <3W
Range of temperature measuring: 0~99°C
Accuracy of temperature measuring: ±2°C
Segment of water level measuring: 4
Suitable power of electric heater: 1 heater,< 2000W
Leakage cut-off current: < 10 mA/0.1s
Suitable power of water pump ( if any ): ≤500W
Suitable power of electrical heating wire ( if any ): ≤500W
Electric magnetic valve: DC 12V, pressurized valve and un-pressurized valve are available for selection
Operation pressure of pressurized valve: 0.02~0.8 MPa, suitable for city water supply
Operation pressure of non-pressurized valve: 0 MPa, suitable for cold storage tank or low pressure water supply.
Installation Diagram
product display
