- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Master Well
-
Style:
-
Modern
-
Product name:
-
Garage door hardware kit
-
Installation:
-
Easy installation without welding
-
Function:
-
accessory
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Master Well
-
Style:
-
Modern
-
Product name:
-
Garage door hardware kit
-
Installation:
-
Easy installation without welding
-
Function:
-
accessory
Product Description

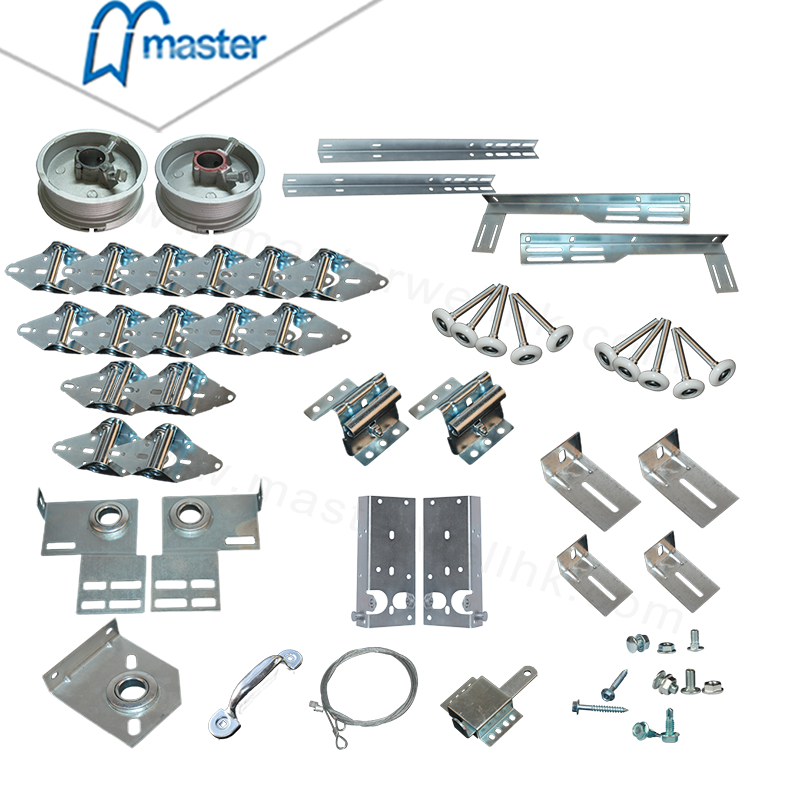

Garage Door Hardware Kit - Hinges, Rollers,cable drums,bearing brackets&other accessories.
|
Garage Door Hardware Kits for single door （8x7）
|
|
|
|
|
||||
|
NO.1 Hinge
|
NO.2 Hinge
|
Slide lock
|
cable
|
Angle Iron
|
||||
|
Top Roller Bracket
|
Bottom Bracket
|
Bearing Bracket
|
Nylon Roller
|
Side Bring Bracket
|
||||
|
Screw
|
carriage bolt
|
Cable Drum
|
Jamb Bracket
|
Steel Handle
|
||||
|
Garage Door Hardware Kits for single door （16x7）
|
|
|
|
|
||||
|
NO.1 Hinge
|
NO.2 Hinge
|
NO.3 Hinge
|
slide lock
|
cable
|
||||
|
Angle Iron
|
Top Roller Bracket
|
Bottom Bracket
|
Bearing Bracket
|
Nylon Roller
|
||||
|
Side Bearing Bracket
|
Screw
|
carriage bolt
|
Cable Drum
|
Jamb Bracket
|
||||
|
Steel Handle
|
|
|
|
|
||||
Detail Images
Garage Door Hinge
Garage Door Hinge, for Non-finger protection panel
1. Item.No for hinges: MAS0001.1, MAS0001.2, MAS0001.3, MAS0001.4
2.
Material: Zinc plating & normal galvanized steel
3. Steel thickness: 1.8 mm
4. For 4'' stem rollers only ;
5. Type: garage door hinge
NO.1 Hinge
NO.2 Hinge
NO.3 Hinge
1. Model: MAS0007, MAS0707, MAS0807, MAS0907;
2. Stem: 4''/7 ball, 7''/11 ball, 4''/ Precision 6200ZZ, 7''/ Precision 6200ZZ, 11 ball;
3.Diameter: 2'', for 2'' track only.
Top Roller Bracket
1. Top bracket model: MAS0803
2. Thickness: 2.5mm;
3. Material: steel/galvanized steel
4. For 4” stem rollers only
Cable drum
Normal lifting cable drums for torsion spring system
1. Model:
MAS0013.NL8, MAS0013.NL12, MAS0013.NL12B, MAS0013.NL10, MAS0013.NL18, MAS0013.NL18B, MAS0013.NL32, MAS0013.NL32B;
2. Max lifting height: 8', 10', 12' 18', 32';
3. Max cable diameter: 1/8'', 3/16'', 5/32'', 1/4''.
Bearing Brackets
Central bearing bracket
1. Model: MAS005
2. Distance: 84mm
3. Thickness:2.5mm
Jamb Bracket
Cable
Steel Handle
Corner Angle Flag Bracket Slide Lock
Quality Assurance
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
Certifications
FAQ
Q1: What is your MOQ?
A: NO MOQ
Q2: Can you do color spraying on the surface of torsion spring? What colors can you do?
A: Yes, we can do color spraying on the surface. As for the color, it depends on the specification&wire size of torsion spring.
Q3: What is the manufacturing capacity?
A: 500KG per month.
Q4: Can I get a sample of garage door for quality check?
A: Sample is available.
Q5: How can I get a price of needed garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q6: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q9: What is the fatigue limit of Torsion Spring? Do you conduct fatigue test on your product?
A: 10000 on-off cycles. Yes, we do fatigue test on Torsion Spring.
Q10: Could you tell me the lead time?
A: If the requested quantity is 100 sets, the lead time will be 15 days. If the requested quantity is greater than 1000 sets, the lead time will be 1 Month.
