Quick Details
-
Brand Name:
-
QD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2.2*1.6*2.4m
-
Weight (KG):
-
1250
-
Power (kW):
-
30
-
Application:
-
Tool Manufacturing And Grinding
-
Machine bed:
-
Natural Granite
-
Max diameter of workpiece (Bar):
-
32mm
-
Max diameter of workpiece (Disc):
-
200mm
-
Model:
-
QD580
-
Motor:
-
YASKAWA servo motor
-
Rolling linear guide:
-
HIWIN rolling linear guide
-
Gear:
-
NSK precision gear
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Spare parts
Quick Details
-
Wheel Size(mm):
-
50~200mm
-
Year:
-
2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2.2*1.6*2.4m
-
Weight (KG):
-
1250
-
Power (kW):
-
30
-
Application:
-
Tool Manufacturing And Grinding
-
Machine bed:
-
Natural Granite
-
Max diameter of workpiece (Bar):
-
32mm
-
Max diameter of workpiece (Disc):
-
200mm
-
Model:
-
QD580
-
Motor:
-
YASKAWA servo motor
-
Rolling linear guide:
-
HIWIN rolling linear guide
-
Gear:
-
NSK precision gear
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Spare parts
Product Description

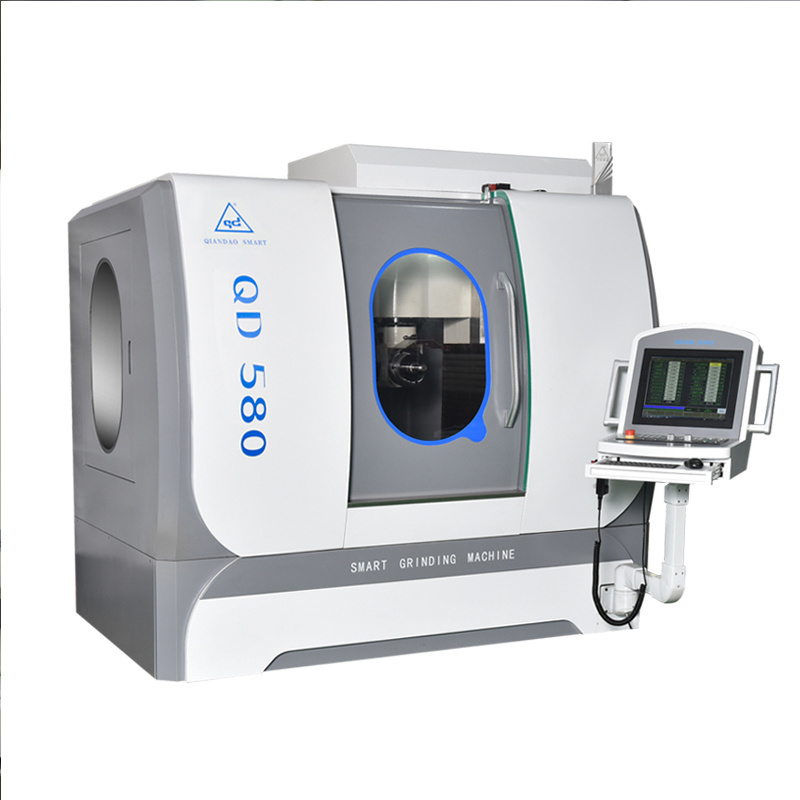

QD580 5-AXIS CNC TOOL GRINDER
QD580 is made for IT, automotive industry, aerospace industry, medical industry, and other metal grinding tools industries.
It is a high precision and efficient tool grinding equipment with excellent performance at non-standard tools.
It can produce and sharpen all kinds of end mills, drills and form cutters etc.
The machine can be optionally equipped with a 3 axis automatic loading system, anti-collison system, accurate clamping and high accuracy holder for work piece.
Machine Main Body
.
✮ The fuselage bases(X carrier,Y carrier,Z carrier and Z column) are all made of artificial granite, with unmatched thermal stability and excellent vibration absorption.
✮ Linear axis X,Y,Z adopt linear guide drive with ball-screw . It is HIWIN brand from Taiwan.
✮It has a distance between centres of 520millimeter /540millimeter and a centre height of 350millimeter.
✮With24 KW high powerful precision direct drive grinding head.
✮ Double grinding spindle head can be installed with 4-8 pieces of grinding wheels.
✮It can complete the clamping and grinding of the front, back and end face of the tool at one time.
✮Rotation spindle A-axis adopts direct-drive motor.
✮This machine is equipped with W25 precision holder which matches with SCHAUBLIN collet.
✮Clamping method of workpiece can be pneumatic.
✮ It is easy for the users to set up the grinder without going to the screen or leaning over.
✮ The remote operator can control the feed rate, and the feed rate is changed during commissioning.
✮The machine is equipped Nachi robotic arm. The automatic loading and unloading robot system which can realize full-automatic production for 24 hours.
Machinable Tool Reference
Specification
|
Model
|
QD580
|
|
CNC system
|
SYNTEC 210MA-5E
|
|
Max diameter of workpiece (Bar)
|
32 mm
|
|
Max diameter of workpiece (Disc)
|
200 mm
|
|
Max grinding length
|
260mm
|
|
Max groove depth
|
20mm
|
|
Max weight of workpiece
|
20Kg
|
|
Max motor power of grinding head(Direct drive motorized spindle )
|
24KW
|
|
The size of the grinding wheels(CBN and diamond)
|
Φ50～Φ200mm
|
|
Motorized spindle revolving speed( frequency control)
|
1000-6000rpm
|
|
Travel Y-axis
|
350(-100～250)mm
|
|
Travel of the operating platform(X/Y/Z)
|
X：520 / Y：540 / Z：350
|
|
Linear axis rapid traverse speed
|
10m/min
|
|
Workpiece spindle revolving speed (A-axis)
|
200rpm
|
|
A-axis rotation angle
|
∞
|
|
A-axis hole cone
|
ISO50
|
|
Pneumatic clamping workpiece range
|
3~20mm
|
|
SCHUNK chuck clamps the workpiece range
|
3~32mm
|
|
Max rotation speed (C-axis)
|
75rpm
|
|
C-axis rotation range
|
320°（-225°~95°）
|
|
Workpiece spindle center height
|
135mm
|
|
Workpiece spindle runout
|
≤0.005mm
|
|
Grinding head spindle runout
|
≤0.005mm
|
|
Cylinder clamping force adjustment range
|
800-1000kg
|
|
Linear resolution
|
0.00lmm
|
|
Rotating axis resolution
|
0.00l°
|
|
Cooling pump power
|
3P
|
|
Cooling tank volume
|
200 L
|
|
Source
|
AC 380V 50HZ (three-phase)
|
|
Total machine power
|
30KW
|
|
Machine size
|
2200×1600×2400mm
|
|
Machine weight( approximately)
|
5T
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
