Quick Details
-
Drilling Speed:
-
/
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WWW.YCJIXIE.COM
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1140x500x300mm
-
Weight (KG):
-
180 KG
-
Usage:
-
column type of drilling
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Automatic Grade:
-
Manual
-
Controlling Mode:
-
manual
-
MACHINR TOOLS:
-
Drilling machine
-
Weight:
-
75kgs
-
Certification:
-
CE ISO
-
Power:
-
550W
Quick Details
-
type:
-

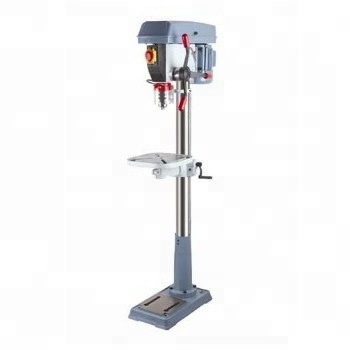

Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
16
-
Range of Spindle Speed(r.p.m):
-
25 - 3000 r.p.m
-
Drilling Speed:
-
/
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WWW.YCJIXIE.COM
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1140x500x300mm
-
Weight (KG):
-
180 KG
-
Usage:
-
column type of drilling
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Automatic Grade:
-
Manual
-
Controlling Mode:
-
manual
-
MACHINR TOOLS:
-
Drilling machine
-
Weight:
-
75kgs
-
Certification:
-
CE ISO
-
Power:
-
550W
1. High Rigid Construction
2. Easy Operation and Extended Durability
3. Different Sizes and Replaceable Worktables
4. Considerable Safety Design
5. chuck guard is standard accessories
6. Electromagnetic switch
7. Heating protector in the motor
8. Micro-switch in the belt cover ensure safety
9 . Optional micro-switch for CE requirement
|
Model |
ZJ4113 |
ZJ5116 |
ZJ5120 |
ZJ5125 |
ZJ5132 |
|
Drilling Capacity |
13 mm |
16mm |
20mm |
25mm |
32mm |
|
Sleeve Travel |
50mm |
85mm |
85mm |
120mm |
120mm |
|
Spindle Taper |
B16 |
B16 |
MT2 |
MT3 |
MT4 |
|
Spindle Speeds Steps |
5 Steps |
16steps |
16steps |
12steps |
12steps |
|
Spindle Speed |
580-2650 rpm |
180-2770 /220-3320 rpm |
180-2770 /220-3320 rpm |
150-2450 /180-2940 rpm |
150-2450 /180-2940 rpm |
|
Column Diameter dia. |
46 mm |
72mm |
72mm |
80mm |
92mm |
|
Height |
580 mm |
1600mm |
1200mm |
1710mm |
1710mm |
|
Worktable Size |
160 x 160 mm |
290x290mm /dia.290mm |
290x290mm |
350x3350mm |
480x420mm |
|
Base Size |
290 x 290 mm |
460x272mm |
460x272mm |
500x375mm |
560x450mm |
|
Motor Power |
250 w |
550w |
750w |
1100w |
1100w |
|
Net / Gross Wieght |
16 / 17 kg |
70/74kg |
75/80kg |
120/128kg |
145/153kg |
|
Packing Size |
440x340 x220mm |
1105x445 x260mmmm |
1105x445 x260mm |
1415x645 x300mm |
1415x645 x300mm |
