2. Open from 0 bar for low pressure system
3. High frequency of flying lead coil
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
COVNA
-
Working Temperature:
-
-10 to 80℃
-
Working Pressure:
-
0 to 10 bar (145psi)
-
Position:
-
2 way
-
Coil:
-
Single Coil Control
-
Voltage:
-
DC12V, 24V, AC24V, 110V, 220V
-
Valve Operation:
-
Normally Closed or Normally Open
-
Connection:
-
G, NPT, BSP, BSPP
-
Seal:
-
NBR, EPDM, PTFE
-
Certificate:
-
CE, RoHS, TUV, ISO9001
Quick Details
-
Port Size:
-
3/8'' - 2''
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
2W31B Solenoid Valve
-
Brand Name:
-
COVNA
-
Working Temperature:
-
-10 to 80℃
-
Working Pressure:
-
0 to 10 bar (145psi)
-
Position:
-
2 way
-
Coil:
-
Single Coil Control
-
Voltage:
-
DC12V, 24V, AC24V, 110V, 220V
-
Valve Operation:
-
Normally Closed or Normally Open
-
Connection:
-
G, NPT, BSP, BSPP
-
Seal:
-
NBR, EPDM, PTFE
-
Certificate:
-
CE, RoHS, TUV, ISO9001
Our Advantages
2. Open from 0 bar for low pressure system
3. High frequency of flying lead coil

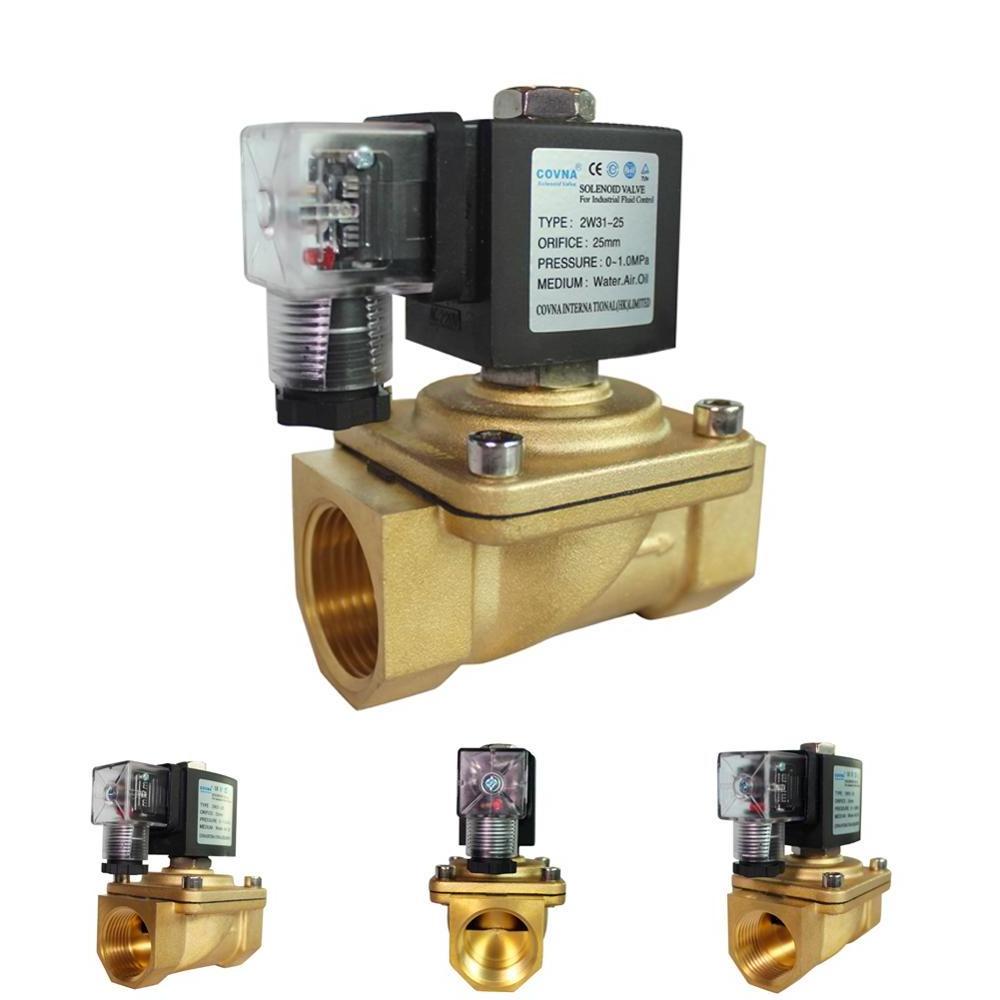

Product Paramenters
|
Item
|
solenoid valve
|
|
Characteristics
|
1. Direct lifting diaphragm construction.
2. Open from 0 bar for low pressure system 3. High frequency of flying lead coil |
|
Medium
|
Air, water, steam, oil, etc
|
|
Temperature
|
NBR: -10~80℃ ; EPDM: -10~120℃; VITON: -10~150℃; PTFE: -10~180℃
|
|
Pressure
|
0 to 10 bar
|
|
Port Size Range
|
1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
|
|
Orifice(mm)
|
12, 15, 20, 25, 32, 40, 50
|
|
Connection
|
G, NPT, Flanged, BSP, BSPP
|
|
Voltage
|
DC-12V, 24V ;
AC-24V, 110V, 240V/60Hz; 110V, 220V/50Hz
|
|
Voltage Tolerance
|
+/- 10%
|
|
Material
|
Body: brass or stainless steel;
Seal: VITON, NBR, EPDM; Armature tube: stainless steel304; Stop: SS403F; Springs: SS304 Shading rings: SS304 |
Dimension
Hot Sale Products
Item: 2W31 Solenoid Valve
Connection: Threaded
Pressure Range: 10 bar
Temperature Range: -10 to 80℃
Material Options: Brass, SS, Plastic
Item: HKP Waterproof Solenoid Valve
Connection: Threaded
Pressure Range: 10 bar
Temperature Range: -10 to 180℃
Pressure Range: 10 bar
Temperature Range: -10 to 180℃
Material Options: Brass, SS, Plastic
Item: HKKB High Pressure Solenoid Valve
Connection: Threaded
Pressure Range: 100 to 250 bar
Temperature Range: -10 to 180℃
Pressure Range: 100 to 250 bar
Temperature Range: -10 to 180℃
Material: Stainless steel
Item: HK0018 Food Grade Solenoid Valve
Connection: Tri-clamp
Pressure Range: 10 bar
Temperature Range: -10 to 180℃
Material: Stainless steel 304/316/316L
Item: HK10 High Temperature Solenoid Valve
Connection: Threaded
Pressure Range: 10 bar
Temperature Range: -10 to 300℃
Pressure Range: 10 bar
Temperature Range: -10 to 300℃
Material: Brass or Stainless steel
Item: HKFP Anti-corrosion Solenoid Valve
Connection: Threaded
Pressure Range: 2 bar
Temperature Range: -10 to 80℃
Pressure Range: 2 bar
Temperature Range: -10 to 80℃
Material: PTFE
