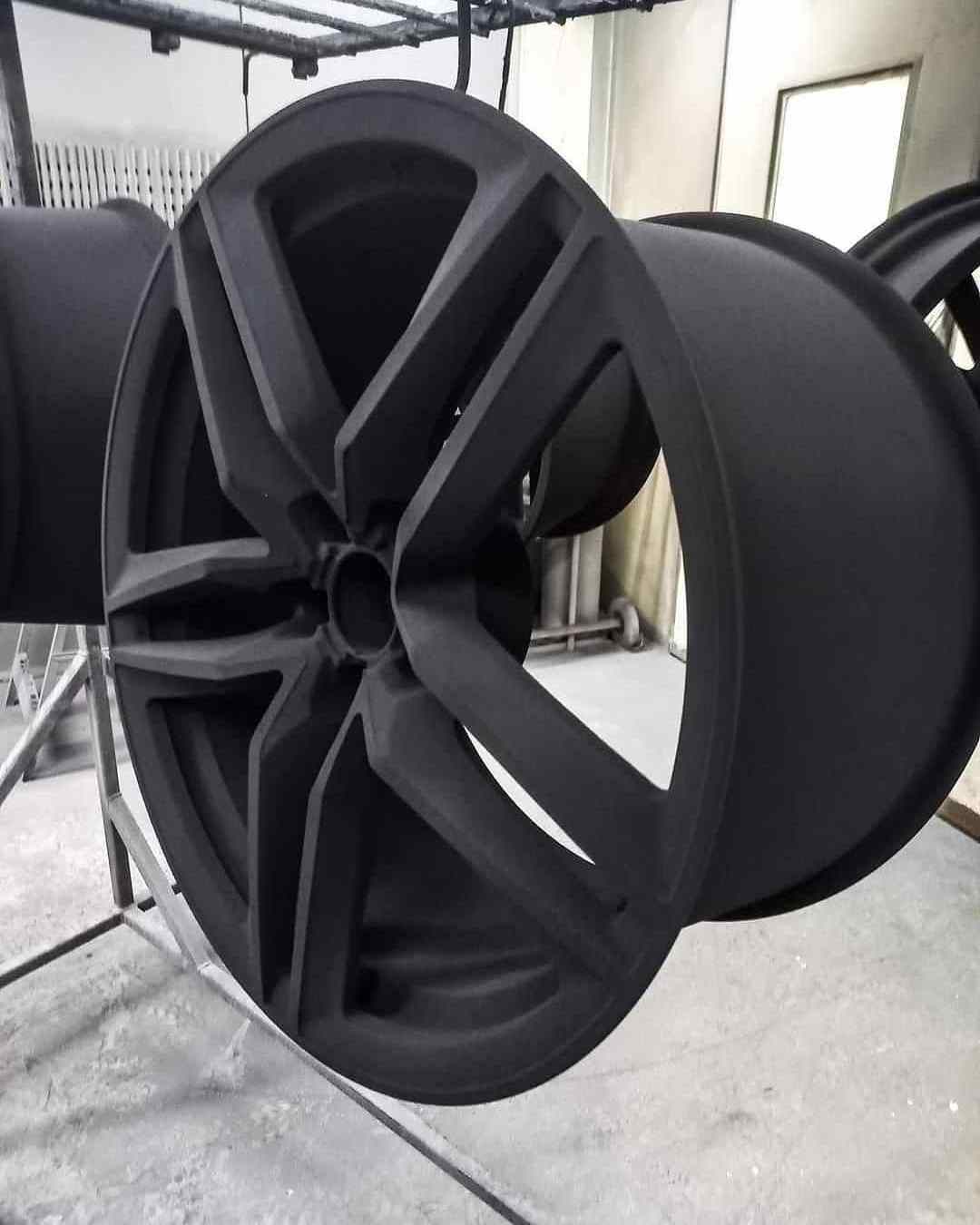

Electrostatic Spray Black Matte Pigment Powder Coating For Car Wheel Rim

Electrostatic Spray Black Matte Pigment Powder Coating For Car Wheel Rim

The colors you see will vary depending on the display, but we will customize the color according to the Ral color card.

Brief description:

Epoxy, hybrid, polyurethane and other systems, suitable for indoor and outdoor complex textures of fine textured powder coatings.

Features:

1, Colorful or quaint

2,  Can mask substrate defects

3, In the case of stable coating equipment and process, the flower form is uniform and stable, and the reproducibility is good.

Mainly used for: Furniture Shelf Iron Hardware Fitness Equipment Lamps Security Doors Safes Leisure Facilities Industrial Equipment.

Product Series

in the interior or exterior, products such as sand, wrinkles, netting, cotton, hammer, moire, point spread, anti-stone, metal powder, antique copper

Application condition

Fine Art Texture Powder y powder coatings are available for the following equipment:

1. Fine art textured powder for corona electrostatic coating

Coating thickness: 60-150 microns, recommended film thickness 50-80 microns

Baking conditions: According to the type of product curing system, please refer to the attached instructions for the product

Powder physical properties

Film properties: All tests were carried out using a 0.8 mm thick degreasing and rust-removed cold-rolled steel sheet with a film thickness of 50-80 μm.

Mechanical properties: pencil hardness GB/T 6739-1996 H-2H
Adhesion (cross-cut method) GB/T 9286-1998 Level 0
Bending test GB/T 6742-1986 ≤ 2mm
Impact test GB/T 1732-1993 ≥7mm
Corrosion resistance test: salt spray test GB/T1771-1991>500 hours No effect, and the corrosion width at the fork does not exceed 2mm
Damp heat test GB/T1740-1979>1000 hours No change
Temperature resistance 100 ° C / 48 hours (white template) gloss retention excellent color retention Color difference ≤ 0.5
Weather resistance Accelerated photoaging test QUV-No 13 (240h, 8h/60°C illumination, 4h/50°C condensation GB/T14522-1993) gloss retention ≥80%, no obvious discoloration
Product packaging: carton packaging, lined with two layers of PVC plastic bags, each net weight 20KG.
Storage conditions: polyester/TGIC powder coating should be stored in a dry, ventilated room at 35 °C, while avoiding direct sunlight. If stored in an air-conditioned room, the powder must be stored at room temperature or at the same temperature (temperature) as the spraying equipment. To avoid the return of moisture, the powder can be stored stably for 12 months under this condition, and the test can be re-examined in the overdue period. If the result meets the requirements, it can still be used.
Hygiene and Safety Powder coatings All materials do not contain toxic substances, no toxic gases are generated during baking, but should avoid inhaling dust during use. Operators should wear dust masks and minimize skin contact with powder coatings. The paint attached to the skin can be washed with soap.
