Quick Details
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
120 KG
-
Place of Origin:
-
Other Country
-
Brand Name:
-
Zhejiang Xingsheng
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Volume
-
Power (kW):
-
4 kW
-
After-sales Service Provided:
-
Online support
-
Capacity:
-
5-40T/H
-
Application scope:
-
High Viscosity Product
-
Power(W):
-
0.75KW~45KW
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
0 - 2900 r.p.m
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
120 KG
-
Place of Origin:
-
Other Country
-
Brand Name:
-
Zhejiang Xingsheng
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Volume
-
Power (kW):
-
4 kW
-
After-sales Service Provided:
-
Online support
-
Capacity:
-
5-40T/H
-
Application scope:
-
High Viscosity Product
-
Power(W):
-
0.75KW~45KW
1. Grade: SUS304,SUS316
2. Certification: ISO9001, SGS, CTI, ROHS
|
Product Name
|
Powder liquid high shear dispersing emulsifying
|
|
Material
|
stainless steel
|
|
Color
|
nickel white
|
|
Standard
|
DIN GB ISO JIS BA ANSI
|
|
Grade
|
SUS304, SUS316
|

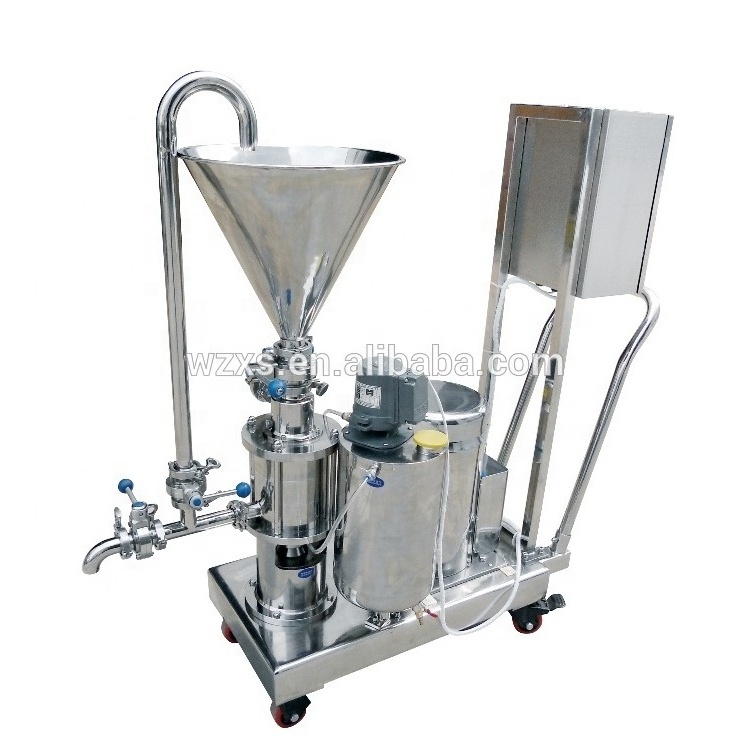

The powder liquid high shear dispersing emulsifier is composed of main machine body and gear of mixing pump, which are vertically installed. Through a double-layer wall pipe, the liquid materials and solid materials are separately pumped in, which can prevent them form agglomerating before entering into the main body. When the liquid enters into the main machine body of mixer at high speed, vacuum will produce in the center of rotor and stator to suck the solid materials. The solid materials will be evenly sucked in through the regulation of valve under the hopper. It has brief design and multiple functions. It ca rapidly and evenly mix multiple solid materials without containing the air. The mixing is enough and the product can be recycled. Medium is dispersed, sheared and emulsified in the shortest time by the machine, and the diameter range of the particles gets smaller so that fine and stable products are produced.
|
Model
|
Capacity(T/H)
|
Power(Kw)
|
Speed(r/min)
|
|
TRS-80
|
0-1.5
|
4
|
2900
|
|
TRS-100
|
0-3
|
5.5
|
2900
|
|
TRS-120
|
0-4
|
7.5
|
2900
|
|
TRS-140
|
0-5
|
11/15
|
2900
|
|
TRS-165
|
0-8
|
18.5
|
2900
|
|
TRS-180
|
0-12
|
22
|
2900
|
|
TRS-185
|
0-18
|
30
|
2900
|
|
TRS-200
|
0-25
|
45
|
2900
|
|
TRS-210
|
0-35
|
55
|
2900
|
|
TRS-230
|
0-50
|
75
|
2900
|
|
TRS-245
|
0-75
|
90
|
2900
|
Factory
Workshop
Our Workshop
Packing Details : Packing, Plywood case
Delivery Details : 3-30 days after order
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
