Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Labthink
-
Model Number:
-
W3/031
-
test method:
-
cup method
-
Certificates:
-
ISO 9001 & CE
-
Standards:
-
ISO 2528, ASTM E96, ASTM D1653, TAPPI T464
-
Test Range:
-
0.1~10,000 g/m2/24h
-
Test Accuracy:
-
0.01 g/m2/24h
-
Test Resolution:
-
0.0001 g
-
Temperature range:
-
15°C~55°C
-
Humidity range:
-
10%RH~98%RH
-
Specimen thickness:
-
≤3 mm
-
Specimen Size:
-
Diamter 74 mm
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Customized support:
-
Test Item Customization
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Labthink
-
Model Number:
-
W3/031
-
test method:
-
cup method
-
Certificates:
-
ISO 9001 & CE
-
Standards:
-
ISO 2528, ASTM E96, ASTM D1653, TAPPI T464
-
Test Range:
-
0.1~10,000 g/m2/24h
-
Test Accuracy:
-
0.01 g/m2/24h
-
Test Resolution:
-
0.0001 g
-
Temperature range:
-
15°C~55°C
-
Humidity range:
-
10%RH~98%RH
-
Specimen thickness:
-
≤3 mm
-
Specimen Size:
-
Diamter 74 mm

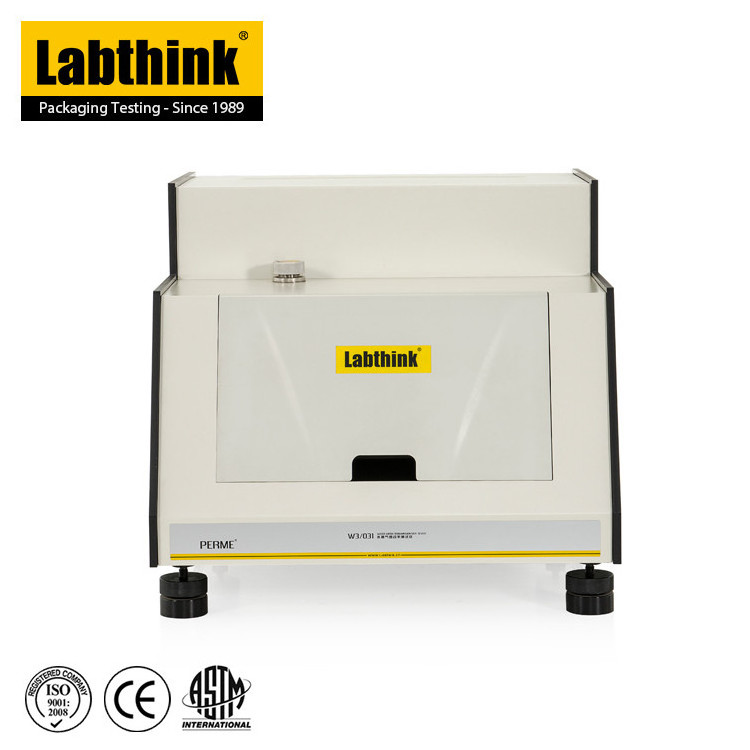

W3/031 is professionally applicable to the water vapor transmission rate test of film specimens. It is equipped with three individual test dishes and the testing process is completely automatic and conforms to international standards.
Features
Standard periodically weighing method and auto zero before each weighing guarantee the accuracy and uniformity of the testing data
Wide range and high-precision of automatic temperature and humidity control to support various combinations of non-standard test conditions
Mechanical Weighing System ensures accurate and stable test data
Embedded computer control system provides safer and more reliable data management as well as test operation
Intelligent reminding of sensor calibration
Convenient Embedded help document
Standards
This test instrument conforms to the following standards:
ISO 2528, GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003
Applications
Including plastic films, plastic composite films, paper-plastic composite films, geomembranes, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, breathable waterproof films and many others
Sheeting
Including engineering plastics, rubber, waterproof building materials and thermal insulation materials, e.g. PP, PVC, PVDC and nylon
Paper and Paper Board
Including paper and paper board
Technical Specifications
Note: this is just a sample packaging. We Labthink cares all instruments that we are sending to customers.
Romote Service
Lifelong free of charge! unpacking, Installation, debugging, training, maintainance, etc
Field Service
Include installation, debugging, operation and application training, calibration, repairing
Local Service Centers
More than 30 International service providers give you promote services.
Labthink China
Labthink USA
Located in Medford, MA; has 30+ employees, including sales team, after-service team and shown room.
Labthink Labotary
360 m 2 test area, 120 testing instruments, 20+ experienced lab technicians. Provide test data as well as soluction services
Debugging Department
Each Lathink instrument are carefully checked and debugged by the engineers.
