Quick Details
-
Model Number:
-
GLT500
-
Product:
-
Liquid Level Pressure Sensor
-
Application:
-
water tank , deep well , sea , sewage, oil , diesel etc measurement
-
Measurement range::
-
1~200m H2O
-
output signal::
-
4~20mA 0~5Vdc 1~5Vdc 0~10Vdc
-
power supply::
-
10~30Vdc 8~30Vdc 5Vdc
-
Electrical connection::
-
Waterproof outgoing line
-
material of pressure membrane::
-
316LSS
-
protection::
-
IP68
-
certificate:
-
CE,EX
-
oem:
-
acceptable
-
Certification:
-
CE, ROSH
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GAMICOS
-
Model Number:
-
GLT500
-
Product:
-
Liquid Level Pressure Sensor
-
Application:
-
water tank , deep well , sea , sewage, oil , diesel etc measurement
-
Measurement range::
-
1~200m H2O
-
output signal::
-
4~20mA 0~5Vdc 1~5Vdc 0~10Vdc
-
power supply::
-
10~30Vdc 8~30Vdc 5Vdc
-
Electrical connection::
-
Waterproof outgoing line
-
material of pressure membrane::
-
316LSS
-
protection::
-
IP68
-
certificate:
-
CE,EX
-
oem:
-
acceptable
-
Certification:
-
CE, ROSH

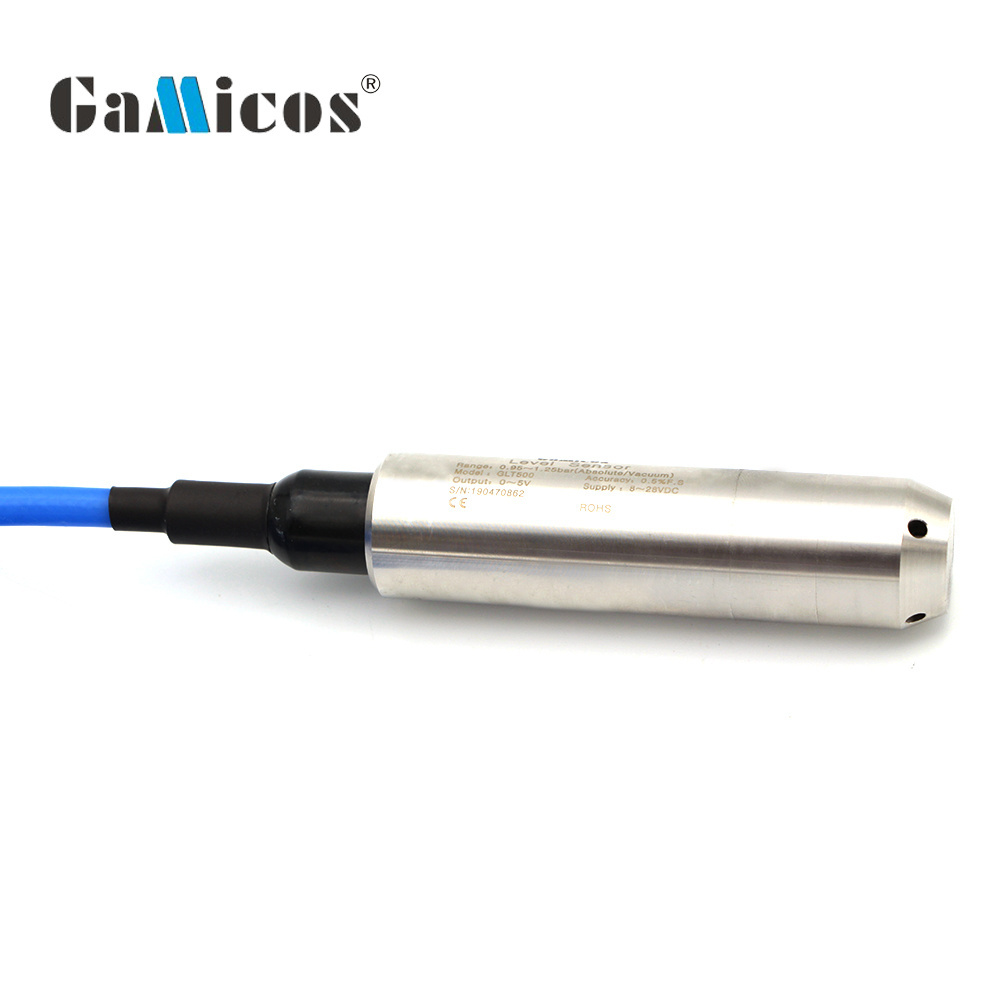

GLT500 gamicos high precision stainless steel 4-20mA liquid water level sensor
Introduction
♦ Measuring principle: submersible level sensors provide continuous liquid level measurement by sensing the hydrostatic pressure produced by the height of liquid above the sensor.
♦The GLT500 has a slim 16-27mm diameter 316 stainless steel protective housing and a nose cap for protection of the sensor diaphragm.The shielded cable with atmospheric vent tube, and providing a 4-20 mA and others output signal such as RS485, 0-5V. The IP68 waterproof means it can be used in water for a long time.
Specifications
| Measurement Range | 0...1…200mH2O |
|
| Pressure type | Gauge/ Absolute | |
| Accuracy | ±0.5%F.S(Standard) ±0.25%F.S ±0.1%F.S(OEM) | |
| Stability | 0.2%F.S | |
| Material | Probe:stainless steel Cable:PE/PU/PTFE(OEM) | |
| Signal output | 4~20mA 0/1~5VDC 0~10VDC 0.5-4.5VDC RS485 80mv | |
| Power supply | 10~30VDC 5VDC | |
| Protection | IP68 | |
| Compensation Temp. | -10~70℃ |
Details
Ordering Guide
Customer Photos
Customer Feedback
Certification
FAQ
1. Can I connect the display instrument?
Yes. We have two display instruments. One is the GLT560 with 2088 housing for good explosion-proof performance. The other is the GPY118 display control instrument with high and low alarm function.
2. Is there a warranty period?
Yes. Our warranty period is one year.
3. Can the GLT500 measure temperature?
Yes, the temperature measurement function can be customized.
4. Is there a vent cable?
Yes. Built-in vent cable.
5. Can I customize the 220V power supply?
Yes, you can customize the power supply.
6. What is the shipping date?
Usually shipped within 7 business days.
7. Can you provide OEM services such as marking?
Yes, we can.
