Quick Details
-
Model Number:
-
10BL60
-
Product name:
-
WP-10BL60 ESC
-
Cont. Current::
-
Fwd. 60A / Rev. 60A
-
Peak Current::
-
Fwd.360A / Rev. 360A
-
Output shaft diameter::
-
3.1 mm.
-
Resistance::
-
0.001Ω
-
Battery::
-
4-9 Cells NiMH, 2-3S Lipo
-
Cars Applicable::
-
1:10 On-road/Off-road/Buggy/Monster
-
Size:
-
45 x 38 x 32 mm.
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hobbywing
-
Model Number:
-
10BL60
-
Product name:
-
WP-10BL60 ESC
-
Cont. Current::
-
Fwd. 60A / Rev. 60A
-
Peak Current::
-
Fwd.360A / Rev. 360A
-
Output shaft diameter::
-
3.1 mm.
-
Resistance::
-
0.001Ω
-
Battery::
-
4-9 Cells NiMH, 2-3S Lipo
-
Cars Applicable::
-
1:10 On-road/Off-road/Buggy/Monster
-
Size:
-
45 x 38 x 32 mm.
Product Description
Title goes here.
|
Item No.:
|
|
|
Product Size:
|
|
|
|
FOR Slash Arrma Senton HuanQi 727 Remo Hobby VKAR 10SC HPI RC CAR
|
1.Hobbywing QUICRUN 10BL60 RC Sensored 60A ESC 2-3S Lipo Brushless for 1/10 Touring Car/Buggy / F1 / Drift Car 3650 Rocket 540 Motor
Features:
1.Hobbywing Brushless ESC: Hobbywing QUICRUN RC Sensored 110BL60 60A is a reliable,race-ready ESC.The compact size is suitable for
various car chassis.
The built-in auto identification system recognizes sensored or sensorless brushless motors.Core competition program for excellent control feel & multiple programmable items.
2. Adjustable: 8 steps of timing adjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4
steps of initial brake force adjustments 9 steps of acceleration (punch) adjustment, from "soft" to "very aggressive" to fit for
different kinds of cars, tires and tracks.
3.Multiple Protections Include: Low voltage cut-off protection for Lipo or NiMH battery ,Over-heat protection ,Throttle signal
loss protection, Motor lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability
and durability have been greatly improved.
4.One-button to Set: Easy to reset all parameters to the factory default settings.
5.Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo: 8.5T
(1/10On-road),10.5T (1/10 Off-road)
Descriptions:
Hobbywing QUICRUN 110BL60 RC Sensored Brushless 60A ESC is designed for entry-level and intermediate players to create 1/10th Touring Buggy F1 Drift car & 1/12 On-road for competition
Specifications:
Brand Name: Hobbywing
Product name: 10BL60 Sensored
Sensored: Optional
Battery: 2-3s Lipo battery
Fan size: 25*25*10mm
Fan Voltage range: 5-8.4V
BEC Output: 6V/2A (Linear Mode)
2. Adjustable: 8 steps of timing adjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4
steps of initial brake force adjustments 9 steps of acceleration (punch) adjustment, from "soft" to "very aggressive" to fit for
different kinds of cars, tires and tracks.
3.Multiple Protections Include: Low voltage cut-off protection for Lipo or NiMH battery ,Over-heat protection ,Throttle signal
loss protection, Motor lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability
and durability have been greatly improved.
4.One-button to Set: Easy to reset all parameters to the factory default settings.
5.Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo: 8.5T
(1/10On-road),10.5T (1/10 Off-road)
Descriptions:
Hobbywing QUICRUN 110BL60 RC Sensored Brushless 60A ESC is designed for entry-level and intermediate players to create 1/10th Touring Buggy F1 Drift car & 1/12 On-road for competition
Specifications:
Brand Name: Hobbywing
Product name: 10BL60 Sensored
Sensored: Optional
Battery: 2-3s Lipo battery
Fan size: 25*25*10mm
Fan Voltage range: 5-8.4V
BEC Output: 6V/2A (Linear Mode)
Cars Applicable: 1/10th Touring Buggy F1 Drift car & 1/12 On-road for running and daily practice.
Dimensions: 33x28x33mm (with fan height)
Weight: 105g (including line weight)

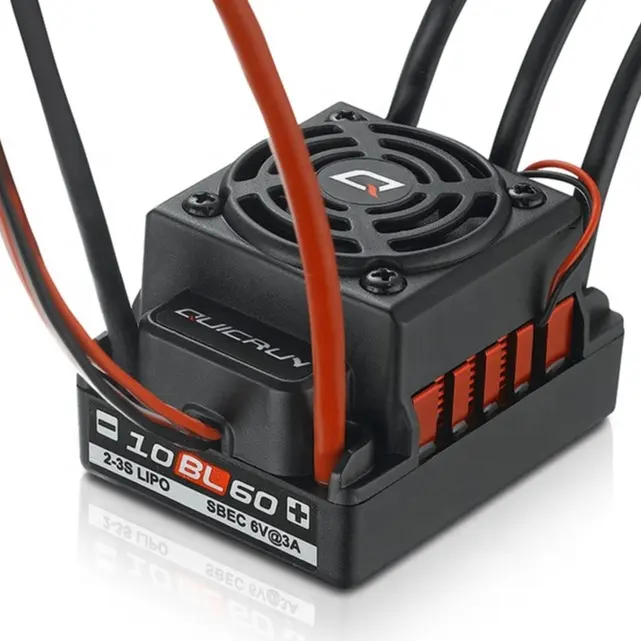

2.HobbyWing QuicRun WP 10BL60 RC ESC Brushless Waterproof 60A Sensorless for 1/10 RC Car Buggy Truck Monster Truggy Rock Crawler
Features:
1.Water-proof and Dust-proof: The Hobbywing WP-10BL60 60A ESC suitable to all-weather sport races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.External Programming Port: Easy to connect to the Program Card when setting the ESC
3.Multiple Protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection
4.Performance: Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment; 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks
5.Application: This Hobbywing brushless ESC suitable for 1/10th short course trucks, buggies, trucks, and monster trucks.The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this RC Brushless ESC compatible with various servos
Description:
HobbyWing QuicRun WP-10BL60 RC sensorless brushless waterproof 60A ESC suitable for 1/10 RC Car Buggy Truck Monster Truggy Rock Crawler RC4WD,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players
Specifications:
Brand Name: HobbyWing
Model: WP-10BL60
Cont. Current: Fwd. 60A / Rev. 60A
Peak Current: Fwd. 360A / Rev. 360A
Resistance: 0.001Ω
Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster
Battery: 4-9 Cells NiMH, 2-3S Lipo
Motor Limit:
For 2S Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with the KV<6000
Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the KV<4000
Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000.
BEC Output: 6V/3A (Linear Mode)
Cooling Fan:
From battery directly without regulating
The stock fan can work with 2S and 3S Lipo
Dimensions: 48.5(L)X38(W)X32(H)mm
Weight: 90g
Package Included:
1x HobbyWing ESC
1x Adhesive Label Paper
1x Cable Binding Tape
1x Manual (English)
1x Original Box
