The feed press roller is driven by an advanced hydraulic motor. The direction and speed can be adjusted to handle branches of all
shapes and sizes easily.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
538
-
Product name:
-
PTO Wood Chipper
-
Power Type:
-
PTO
-
Application:
-
Crush Branches
-
Raw material:
-
Waste Wood Branch
-
Color:
-
Customer Requirements
-
OEM:
-
Avaliable
-
Advantage:
-
High-yield,durable
-
Keywords:
-
PTO chipper
-
Blade:
-
4 Pcs
-
Max splitting diameter:
-
22cm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
zhangsheng
-
Dimension(L*W*H):
-
1200*1100*2100
-
Weight (KG):
-
538
-
Product name:
-
PTO Wood Chipper
-
Power Type:
-
PTO
-
Application:
-
Crush Branches
-
Raw material:
-
Waste Wood Branch
-
Color:
-
Customer Requirements
-
OEM:
-
Avaliable
-
Advantage:
-
High-yield,durable
-
Keywords:
-
PTO chipper
-
Blade:
-
4 Pcs
-
Max splitting diameter:
-
22cm

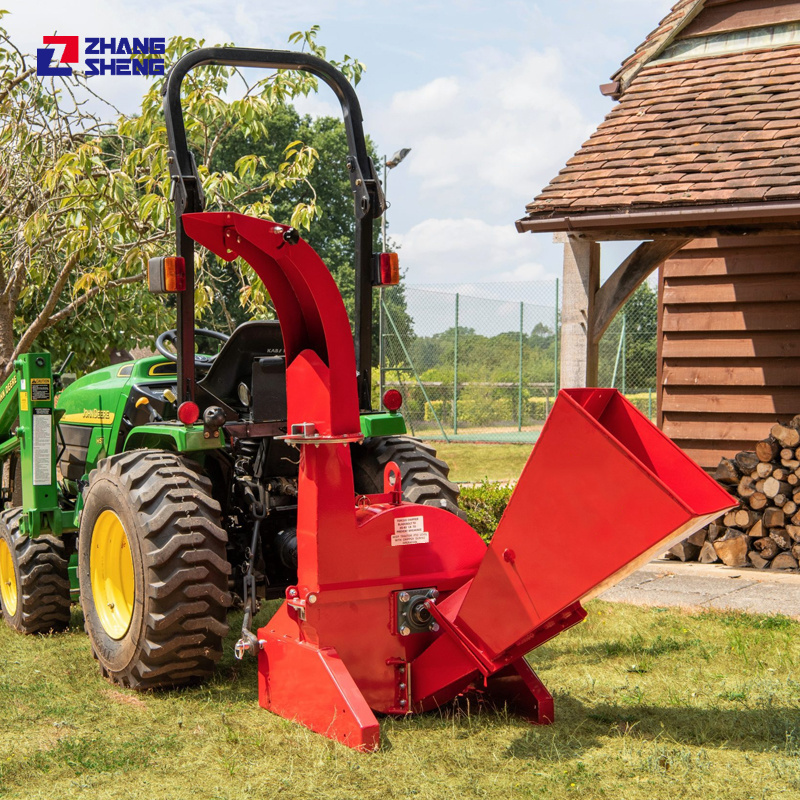

Zhang Sheng offers our newly designed exclusive up to 8.7 inches (22 cm) PTO driven wood chipper with automatic hydraulic feed. The wood chipper is designed to provide landowners with an economical and well-designed wood chipper. This is a very powerful wood chipper aiming to be the best value wood chipper in its class.
|
Model
|
ZSPS42S
|
ZSPS42R
|
ZSPS62R
|
ZSPS92R
|
|
Flywheel diameter
|
630mm
|
630mm
|
740mm
|
940mm
|
|
Flywheel thickness
|
18mm
|
18mm
|
25mm
|
35mm
|
|
Flywheel weight
|
50kg
|
50kg
|
80kg
|
170kg
|
|
NO. of blade
|
4
|
4
|
4
|
4
|
|
blades material
|
65mn
|
65mn
|
65mn
|
Cr12
|
|
blades size
|
210*60*9mm
|
210*60*9mm
|
240*60*10mm
|
320*100*16mm
|
|
feed hopper size
|
500*500mm
|
500*500mm
|
580*580mm
|
620*620mm
|
|
exit size
|
100mm
|
100mm
|
150mm
|
220mm
|
|
package size
|
1140*910*1260
|
1140*910*1260
|
1200*1100*2100
|
1300*1150*2150
|
|
package weight
|
225kg
|
340kg
|
538kg
|
655kg
|
|
power required
|
35-60
|
35-60
|
60-80
|
75-100
|
Features
The rotor is processed by CNC lathe and undergoes strict dynamic balance inspection to ensure stable serving. Large fan on the
back with a speed of over 540RPM, which can smoothly discharge the wood chips.
back with a speed of over 540RPM, which can smoothly discharge the wood chips.
The chipper uses 4 high-strength manganese steel blades, spaced 90° apart. Blades can be replaced very quickly thanks to the
clamshell rotor housing design.
clamshell rotor housing design.
With the large inlet, it can easily process many branches, reducing manual pruning work.
The discharge chute is designed to rotate 360°, which makes it more flexible regardless of the discharge direction of the chipper.
Equipped with a rotating deflector at the end of the discharge chute, it can control the position where the wood chips are
ejected.
Equipped with a rotating deflector at the end of the discharge chute, it can control the position where the wood chips are
ejected.
Packing & Delivery
Packed in high quality metal frame, with board on the bottom for support andextra plastic wrap for protection. Ensure that the machine is delivered to you intact and without damage, and start production immediately.
Case show
Our products are exported to Europe and other countries,and have won praise from many dealers and users.
Company Introduction
Certifications
As a professional OEM and exporter, Zhangsheng has exported to morethan 45 countries. We have a full range of wood chippers. All wood chippers are CE certifiedby TUV-SUD and TUV-Rheinland. The total number of chippers exported to Europeand North America each year exceeds 1500 units.
