Quick Details
-
Model Number:
-
CYBK0106
-
Product name:
-
Water pump pressure switch
-
Type:
-
Pressure switch
-
Range:
-
-0.1MPa...0kPa~10kPa...100MPa
-
Pressure type:
-
G(Gage),A(Absolute),S(Seal gauge)
-
Accuracy:
-
0.1(Customized) 0.25(Typical) 0.5(Maximum)
-
Long term stability:
-
±0.1%FS/Year(Typical) ±0.2%FS/Year(Maximum)
-
Medium temperature:
-
-40℃~80℃
-
Suppply Voltage:
-
15VDC~30VDC
-
Load resistance:
-
Current type:≤(U-12)/0.02(Ω)
-
Protection level:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
HUATIAN
-
Model Number:
-
CYBK0106
-
Product name:
-
Water pump pressure switch
-
Type:
-
Pressure switch
-
Range:
-
-0.1MPa...0kPa~10kPa...100MPa
-
Pressure type:
-
G(Gage),A(Absolute),S(Seal gauge)
-
Accuracy:
-
0.1(Customized) 0.25(Typical) 0.5(Maximum)
-
Long term stability:
-
±0.1%FS/Year(Typical) ±0.2%FS/Year(Maximum)
-
Medium temperature:
-
-40℃~80℃
-
Suppply Voltage:
-
15VDC~30VDC
-
Load resistance:
-
Current type:≤(U-12)/0.02(Ω)
-
Protection level:
-
IP65
Full range optional intelligent water pump controller 12v air compressor water pressure switch
Recommend Products
Products Description

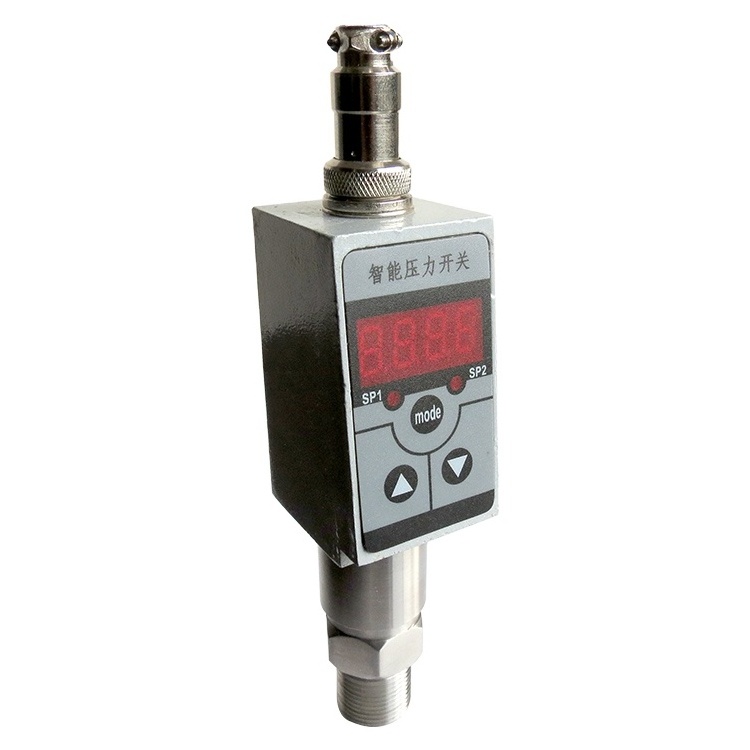

CYBK0100 SERIES PRESSURE STWICH
Details Images
Features And Application
◆ The meter key can be adjusted and set freely
◆ Adjust without dead zone
◆ Full range optional
◆ High stability and reliability
Product Paramenters
|
Range
|
-0.1MPa…0kPa～10kPa…100MPa
|
|
|
|
|||
|
Overload pressure
|
Below 10MPa ≤ 2 times full scale
|
10MPa and above ≤ 1.5 times full scale
|
|
|
|||
|
Pressure type
|
G（Gage）、A（Absolute）、S（Seal gauge）
|
|
|
|
|||
|
Accuracy level
|
0.1（Customized）
|
0.25（Typical）
|
|
0.5（Maximum）
|
|||
|
Long term stability
|
±0.1%FS/year（Typical）
|
±0.2%FS/year（Maximum）
|
|
|
|||
|
Zero temperature drift
|
±0.03%FS/℃（≤100kPa）
|
±0.02%FS/℃（＞100kPa）
|
|
|
|||
|
Sensitivity temperature drift
|
±0.03%FS/℃（≤100kPa）
|
±0.02%FS/℃（＞100kPa）
|
|
|
|||
|
Compensation temperature
|
0℃～50℃（≤100kPa）
|
-10℃～70℃（＞100kPa）
|
|
|
|||
|
Medium temperature
|
-40℃～80℃
|
|
|
|
|||
|
Suppply Voltage
|
15VDC～30VDC
|
|
|
|
|||
|
Output signal
|
Relay output
|
Relay output +4mA～20mA
|
High and low level output
|
|
|||
|
Load resistance
|
Current type：≤（U-12）/0.02(Ω)
|
|
|
|
|||
|
Protection level
|
IP65
|
|
|
|
|||
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● fire Internet of things
