Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
Enameled aluminum wire
-
Size:
-
0.2-8.0mm
-
Product character:
-
Excellent heat shock, good insulating effect, easy to winding
-
Thermal Class:
-
130-220C
-
Certificate:
-
ROHS
-
MOQ:
-
3kg
-
Delivery Time:
-
7-20 Days
Quick Details
-
Application:
-
for transformer/electrical motor rewinding, Instrument, motor
-
Conductor Material:
-
Aluminum
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
Enameled aluminum wire
-
Size:
-
0.2-8.0mm
-
Product character:
-
Excellent heat shock, good insulating effect, easy to winding
-
Thermal Class:
-
130-220C
-
Certificate:
-
ROHS
-
MOQ:
-
3kg
-
Delivery Time:
-
7-20 Days

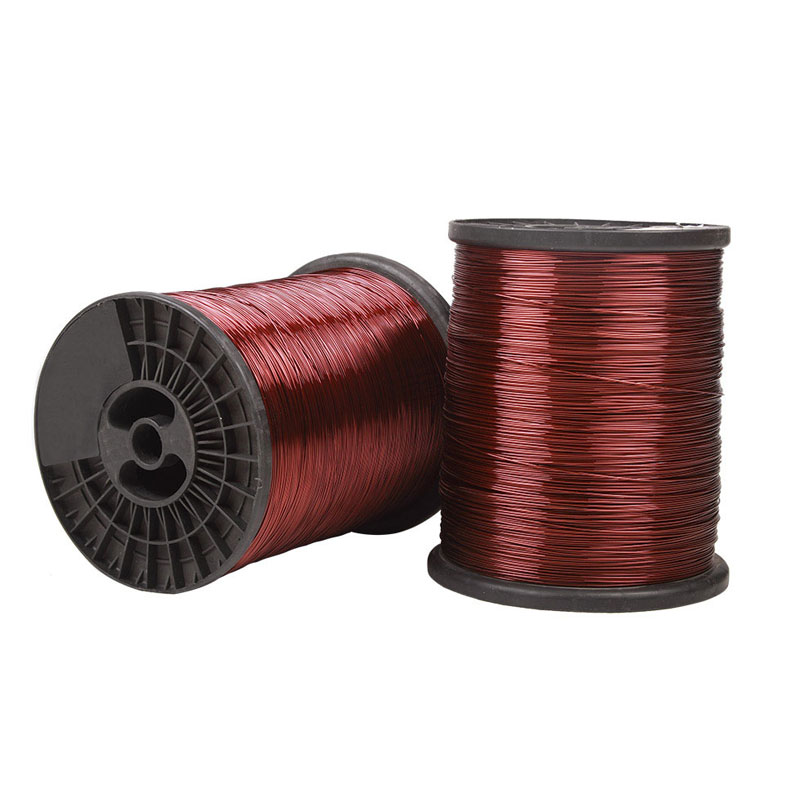

Enamelled aluminum round wire:
* Polyester Enameled aluminum round wire(PEW);
* Polyurethane Enameled aluminum round wire(UEW);
* Polyesterimide enameled aluminum round wire(EIW);
* Polyesterimide over-coated with polyamide-imide enameled aluminum round wire(EIW/AIW);
|
Name
|
Enameled Aluminum Wire
|
|
Conductor
|
aluminum
|
|
Dimension
|
0.16-9.2mm
|
|
Thermal Class(℃)
|
120(Class E); 180(Class H); 200(Class C); 220(Class C+); 240(Class HC)
|
|
Insulation Thickness
|
G1; G2; G3; G4
|
|
Certification
|
UL
|
|
Standard
|
IEC, NEMA, GB, JIS
|
|
Packing
|
PT-15 - PT-270 or ply-wood spool
|
|
Application
|
transformer; motor; generator; modern instrument; welding machine and so on
|
Advantage Aluminum Enameled Wire:
1. Compared with the copper enameled wire, enameled aluminum wire is easier to be winded, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
2. Due to the good insulating effect of aluminum film layer, it’s heat-resistant temperature can be 20 degrees higher than that of the copper wire;
3. The greatest benefit of using aluminum is that it is 1/3 lighter than copper which significantly lower the production costs, secondly it can attach to the solids easily, and thirdly it can also reduce the freight and operation during transportatio
JiangSu DZX Alloy Co.,Ltd was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.
We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.
The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality".
