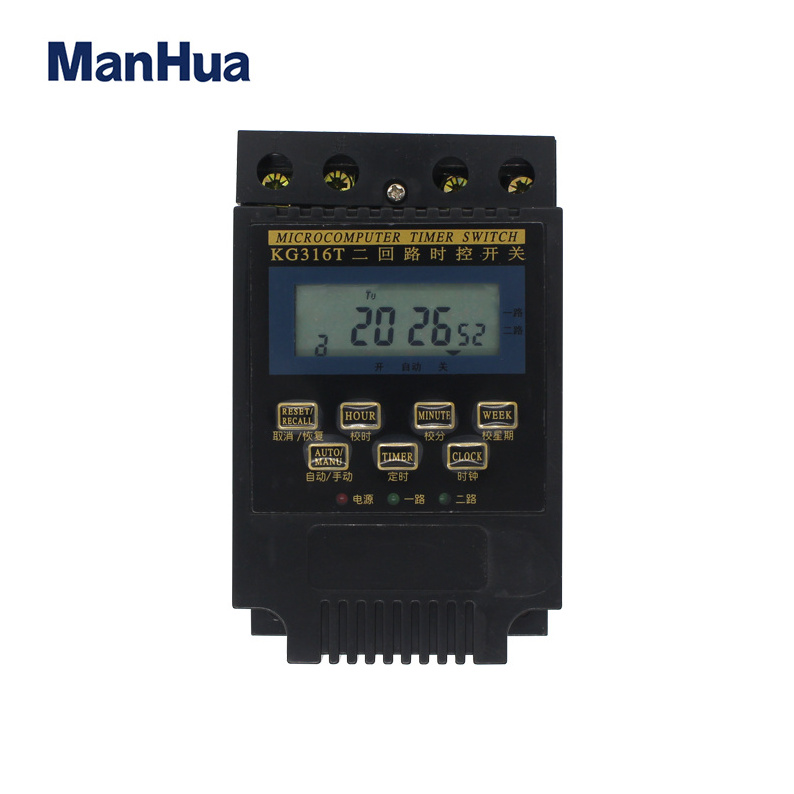

Manhua KG316T 220V Street Light Control Time Digital Timer Switch

1- It widely applies to the time control of the equipments,

streetlight,warehouse, farming, heating and TV.

2- The battery inside, of the industrial clall chips, is precisely control,

highly against disturb

♦Characteristics

1- Power Voltage 220-20VAC, other voltages could be made

2- Inside Battery 1.2VDC/40MAH ,rechargeable battery

3- Electricity Consumption Appr. 1.5VA

4- Time error less than 1 second per day

5- 17 ON OFF/18 ON OFF Per Day

6- Environment Temperature minus 25 degrees until 60degree

7- Environment Humidity 45-85% RH

8- Mechanical Lifetime 3,000,000 times

12- Installation with screw M3,3pcs

♦Opertion ways

1- Press the buttom of clock,meanwhile press"date,hour, min" to adjust the time

2- Set on/off time

♦Step button the program set

1) press(manuel) button the screen show"auto-on-auto-off-auto"

2) press(set)button start to set the on,(show 1on)

3) press(week)button set the week,

4) press(hour,min)button set "hour,min",

5) press(set)button start to set the off

6) press(hour,min)button set "hour,min",

7) repeat step2-6 set more on/off time

8) press(clock) after setting, return to the local time

"if set mistake or cancel, please press the (cancel) button.

It could not set when show"------"

3- check;press(check)button, to check the time set

♦Attention

1- It should tighten the screw, to against the contact heating when the big current

2- Control input wires is 220VAC 50/60HZ,it could not work with the voltage of 380VAC

3- The voltage DC12V,24V,AC110V,250V, could be made

4- The control is on red light when the electricty is on.

Red light and green light is on the same time when the load has the eletricity output.

5- The time set, it could not be mixed to set.
