Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TANGSHI
-
Voltage:
-
380V
-
Power:
-
250W/spindle
-
Dimension(L*W*H):
-
2250(L)*1050(W)*1650(H)mm
-
Weight:
-
680KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-

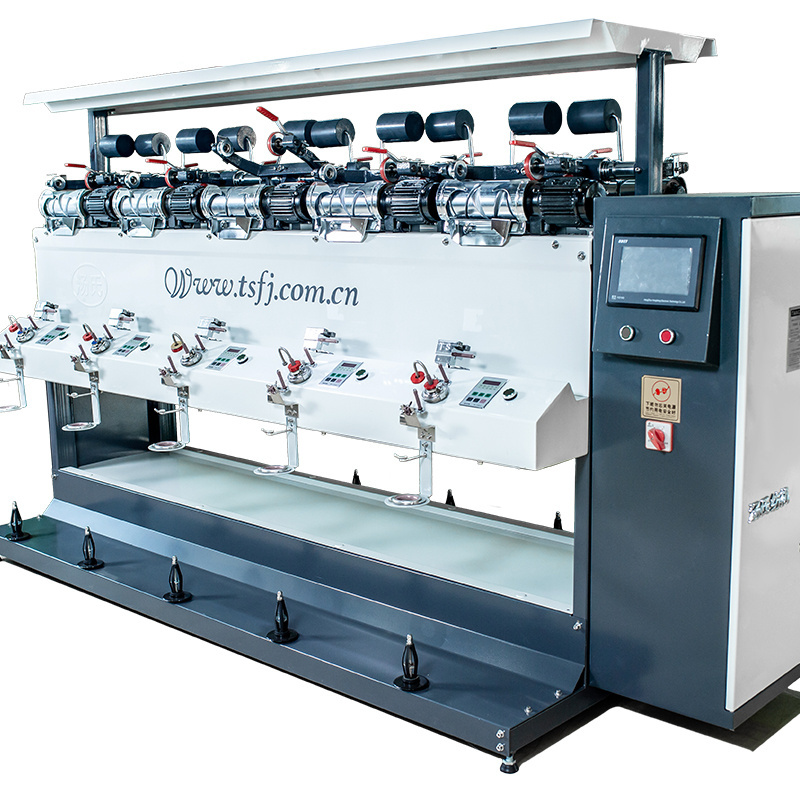

New sewing thread cone winding machine
-
Product Type:
-
Embroidery Thread
-
Spindle:
-
4 Spindles
-
Color:
-
-
Winding speed:
-
200-1000m/min
-
Application Field:
-
Textile Industry
-
Take Up Bobbin:
-
Customized
-
Machine Type:
-
Single side
-
Package:
-
Wooden Case
-
Certification:
-
ISO9001:2008 / CE
Quick Details
-
Application:
-
winding sewing thread,nylon,embroidery thread
-
Production Capacity:
-
max.1000m/min
-
Memory Capacity:
-
999999m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TANGSHI
-
Voltage:
-
380V
-
Power:
-
250W/spindle
-
Dimension(L*W*H):
-
2250(L)*1050(W)*1650(H)mm
-
Weight:
-
680KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
New sewing thread cone winding machine
-
Product Type:
-
Embroidery Thread
-
Spindle:
-
4 Spindles
-
Color:
-
-
Winding speed:
-
200-1000m/min
-
Application Field:
-
Textile Industry
-
Take Up Bobbin:
-
Customized
-
Machine Type:
-
Single side
-
Package:
-
Wooden Case
-
Certification:
-
ISO9001:2008 / CE
|
Bobbin type: |
5 "(170mm) |
|
Layout |
Double-side, can be 12-96 spindles |
|
Power Supply |
Three phases 380V 50/60HZ |
|
Driving |
Every spindle per motor |
|
Power Consumption |
0.09KW/spindle |
|
Take-up package |
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
|
Yarn tension and waxing device |
Every spindle has a yarn tension and waxing device |
|
Auto Stop Device |
Each spindle install auto stop device |
|
Electronic Anti-Stack |
Inverter control |
|
Cleaner device |
Every spindle has a Mechanical Knife yarn cleaner |
|
Electronic Yarn Cleaner |
Optional installed |
|
Air Splicer |
Optional installed |
|
Blower cleaner |
Optional installed |
|
Lighting System |
Contain |
|
Dimensions |
L 11850 x W 1 15 0 x H 1 50 0 mm |
EQUIPMENTS:
Inverter (MITSUBISHI Brand), Drum(Super plastic Alloy),
Motor(Ning bo), Controller(Hang Zhou )
PARAMETERS:
1. Drive: every spindle per motor
2. Winding speed: 300-1000 M/min
3. Has function of auto stop when yarn break.
4. Package Dia≤ 250mm; Take-up Traverse: 150mm.
5. Each spindle with length counter;
6. Advanced control panel.
Drum
Spindle head
Motor
Liquid crystal display
Power master switch
Fan
Tensioner
Creel
Switch button
Sensor
TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing
rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns,
Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or
Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can
alleviate the intensity of labour for next processing work.
Q: What is the real winding speed for this machine
A: It's depends on how the performance and take up package formed, if the take up package formed well, then you can increase the speed, normal winding machine is 600-800m/min
Q: My bobbin is some kind of special, is that workable on the machine?
A: We will make the spindle head base on the bobbin that customer provide.
Q: The yarn always break, how to solve it?
A: 1. Check the tension first, if the tension is too big, just reduce some weight
2.Check the yarn whether it's in the right path.
3.Check the quality of yarn, sometimes yarn breakage due to the weak yarn
Q: How to solve the problem if the package become too hard and start bounce?
A: Try to reduce the tension or speed
Q: Does your machine shake when full load running?
A: No, our machine frame is very strong, it's quite stable
Packaging&Shipping
Before loading,the machines are covered with waterproof plastic first,then packed in solid wooden case.
