Quick Details
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
10 - 600 mm
-
Throat Depth (mm):
-
120 mm
-
Brand Name:
-
Miharting
-
Power (kW):
-
11 kW
-
Weight (KG):
-
6000 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3800x1850x2100
-
Year:
-
2022
-
Product name:
-
CNC hydraulic guillotine shearing machine
-
Color:
-
Costomized
-
Material:
-
Steel Material
-
Cutting thickness:
-
6mm
-
Cutting length:
-
3200mm
-
Cutting angel:
-
0.5-2°
-
Throat depth:
-
120mm
-
Keyword:
-
Press Hydraulic
-
Advantage:
-
High Efficiceny
-
Function:
-
Cutting
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
0.5-2
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
10 - 600 mm
-
Throat Depth (mm):
-
120 mm
-
Brand Name:
-
Miharting
-
Power (kW):
-
11 kW
-
Weight (KG):
-
6000 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3800x1850x2100
-
Year:
-
2022
-
Product name:
-
CNC hydraulic guillotine shearing machine
-
Color:
-
Costomized
-
Material:
-
Steel Material
-
Cutting thickness:
-
6mm
-
Cutting length:
-
3200mm
-
Cutting angel:
-
0.5-2°
-
Throat depth:
-
120mm
-
Keyword:
-
Press Hydraulic
-
Advantage:
-
High Efficiceny
-
Function:
-
Cutting

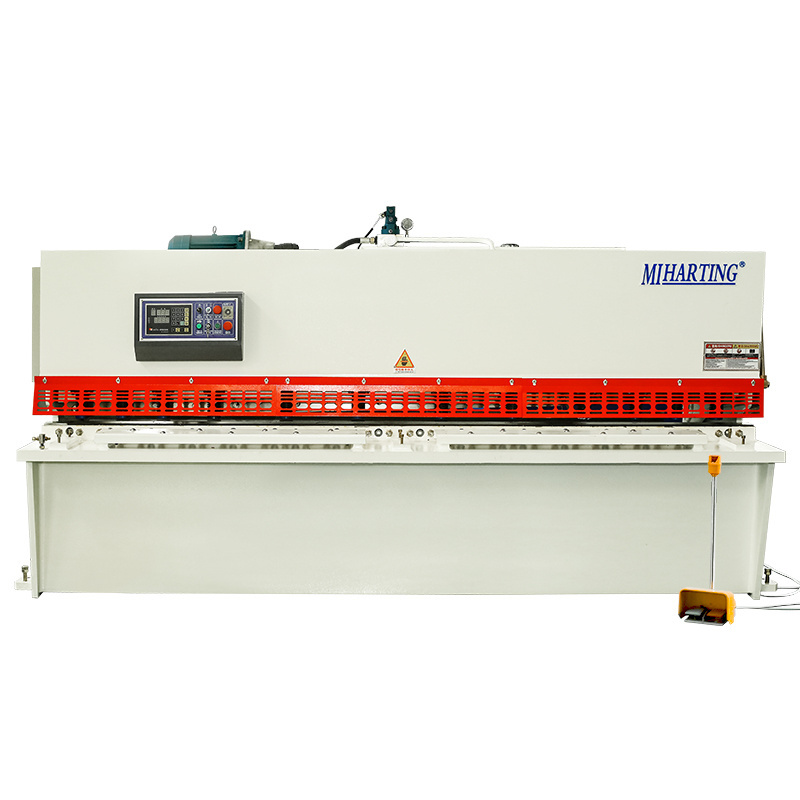

QC11K-6*3200 Heavy Duty Automatic CNC Hydraulic Guillotine Shearing Machine Sheet Metal Cutting Machine
Standard Configuration
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environmen.
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system.
German Bosch modular hydraulic system special for shearing machine, full loop controlling the synchronization of ram. High frequency hydraulic system, low failure rate, machine will run fast and stably.
The blade gap is electrically adjusted.
Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
Good-looking structure and reduce the possibility of oil leakage.
Specification
|
Type
|
Cutting length (mm)
|
cutting capacity mild steel 450N/mm²
|
cutting capacity stainless steel 700N/mm²
|
Cutting angle(°)
|
Throat Depth（mm)
|
Back gauge travel(mm)
|
Motor power (kw)
|
Overall Diamentions LxWxH(mm)
|
Weight (Ton)
|
|
10x2500
|
2500
|
10
|
5
|
2
|
120
|
10-600
|
11
|
3100x1850x2100
|
6.5
|
|
10x3200
|
3200
|
10
|
5
|
2
|
120
|
10-600
|
11
|
3800x1850x2100
|
8
|
|
10x4000
|
4000
|
10
|
5
|
2
|
120
|
10-600
|
18.5
|
4600x1850x2100
|
12
|
|
10x5000
|
5000
|
10
|
5
|
2
|
120
|
10-800
|
18.5
|
5700x2000x2500
|
16
|
|
10x6000
|
6000
|
10
|
5
|
2
|
120
|
10-800
|
18.5
|
6700x2000x2600
|
24
|
|
12x2500
|
2500
|
12
|
6
|
2.5
|
120
|
10-600
|
18.5
|
3100x2000x2200
|
8.5
|
|
12x3200
|
3200
|
12
|
6
|
2.5
|
120
|
10-600
|
18.5
|
3800x2000x2200
|
10
|
