Quick Details
-
Frame Material:
-
aluminum alloy
-
Width of Tent:
-
3m-10m
-
Fabric Color:
-
white
-
Roof fabric:
-
850g/sqm double coated PVC
-
Max Wind Allowed:
-
100km/h
-
Fire-retardant Grade:
-
M2,B1,DIN4 102
-
Usage:
-
wedding ceremony, party,event,exhibition
Quick Details
-
Brand Name:
-
MST
-
Place of Origin:
-
Jiangsu, China
-
Name:
-
3m-10m span pagoda pavillion tent for outdoor fair and event
-
Frame Material:
-
aluminum alloy
-
Width of Tent:
-
3m-10m
-
Fabric Color:
-
white
-
Roof fabric:
-
850g/sqm double coated PVC
-
Max Wind Allowed:
-
100km/h
-
Fire-retardant Grade:
-
M2,B1,DIN4 102
-
Usage:
-
wedding ceremony, party,event,exhibition
============================>>Size Specification<<===========================
Width: from 3 meters to 10meters
Length: equal to the width
Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)
| Type |
Span width (m) |
Length (m) |
Eave height (m) |
Ridge height (m) |
Main frame profile (mm) |
| MST-3 | 3 | 3 | 2.5 | 4.1 | 65x65 |
| MST-4 | 4 | 4 | 2.5 | 4.7 | 65x65 |
| MST-5 | 5 | 5 | 2.5 | 5.1 | 65x65 |
| MST-6 | 6 | 6 | 2.5 | 5.6 | 65x65 |
|
The width, length and eave height can be custom made. |
|||||
=============================>>Detail Specification<<=========================
Our tent structure is well designed for strong wind and snow load, and it is easy to assembly and disassembly.
- Frame struss : hard pressed extruded aluminium 6061/T6(15HW) which can last more than 15 years.
- Fabric cover : high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector : strong hot-dip galvanized steel
- Allowed temperature condition : -30 degree Celsius~+70 degree Celsius
- Wind load: max.100km/h (can be reinforced)
- Snow load : 25kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
=============================>>Product Show<<=============================
Meister Tent Standard Tent could be widely used for temporary outdoor exhibitions,wedding parties, festival celebrations, conferences, sports and other events, and also be a good solution of temporary warehouse, workshop and emergency relief and other purposes.

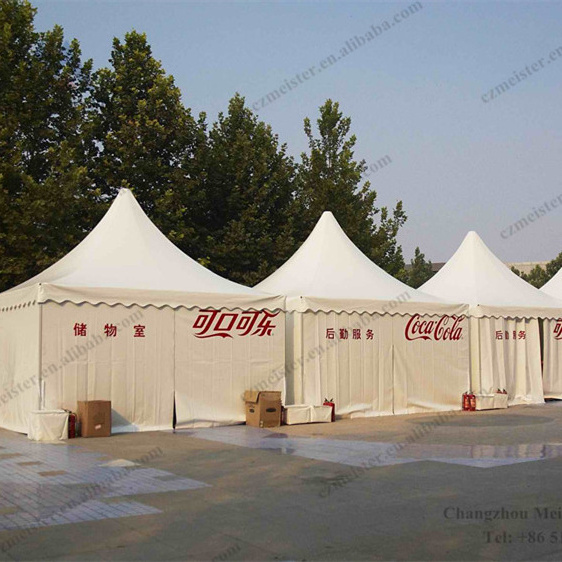

3m-10m span pagoda pavilion tent for outdoor fair and event
3m-10m span pagoda pavilion tent for outdoor fair and event
3m-10m span pagoda pavilion tent for outdoor fair and event
==========================>>Optional Accessories<<==========================
2)Clear PVC cover(roof + sidewalls)
5)Door: glass door, metal door, shutter door, sliding door, etc
6)Flooring system
7)Lining and curtain
8)Other suppliers, such as door canopy, chairs, tables, lighting, air condition, etc
==== ==========================>>Fixing Ways<<==============================
- main frame packed in bubble sheet, large paper or woven bag
- small accessories packed in PVC bags or woven bag
