- Product Details
- {{item.text}}
Quick Details
-
Frequency Range (Hz):
-
50 - 2000 Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SoWay
-
Model Number:
-
SW1060
-
Overall Diameter:
-
270
-
Bolt circle Diameter:
-
258
-
Winding Depth:
-
25
-
Depth:
-
160
-
Surround material:
-
Foam edge
-
Surround Design:
-
Semicircle
-
Magnet:
-
Ferrite
-
Vioce Coil Diameter:
-
60.5
-
Winding Material:
-
EISV
-
X-MAX:
-
8.5mm
Quick Details
-
Car Fitment:
-
E.GO
-
RMS Power:
-
800W
-
Max. SPL:
-
800W
-
Frequency Range (Hz):
-
50 - 2000 Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SoWay
-
Model Number:
-
SW1060
-
Overall Diameter:
-
270
-
Bolt circle Diameter:
-
258
-
Winding Depth:
-
25
-
Depth:
-
160
-
Surround material:
-
Foam edge
-
Surround Design:
-
Semicircle
-
Magnet:
-
Ferrite
-
Vioce Coil Diameter:
-
60.5
-
Winding Material:
-
EISV
-
X-MAX:
-
8.5mm
|
CONTINUOUS POWER HANDLING (RMS)
|
|
|
800W
|
|
|||
|
RECOMMENDED AMPLIFIER POWER (RMS)
|
|
|
400-800W
|
|
|||
|
NOMINAL IMPEDANCE (ZNOM)
|
|
|
4Ω
|
|
|||
|
OVERALL DIAMETER (A)
|
|
|
10.63IN/270MM
|
|
|||
|
MOUNTING HOLE DIAMETER (B)
|
|
|
9.45IN/240MM
|
|
|||
|
BOLT HOLE CIRCLE DIAMETER (C)
|
|
|
10.16IN/258MM
|
|
|||
|
MOTOR OUTER DIAMETER (D)
|
|
|
6.15IN/156MM
|
|
|||
|
MOUNTING DEPTH (E)
|
|
|
6.301N/160MM
|
|
|||
|
NET WEIGHT
|
|
|
13.26LB/6KG
|
|
|||
|
PRODUCT DESCRIPTION
|
|
|

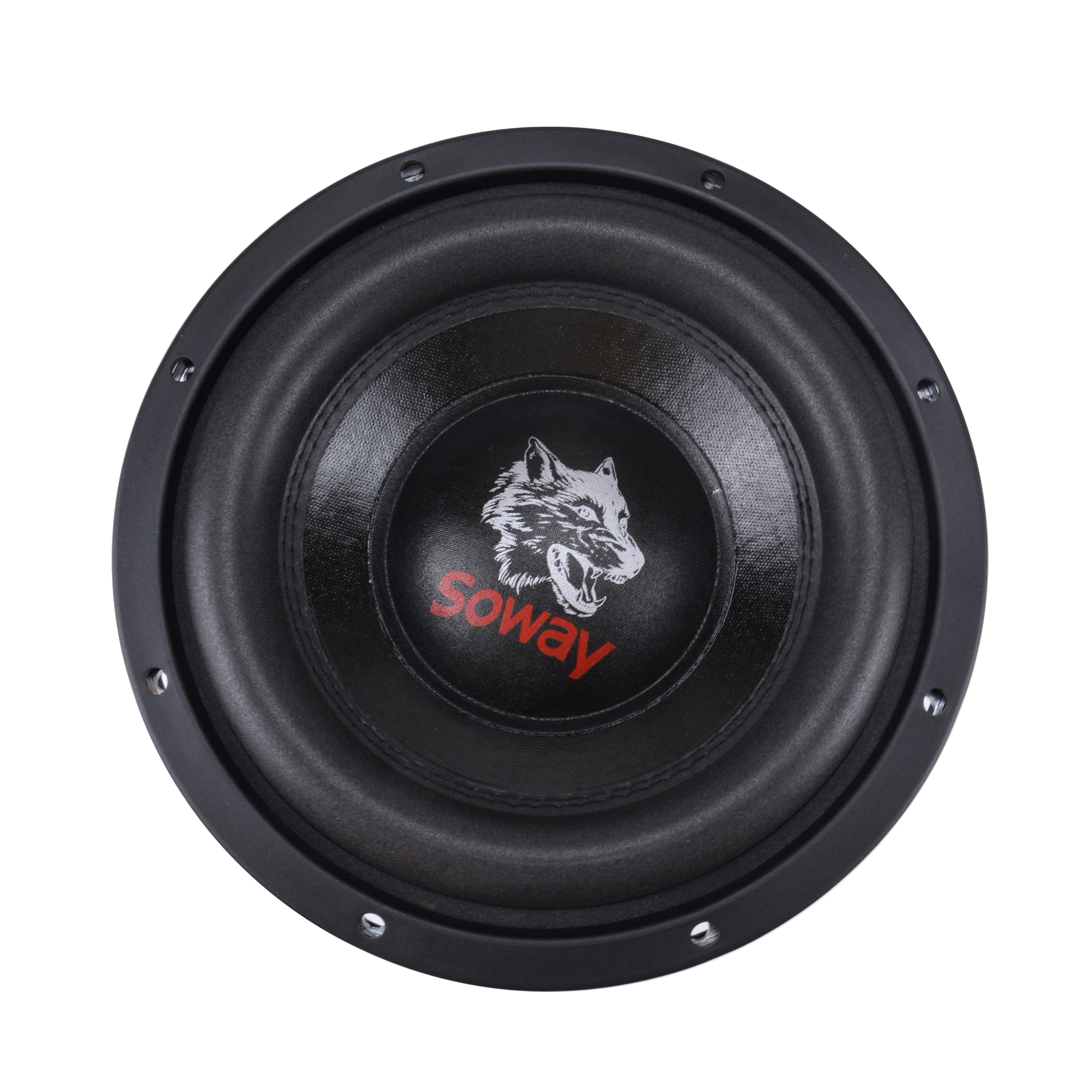

FOAM EDGE ALUMINUM BASIN FRAME BASS
|
|
|||
|
SENSITIVITY
|
|
|
88DB
|
|
|||
|
FREQUENCY RESP
|
|
|
50HZ-2000HZ
|
|
|||
|
VIOCE COIL DIAMETER
|
|
|
60.5
|
|
|||
|
SURROUND MATERIAL
|
|
|
FOAM EDGE
|
|
|||
|
ONE-WAY LINEAR EXCURSION (XMAX) *
|
|
|
0.34IN/8.5MM
|
|
|||
|
SURROUND DESIGN
|
|
|
SEMICIRCLE
|
|
|||
|
MAGNET
|
|
|
FERRITE
|
|
|||
|
VIOCE COIL DIAMETER
|
|
|
60.5
|
|
|||
|
WIN DING MATERIAL
|
|
|
EISV
|
|
|||
|
WINDING DEPTH
|
|
|
25MM
|
|
|||
