Quick Details
-
Brand Name:
-
welldone
-
Model Number:
-
WDFMC-50-1
-
Certification:
-
CE
Quick Details
-
Type:
-
Variable Area Oil Flowmeters
-
Warranty:
-
12 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
welldone
-
Model Number:
-
WDFMC-50-1
-
Certification:
-
CE

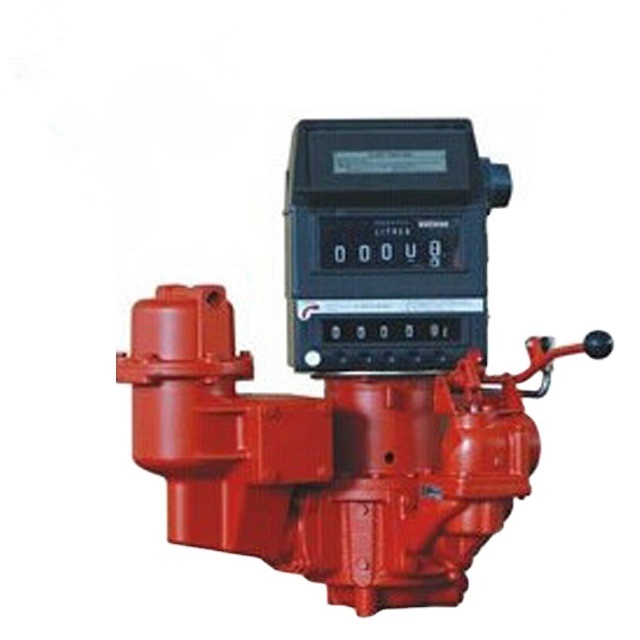

with mechnical register,printer,air eliminator and strainer
HAS PASSED 'CE' CERTIFICATION
Advantage
FMC Series PD rotary vane meters are single case,angle-type,rotary vane,positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact,versatile design can be readily fit into nearly all installations.
Low pressure loss ,a true gravity flow meter
Long service life,low friction ball bearings,fixed cam-type shaft construction give sustained accuracy and long time operation
|
Model |
WDFMC-50 |
WDFMC-80 |
WDFMC-100 |
|
Size |
50MM/ 2 ” |
80MM/3 ” |
100MM/4 ” |
|
Flow rate range |
38-380L/min |
75-750L/min |
150-1500L/min |
|
Max. Working Pressure |
10Bar/150PSI |
||
|
Accuracy |
± 0.2% |
||
|
Repeatability |
≤ 0.07% |
||
Construction
Application:
Application includes:blending,batching,dispensing,inventory control, and
Transfering of oils,solvents,chemicals,paints,fertilizer,etc.
