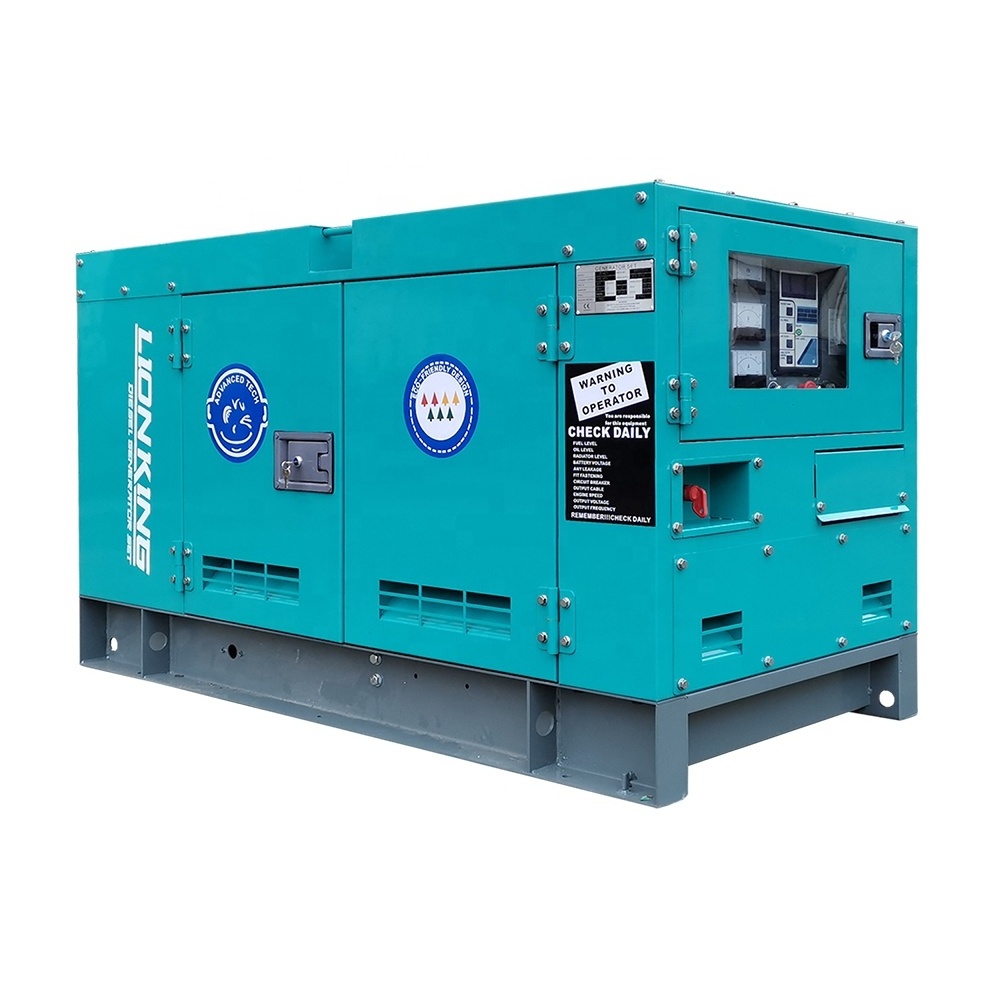

10kva 15kva 20kva 30kva Denyo type Yangdong Silent Diesel Generator

10kva 15kva 20kva 30kva Denyo type Yangdong Silent Diesel Generator

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

≥5 Sets

US $2900

≥10 Sets

US $2800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1year

Place of Origin:: Fujian, China

Brand Name:: JLT POWER

Model Number:: JY-20/S

Speed:: 1500RPM

Weight:: 750kg

Type:: Soundproof Canopy(Silent)

Cooling method:: Water Cooled Method

Alternator:: JLT Alternator

Controller:: Smartgen HGM6110N

Fuel Consumption:: 246g/kw.h

Fuel Tank:: 44L

Options:: Automatic Transfer Switch

Application:: House

Color:: Orange

Noise:: 68-72dB

Certification:: ISO 9001 2015, OHSAS 18001 2007

Quick Details

Rated Voltage:: 220/380V

Rated Current:: 30A

Frequency:: 50Hz

Warranty:: 1year

Place of Origin:: Fujian, China

Brand Name:: JLT POWER

Model Number:: JY-20/S

Speed:: 1500RPM

Weight:: 750kg

Type:: Soundproof Canopy(Silent)

Cooling method:: Water Cooled Method

Alternator:: JLT Alternator

Controller:: Smartgen HGM6110N

Fuel Consumption:: 246g/kw.h

Fuel Tank:: 44L

Options:: Automatic Transfer Switch

Application:: House

Color:: Orange

Noise:: 68-72dB

Certification:: ISO 9001 2015, OHSAS 18001 2007

Products Description

GENSET MODEL	JY-20/S
Prime power (kW/kVA)	16/20
Standby power (kW/kVA)	18/22
Frequency (Hz)	50
Voltage (V)	220/380,230/400,240/415
Rated current (A)	30//29/28
Power factor	0.8
Ambient temperature (°C)	40
Altitude (m)	1000
ENGINE MANUFACTURER	YANGDONG
Engine Model	YSD490D
Rated Power (kW)	21
No. of cylinders & configuration	In-Line 4 cylinders
Method of operation	4 Stroke
Speed regulation	Mechanical Governor
Cooling method	Closed-circuit cooling system
Total displacement (L)	2.417
Compression ratio	18:01
Bore×Stroke (mm)	90*95
100% Load fuel consumption (L/h)	5.5
ALTERNATOR MANUFACTURER	JLT-POWER
Number of Phase	Three Phase
Power Factor	0.8
Protection Grade	IP21/IP23
Winding/ Pitch	100% Copper 2/3 Pitch
Cooling Fan	Cast alloy aluminum
Exciter Type	Brushless, Self-Exciting
Insulation Class, Temperature Rise	H/H
Telephone Influence Factor( TIF)	TIF ＜5% / THF ＜2%
Total Harmonic TGH/THC	＜1.5% no load / ＜5% on load
Voltage Regulation, Steady State	≤+-1%
Sustained Short-Circuit Current	300% （3in）:10s
Control System	Smartgen HGM6110N
ATS	Optional

Related Products

Company Introduction

JLT POWER

Fujian Jinlongteng Power Engine & Machinery Co.,Ltd. is a highly professional and experienced manufacturer of engines, generators and water pumps. We have specialized in this field over 10years and always dedicated to produce the engines, generators and water pumps in high quality with reasonable prices.

Our products include:

1, Portable Gasoline Engine: 5.5Hp, 7.0Hp, 13.0Hp and 15.0Hp.

2, Portable Diesel Engine: 4.0Hp, 6.0Hp, 10Hp, 12Hp and 15.0Hp.

3, Portable Gasoline Generators: 0.65kW - 10kW
4, Portable Diesel Generators: 2.0kW - 8.0kW.

5, Water cooled diesel generators, With power range from 10kVA to 1500kVA.

Why Choose Us:
1, Since 2000, with over 10years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4,Own design team, can help you custom the packaging.

We are a professional manufacturer for engines, generators and water pumps withintegrating development, production and sales. Factory located in one of the early open cities -Fuzhou, with more than 100,000square meters.Warmly welcome all partners to join us for mutual benefits cooperation.

Details Images

Packing&Shipping

After Sales Service

(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.

Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
