Kjeldahl Nitrogen Analyzer Kjeldahl Digestion Apparatus

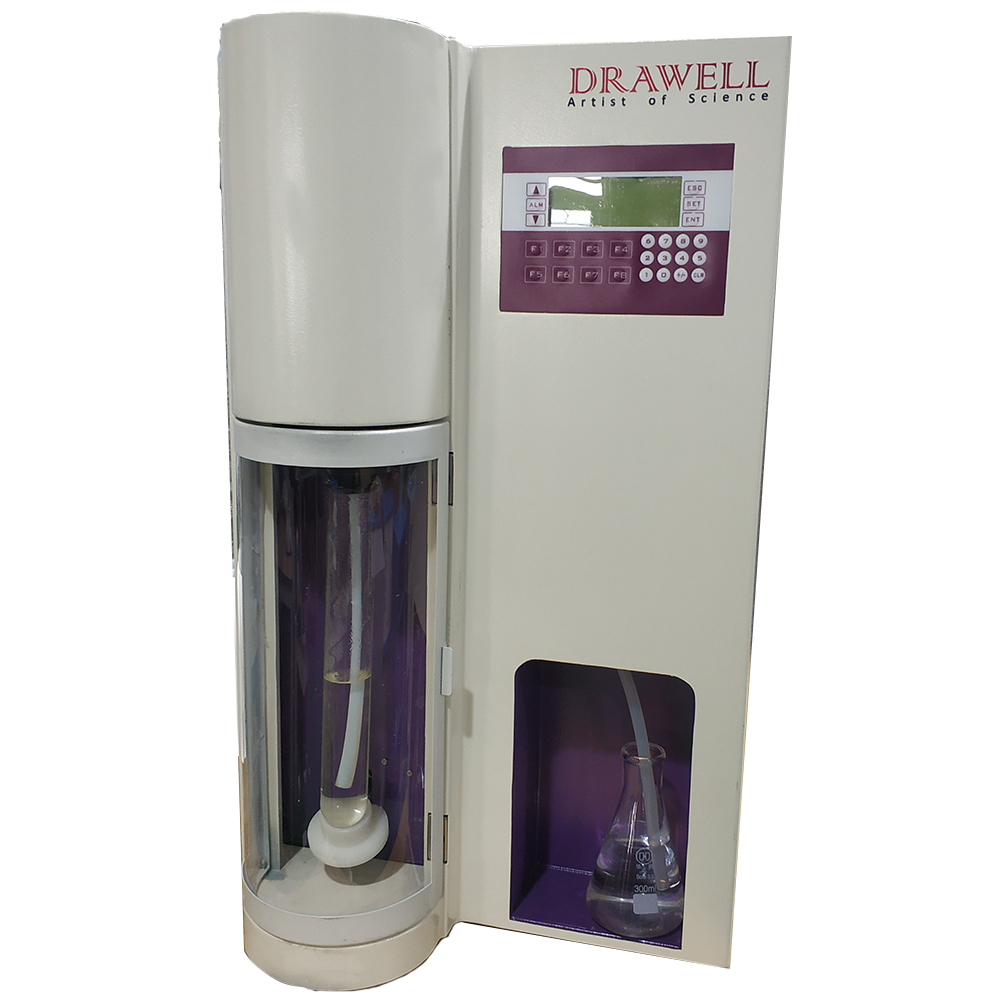

ATN- 3 00 A uto matic A zotometer

O ur company’ s ATN-300 automatic azotometer(protein determinator) is designed in accordance with the Kjeldahl method , mainly for assay ing the content of ammonia nitrogen, protein nitrogen in cereals, food, dairy products, beverage s, feed, soil, water, medicine, sediment and chemicals. The dete rmination conforms to national standard, AOAC, ISO, etc.

Features:

1. for solution setting, volume of boric acid solution , the amount of alkali and distillation time can be set up at random

2. 20 groups of experimental procedures can be stored to meet user’s various requirement s

3. perfect protection system: remind when digestion tube is not in place, protect steamer furnace from being overheated or over-voltage; alarm when distillation is finished

4. manual and auto, two modes for customer to shift

Technical parameters:

1. material s: cereals, food, dairy products, beverage s, feed, soil, water, medicine, sediment

and chemicals;

2. range: 0.1mgN ~ 240mgN( nitrogen content 0.02% ~ 95% );

3. sample quantity: solid ≤5g/ unit, liqu id ≤15ml/ unit

4. r ecover y : ≥ 99.5% ;

5. repeatability: ≤ ±1% ;

6. d istillation rate : 3 ~ 7 min / sample;

7. cooling water consumption:1L-2 L/ min;

8. power: 220V 50Hz ;

9. power rating:16 00W ;

10. external dimension: 775×380×330mm ;

11. weight: 28kg

o ptional digestion furnace for ATN-300 automatic azotometer

KDN-D series digital-display temperature - control lable digestion furnace have models of 4 holes, 8 holes, 12 holes and 20 holes for user to choose, depending on their detection amount. SO ₂ and other poisonous gas escaping from digestion furnace will be discharged by relevant waste gas absorption system , guaranteeing the safety and cleanness of your lab.
