Quick Details
-
Model Number:
-
DSV-GV08
-
Brand Name:
-
DSV
-
Product name:
-
Flange Type Bellow Seal WCB API 4 Inch Cast Steel Globe Valve
-
Standard:
-
EN 13789(DIN 3356)
-
Certificate:
-
ISO9001 CE
-
Pressure:
-
Low pressure
-
MOQ:
-
1 Piece
-
Feature:
-
No leakage
-
Body material:
-
WCB
-
Connection:
-
Flange Ends
-
Medium:
-
Base Oil Water Gas
-
Keyword:
-
globe valve
Quick Details
-
Port Size:
-
DN15-DN300
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
DSV-GV08
-
Brand Name:
-
DSV
-
Product name:
-
Flange Type Bellow Seal WCB API 4 Inch Cast Steel Globe Valve
-
Standard:
-
EN 13789(DIN 3356)
-
Certificate:
-
ISO9001 CE
-
Pressure:
-
Low pressure
-
MOQ:
-
1 Piece
-
Feature:
-
No leakage
-
Body material:
-
WCB
-
Connection:
-
Flange Ends
-
Medium:
-
Base Oil Water Gas
-
Keyword:
-
globe valve

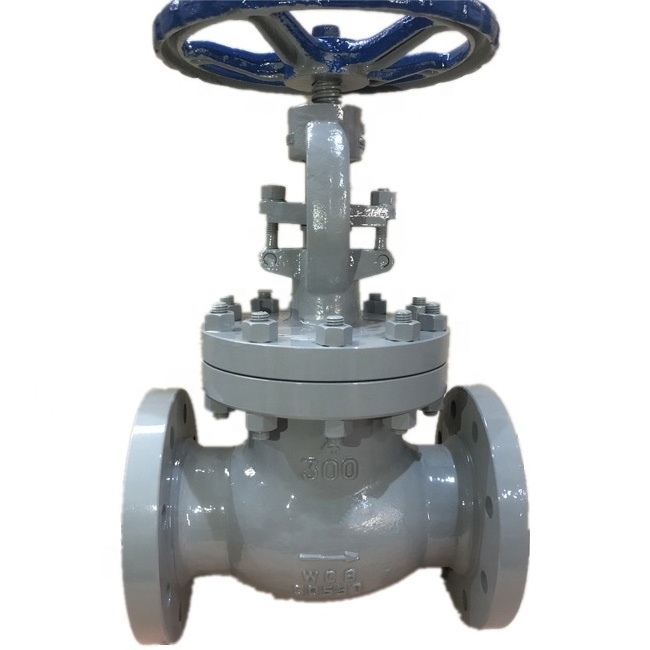

Flange Type Bellow Seal WCB API 4 Inch Cast Steel Globe Valve
Product Description
1.Design and Manufacture according to DIN3356.
2.Face to Face according to DIN3202
3.Flange End Connection(RF) according to DIN2543-2545
4.Inspection and Test according to DIN3230.
5.Nominal Pressure: PN16/25/40/64/100.
6.Working Temperature: -29~+425℃
7.Meduim: Water, Oli, Gas, etc.
|
11
|
Handle wheel
|
Ductile iron
|
|
10
|
Nut on stem
|
Copper alloy
|
|
9
|
Packing gland
|
A216 WCB
|
|
8
|
Packing
|
Flexible Graphite
|
|
7
|
Stem
|
2Cr13
|
|
6
|
Nut
|
35#
|
|
5
|
Bolt
|
45#
|
|
4
|
Bonnet
|
A216 WCB
|
|
3
|
Gasket
|
304+Graphite
|
|
2
|
Disc
|
A105+13Cr
|
|
1
|
Body
|
A216 WCB
|
|
No.
|
Part name
|
Material
|
|
DN(mm)
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
L
|
230
|
290
|
310
|
350
|
400
|
480
|
600
|
650
|
750
|
|
H
|
350
|
400
|
355
|
415
|
460
|
510
|
710
|
789
|
925
|
|
D0
|
240
|
280
|
280
|
320
|
3.6
|
400
|
400
|
450
|
500
|
|
WT(kg)
|
20
|
25
|
35
|
50
|
75
|
100
|
210
|
446
|
648
|
Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
