Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Car Model:
-
caravans/motorhomes/trailers/campervans
-
Rated Voltage:
-
12V
-
Average Power Consumption:
-
1.8-4 A
-
Working (Environment):
-
-25℃~+80℃
-
Water Tank Capacity:
-
10L
-
Protection level:
-
IP21
-
Warm Air Delivery Volume m3/h:
-
287max
-
Fuel:
-
Diesel /Gasoline /GAS
-
Rated Electric Supply Voltage:
-
220V/110V
-
Certification:
-
CE
Quick Details
-
OE NO.:
-
OEM
-
Reference NO.:
-
Truma combi
-
Size:
-
510*450*300mm
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Car Model:
-
caravans/motorhomes/trailers/campervans
-
Rated Voltage:
-
12V
-
Average Power Consumption:
-
1.8-4 A
-
Working (Environment):
-
-25℃~+80℃
-
Water Tank Capacity:
-
10L
-
Protection level:
-
IP21
-
Warm Air Delivery Volume m3/h:
-
287max
-
Fuel:
-
Diesel /Gasoline /GAS
-
Rated Electric Supply Voltage:
-
220V/110V
-
Certification:
-
CE
Product Description
Specification
|
Size
|
510*450*300mm
|
Warranty
|
2years
|
||
|
Rated Voltage
|
DC 12V +（100v/220v）
|
Certification
|
CE
|
||
|
Product Size
|
510*450*300mm
|
Operating altitude
|
5000m
|
||
|
Working temperature
|
-25℃~+80℃
|
Product Net weight
|
15.6Kg
|
||
|
Water capacity
|
10L
|
Fuel
|
Diesel
|
||
|
Applicable vehicle
|
Trucks, Construction Vehicles, Buses, Motor Homes, Agricultural Vehicles, Diesel Vehicles, Etc.
|
|
|
||
Packing & Delivery
Function：

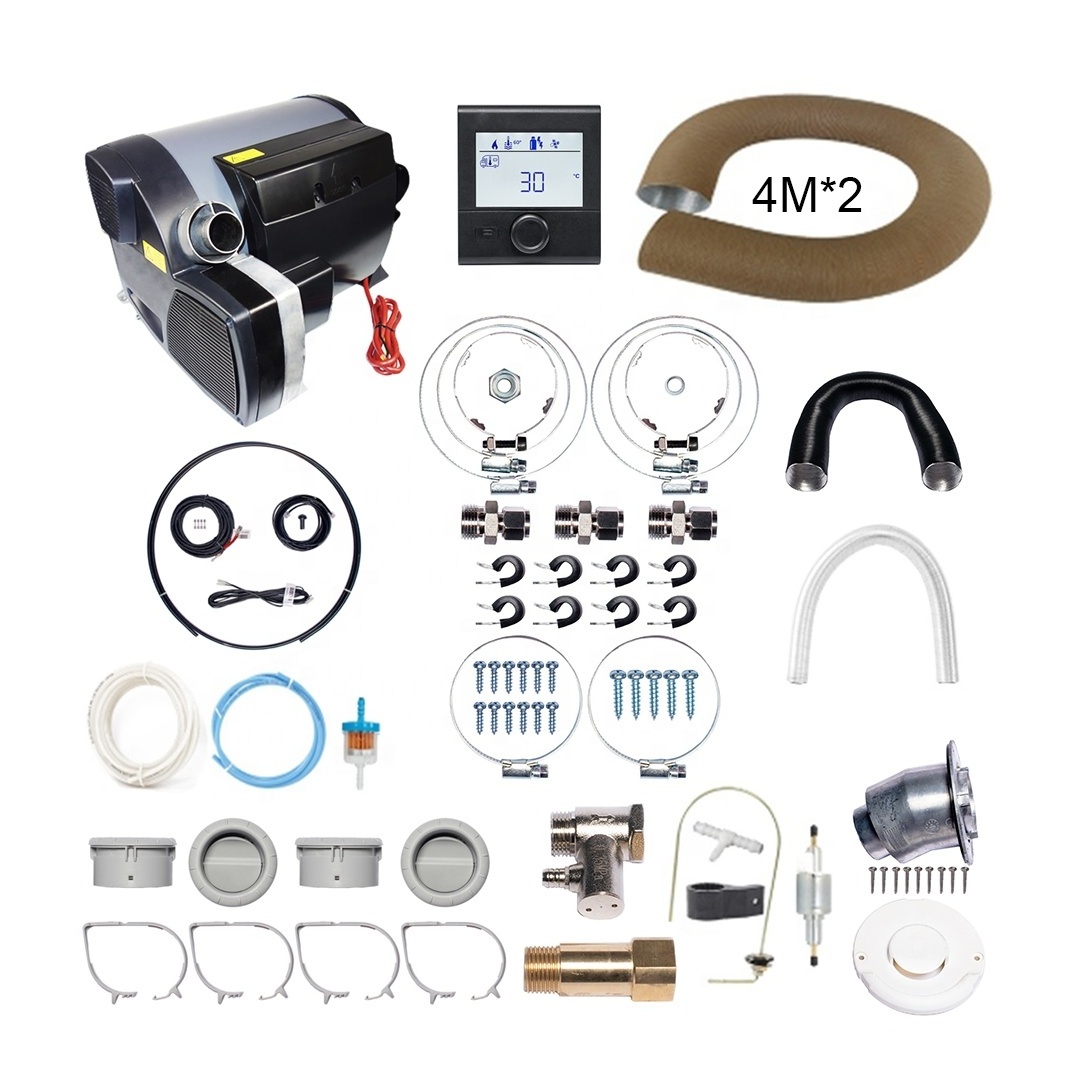

The heater is a hot water and warm air integrated machine, which can provide domestic hot water while heating the
occupants. This heater allows use during driving. This heater also has the function of using local electricity heating.
In hot water warm air work mode, this heater can be used to heat both the room and the hot water. If only hot water is needed,please choose hot water working mode. When the ambient temperature is below 3°C, please empty the water in the water tank to prevent freezing of the water tank.
occupants. This heater allows use during driving. This heater also has the function of using local electricity heating.
In hot water warm air work mode, this heater can be used to heat both the room and the hot water. If only hot water is needed,please choose hot water working mode. When the ambient temperature is below 3°C, please empty the water in the water tank to prevent freezing of the water tank.
There are three energy options to choose from:
Diesel Mode
Heater automatic adjust the power.
Electrical Mode
Manually select the 900W or 1800W heating mode according to the power supply capacity of the RV camp site.
Hybrid Mode
When the power demand is low (for example, maintaining the room temperature stage), the electrical heating is preferred. Until the city electricity cannot meet, the diesel heating is started, and the diesel heating function is turned off first in the power adjustment phase. In hot water working mode，gas mode or electrical mode is used to heat the tank。The tank
temperature can be set to 40°C or 60°C.
temperature can be set to 40°C or 60°C.
Diesel Mode
The heater operates at the lowest power. Stop heating immediately after reaching the set temperature.
Electrical Mode
Manually select the 900W or 1800W heating mode according to the power supply capacity of the camp site.
Product Installation
Safety work environment
-- The device can only be operated with appropriate control panels and accessories
--Danger of toxic exhaust fumes.The heater’s exhaust can be toxic in enclosed spaces(e.g.garages,workshops).If the vehicle is parked in closed rooms:Shut off the fuel supply to the heater、Deactivate the time switch、Switch off the heater at the control panel.
--If the cowl has been placed near or directly beneath an opening window,the appliance must be equipped with an automatic shut-off device in order to prevent operation with the window open.
--Heat sensitive objects(e.g.spray cans)or flammable materials/liquids must not be stored in the same compartment where the appliance is installed because nunder certain conditions,this area may be subject to elevated temperatures.
--The openings for circulated air intake,the installation compartment and the space around the unit must be
kept free of obstacles so that the unit does not overheat.
kept free of obstacles so that the unit does not overheat.
--Keep the cowl for the exhaust duct and combustion air intake free of contamination(slush,ice,leaves etc.)at all times. Danger from hot surfaces and exhaust gas.Do not touch the area around the wall cowl and do not lean any objects against the wall cowl or the vehicle.
Obligations of the operator/vehicle owner
--The operator is responsible for the water with which the boiler is filled and for its quality.
--The vehicle owner is responsible for correct operation of the appliance.
--Liquid fuel system must comply with the technical and administrative regulations of the respective country of use.The national legislation and regulations must be observed.
--Pressure regulating devices and hoses must be replaced with new ones no more than 10 years after their date of manufacture(every 8 years if used commercially).
--Inspect hose lines regularly and have them replaced if they are broken.
--If the heater is not being used,always drain off the water if there is a risk of frost.NO claims may be made under the warranty for damage caused by frost.
Safe operation
--The flow rate of the pressure regulating equipment must correspond to at least the maximum consumption of all devices installed by the system manufacturer.
--Ensure that the inside of the vehicle is sufficiently ventilated when the unit is started up there may be some smoke and /or smell due to dust or dirt.Especially if it has not been used for a long time.
--Ensure that the inside of the vehicle is sufficiently ventilated when the unit is started up there may be some smoke and /or smell due to dust or dirt.Especially if it has not been used for a long time.
--This appliance can be used by children aged 8 and over,as well as by persons with reduced physical.
--The integrity and tight fit of the exhaust double duct must be checked regularly,particularly at the end of long trips.Also check the mounting of the unit and the cowl.
--When cleaning the vehicle,do not spray water directly into the cowl.
