Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
22mm Acrylic
-
Control Software:
-
Leetro/RuiDa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Gweike
-
Weight (KG):
-
2000 KG
-
Configuration:
-
IPG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser tube:
-
500W
-
control panel:
-
Cypcut
-
contorl software:
-
RuiDa DSP control system
-
driving system:
-
servo
-
warranty:
-
1year
-
color:
-
according to client
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-24,000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
22mm Acrylic
-
Control Software:
-
Leetro/RuiDa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Gweike
-
Weight (KG):
-
2000 KG
-
Configuration:
-
IPG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser tube:
-
500W
-
control panel:
-
Cypcut
-
contorl software:
-
RuiDa DSP control system
-
driving system:
-
servo
-
warranty:
-
1year
-
color:
-
according to client

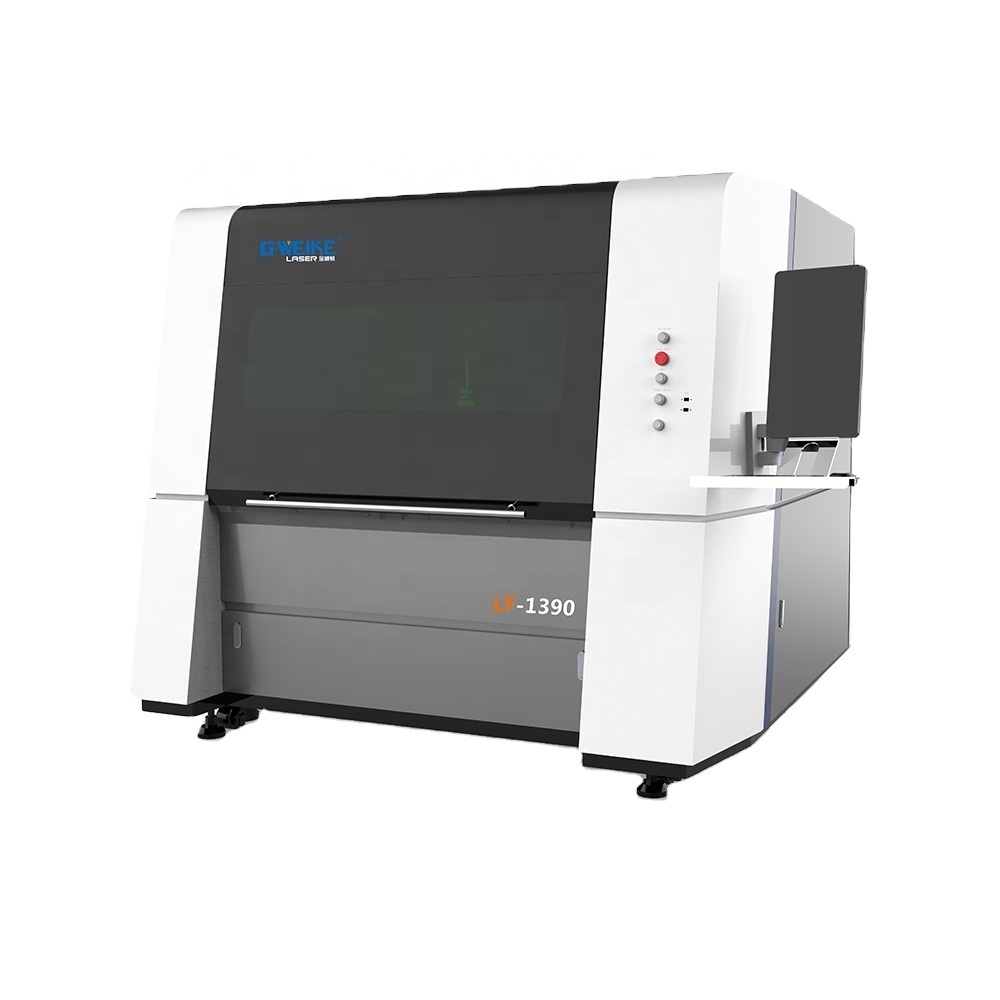

Gweike 500w 1390 mini precision aluminum fiber laser cutting machine price
|
Model |
Gweike 500w 1390 automatic aluminum fiber laser cutting machine |
|
Engraving size |
1300*900MM |
|
Overall dimensions |
2110*2160*1630 |
|
Laser power |
300W/500W/1000W |
|
Engraving speed |
140m/min |
|
Reposition accuracy |
+-0.05mm |
|
Working voltage |
AC110- 220V±10%,50-60Hz |
|
X and Y positioning accuracy |
+-0.05mm |
|
Max acceleration |
1G |
|
Max load-bearing of work table |
500KG |
|
Power consumption of whole machine |
< 15KW (< 12KW-1 KW) |
|
Supported file format |
BMP, HPGL, PLT, DST, DXP, and AI |
|
Driving system |
servo motors |
|
Laser tube cooling type |
Water-cooling or cooling machine and protection system |
|
Transmission mode |
important high precision with double driving rack |
|
Laser control software |
DSP control system |
|
Compatible software |
CorelDraw AutoCAD Photoshop |
|
weight |
1200kgs |
