Quick Details
-
Brand Name:
-
ONV , OEM/ODM accepted
-
Model Number:
-
H3226F
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
network Switch
-
Forwarding Mode:
-
Store and Forward(Full Wire Speed)
-
Switching Capacity:
-
52Gbps (Non-blocking)
-
Forwarding Rate@64byte:
-
38.69Mpps
-
MAC Address Table:
-
8K
-
Buffer Memory:
-
4.1M
-
Power Consumption:
-
Standby<8W, Full Load<20W
-
Operation TEMP / Humidity:
-
-20~+55°C, 5%~90% RH Non condensing
-
Certification:
-
CCC, CE, FCC, RoHS
-
Warranty:
-
1 year
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
52G
-
Brand Name:
-
ONV , OEM/ODM accepted
-
Model Number:
-
H3226F
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
network Switch
-
Forwarding Mode:
-
Store and Forward(Full Wire Speed)
-
Switching Capacity:
-
52Gbps (Non-blocking)
-
Forwarding Rate@64byte:
-
38.69Mpps
-
MAC Address Table:
-
8K
-
Buffer Memory:
-
4.1M
-
Power Consumption:
-
Standby<8W, Full Load<20W
-
Operation TEMP / Humidity:
-
-20~+55°C, 5%~90% RH Non condensing
-
Certification:
-
CCC, CE, FCC, RoHS
-
Warranty:
-
1 year

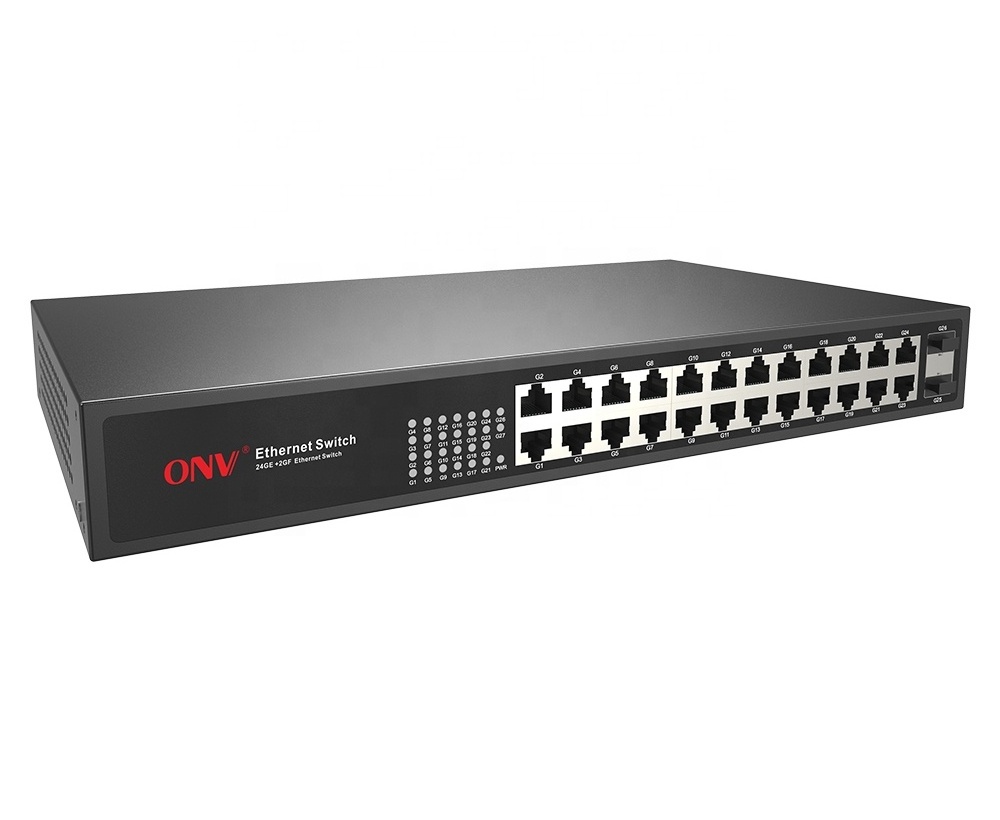

24 Port Switch Gigabit Ethernet Network Switch Unmanaged
26-Port 10/100/1000M Network Switch. 24*10/100/1000M RJ45 Ports + 2*Gigabit Uplink SPF Fiber Ports,Max total power consumption < 20W.
Technical Specification:
|
Product Name |
26-Port 10/100/1000M Network Switch |
|
Model |
ONV-H3226F |
|
Interface |
24*10/100/1000Mbps auto-sensing RJ45 ports + 2*Gigabit SFP Fiber ports (Auto MDI/MDIX) |
|
Network Media |
10Base-T: Cat.3 /4/5 (≤100m) |
|
100BASE-TX: Cat.5 /Above (≤100m) |
|
|
100 0 BASE-TX: UTP Cat.5 e/Above (≤100m) |
|
|
Standard Protocol |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x ,IEEE802.3ab, IEEE802.3z . |
|
Access Control |
CDMA/CD |
|
LED Indicator |
1*power LED, 26 *Link/Act LEDs |
|
Power Consumption |
Max power consumption < 20 W |
|
Power Input |
AC:100~240V ;50-60Hz, 1 A Built-in power supply (DC12V/2A) |
|
Dimension |
312*178*44mm (L*W*H) |
|
Working Environment |
Working Temperature:-20℃~55℃ |
|
Storage Temperature: -40℃~70℃ |
|
|
Working Humidity: 10%~90% Non-condensing |
|
|
Storage Humidity 5%~90% RH(non-condensing) |
|
|
Certification |
CE, FCC, RoHS |
|
Packing List |
1*Fast User Guide & 1*Warranty Card |
|
1* 26-Port Network Switch |
|
|
1*AC Power Cable |
|
|
1* Mounting Kits |
|
|
Warranty |
1 y ear |
ONV-H3226F is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system, etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 24*10/100/1000M auto-sensing RJ45 port . Full-duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand the high-speed network in a fast way.
Housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall-mounted installation way. Mini size and fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR, and IP Camera, etc.
FEATURE
u 24*10/100/1000Mbps auto-sensing RJ45 ports + 2*Gigabit SFP Fiber ports, auto MDI/MDIX.
u IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z.
u 26*Link/Act LEDs, showing the connection status in real-time.
u Support 10/100/1000M auto-negotiation for full-duplex and half-duplex.
u Store and forwarding mode
u Support MAC self-learning and updating
u Support connection with IP Cameras and wireless AP.
u Plug and play, no need more configuration.
u Support desktop/wall-mounted installation.
u Low power consumption design. Energy-saving and green. Max total power consumption < 20W.
TARGET INDUSTRIES
-
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Ethernet telephone transmission, intelligent house, and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Multi-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects
Dimension:
Application
PACKING LIST
|
Packing List |
10/100/1000M 26-Port Network Switch ( ONV-H3226F ) |
|
AC Power Cable |
|
|
User Guide |
|
|
Mounting Kits |
|
|
Warranty Card |
RELATED PRODUCTS
FAQ
1. Why choose us?
We are the first manufacturer in Shenzhen China to produce intelligent PoE Switch, PoE injector, PoE splitter, etc. Our chips are of American military-grade with high stability and high performance. We have our own R&D team as well.
2.What about the after-sales service?
We offer all the solutions to all our products after selling.
3. Are you a manufacturer?
Yes, we have our own factory which floor area is 5000m2 and have 8 offices in China.
4. What's the application of your POE products?
That can fit all the IP camera, IP telephone, or other devices, and non-IP products as well.
